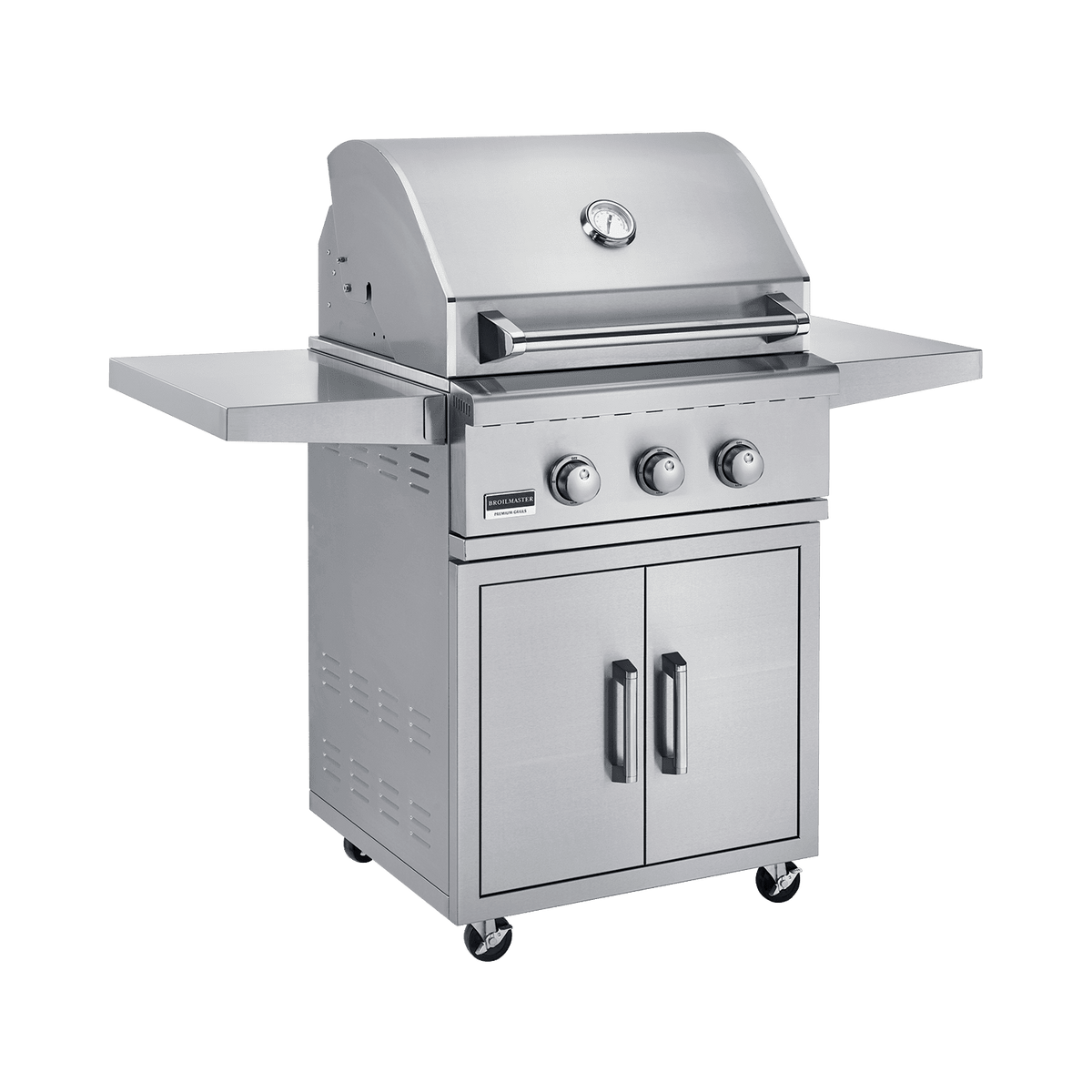

The complete B-Series 25-inch package — the basic grill head on Broilmaster's stainless cart, so it rolls out of the box and onto the patio. 3 stainless tube burners put 42,000 BTU under 544 square inches, and the cart adds double doors, two fixed side shelves and locking casters.
- 3 x 14,000 BTU stainless tube burners — 42,000 BTU under 544 square inches of cooking surface.
- Double-lined hood — holds heat for roasting and indirect work instead of bleeding it out the top.
- Heat zone dividers — run a searing side and a holding side on one grill without the two bleeding together.
- Flare Control vaporizers — drippings turn to smoke above the burners rather than pooling and flaring.
- 8 mm (5/16″) stainless grids, stainless warming rack and a slide-out drip tray that empties without dismantling anything.
- Ships with the opposite-gas conversion kit in the box.
Specifications
| Fuel | Natural Gas |
| Edition | Basic |
| Main burners | 3 x 14,000 BTU stainless tube |
| Total output | 42,000 BTU |
| Cooking surface | 544 sq in |
| Cooking grids | 8 mm (5/16") stainless steel |
| Construction | 304 stainless steel |
| Rotisserie burner | Not fitted on this edition |
| Rotisserie kit | Not available on this edition |
| Control panel / interior lights | Not fitted on this edition |
| Cut-out dimensions | 8-1/2"H x 23-3/4"W x 20-1/2"D |
| Cart | 304 stainless, double doors, two fixed side shelves, locking casters — BSACT25 |
| Weight | 156 lbs |
| Ignition | Flame Thrower |
| Thermometer | Built-in |
| Component SKUs | BSB253NLN grill head + BSACT25 cart |
| Warranty | Limited lifetime rust-through on stainless; 5 yr / 1 yr on listed parts |
What's Included
- B-Series 25-inch basic grill head, natural gas — BSB253NLN
- Broilmaster stainless grill cart — BSACT25
- 8 mm stainless cooking grids, stainless warming rack, Flare Control vaporizers, heat zone dividers
- Slide-out drip tray and built-in thermometer
- Opposite-gas conversion kit
Options On This Page
- Weather cover (BSACV26L, +$124) — black, sized to cover the grill and cart together.
- Low-pressure hose & regulator (B069756, +$27) — needed only on a propane unit run from a 20 lb tank.
Installing into a combustible island? An insulated jacket is required — ask us for BSASL25 ($439). It is not needed for masonry or metal-framed islands.
Documentation
Warranty
Broilmaster's B-Series stainless warranty runs a limited lifetime against rust-through on the stainless housing, cooking grids, cart, cast stainless burners, drip pans, warming rack and built-in components (one-time replacement); 5 years against rust-through on V-grates, flame tamers, heat zone partitions and infrared burners; and 1 year on valves, knobs, ignitors, hoses and fittings. Original purchaser only, non-transferable.
Specifications
| Version | Without Cover / Without Hose/Reg |
|---|---|
| Burners | 3 |
| Version | Without Cover / Add For LP Conversion +$27 |
|---|---|
| Burners | 3 |
| Version | With Cover +$124 / Without Hose/Reg |
|---|---|
| Burners | 3 |
| Version | With Cover +$124 / Add For LP Conversion +$27 |
|---|---|
| Burners | 3 |
