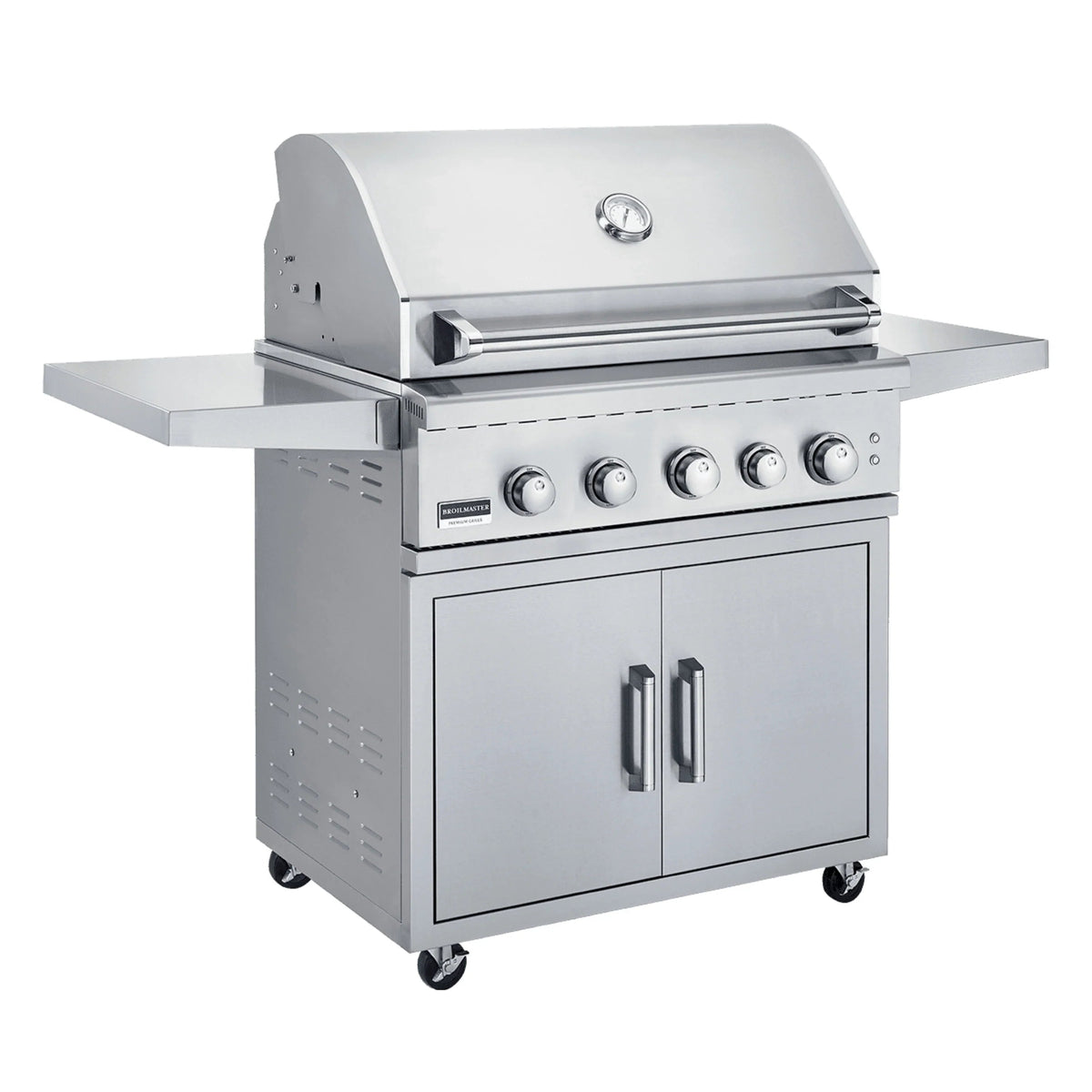

The complete B-Series 32-inch package — the marine grade fully loaded grill head on Broilmaster's stainless cart, so it rolls out of the box and onto the patio. 4 316 cast stainless burners put 56,000 BTU under 690 square inches, and the cart adds double doors, two fixed side shelves and locking casters.
- 316 marine-grade stainless throughout — the alloy specified for salt air, on the housing and the cast burners alike. This is the coastal build.
- 4 x 14,000 BTU 316 cast stainless burners — 56,000 BTU under 690 square inches of cooking surface.
- Double-lined hood — holds heat for roasting and indirect work instead of bleeding it out the top.
- Lit controls and interior work lights — a blue LED control panel plus two 12V halogen lamps inside the hood, standard.
- 14,000 BTU rear infrared rotisserie burner built in — add the BSAMR32 kit and you are spit-roasting.
- Heat zone dividers — run a searing side and a holding side on one grill without the two bleeding together.
- Flare Control vaporizers — drippings turn to smoke above the burners rather than pooling and flaring.
- 8 mm (5/16″) stainless grids, stainless warming rack and a slide-out drip tray that empties without dismantling anything.
- Ships with the opposite-gas conversion kit in the box.
Specifications
| Fuel | Propane |
| Edition | Marine Grade Fully Loaded |
| Main burners | 4 x 14,000 BTU 316 cast stainless |
| Total output | 56,000 BTU |
| Cooking surface | 690 sq in |
| Cooking grids | 8 mm (5/16") stainless steel |
| Construction | 316 marine-grade stainless steel |
| Rotisserie burner | 14,000 BTU rear infrared |
| Rotisserie kit | Optional — BSAMR32 |
| Control panel / interior lights | Blue LED control panel and two 12V halogen interior lights |
| Cut-out dimensions | 8-1/2"H x 31"W x 20-1/2"D |
| Cart | 304 stainless, double doors, two fixed side shelves, locking casters — BSACT32 |
| Ignition | Flame Thrower |
| Thermometer | Built-in |
| Component SKUs | BSB324MGP grill head + BSACT32 cart |
| Warranty | Limited lifetime rust-through on stainless; 5 yr / 1 yr on listed parts |
What's Included
- B-Series 32-inch marine grade fully loaded grill head, propane — BSB324MGP
- Broilmaster stainless grill cart — BSACT32
- 8 mm stainless cooking grids, stainless warming rack, Flare Control vaporizers, heat zone dividers
- Slide-out drip tray and built-in thermometer
- Opposite-gas conversion kit
Options On This Page
- Weather cover (BSACV34L, +$135) — black, sized to cover the grill and cart together.
- Low-pressure hose & regulator (B069756, +$27) — needed only on a propane unit run from a 20 lb tank.
Installing into a combustible island? An insulated jacket is required — ask us for BSASL32 ($459). It is not needed for masonry or metal-framed islands.
Documentation
Warranty
Broilmaster's B-Series stainless warranty runs a limited lifetime against rust-through on the stainless housing, cooking grids, cart, cast stainless burners, drip pans, warming rack and built-in components (one-time replacement); 5 years against rust-through on V-grates, flame tamers, heat zone partitions and infrared burners; and 1 year on valves, knobs, ignitors, hoses and fittings. Original purchaser only, non-transferable.
Specifications
| Version | Without Cover / Without Hose/Reg |
|---|---|
| Burners | 4 |
| Version | Without Cover / With Hose/Reg +$27 |
|---|---|
| Burners | 4 |
| Version | With Cover +$135 / Without Hose/Reg |
|---|---|
| Burners | 4 |
| Version | With Cover +$135 / With Hose/Reg +$27 |
|---|---|
| Burners | 4 |
