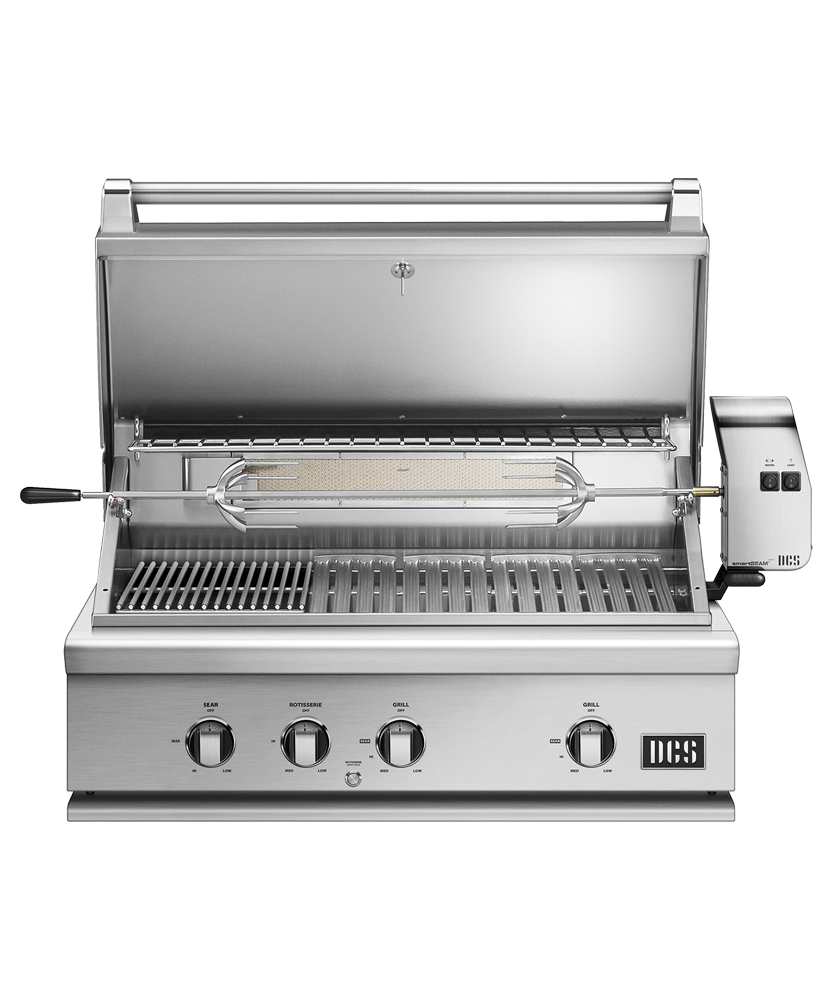

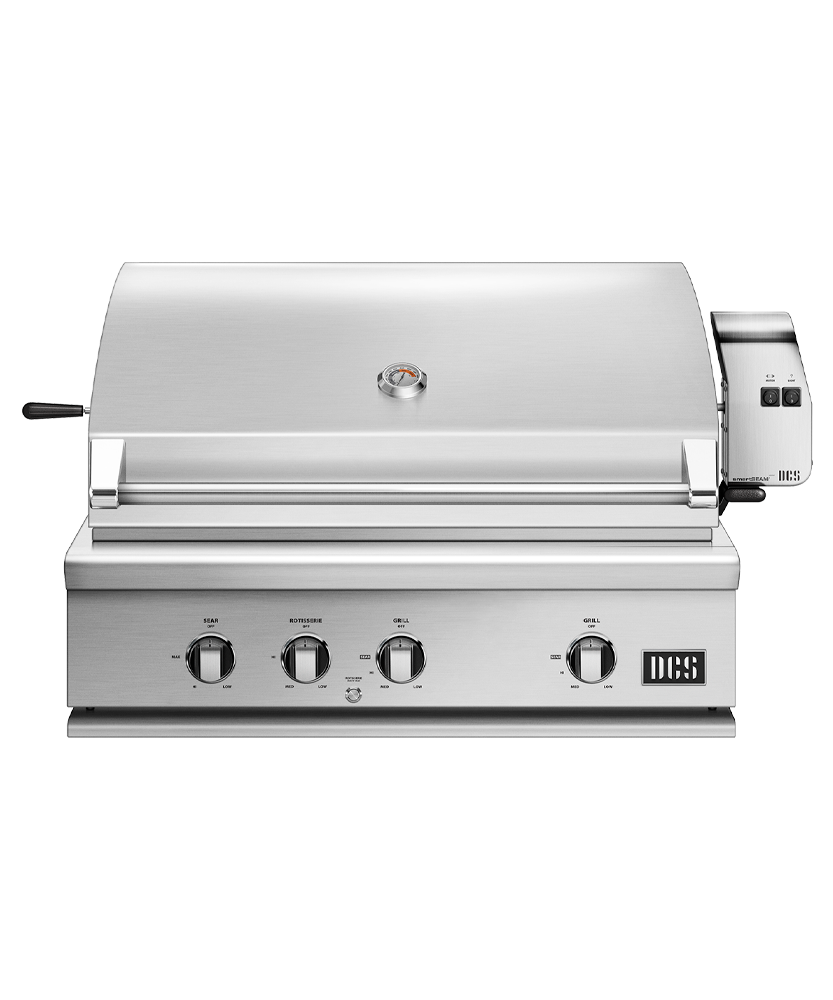

This Series 7 built-in 36" grill is designed for premium outdoor kitchens and will take your outdoor cooking experience to the next level. Infrared sear burner for incredibly fast searing up to 24,000 BTU/hr Cater for a crowd with the secondary cooking surface Build into an outdoor BBQ island, or add a cart for a freestanding grill U-burners deliver 25,000 BTU/hr total power per burner with precise heat control from 300°F to 1100°F Natural gas; connect to gas mains. This model is also available in LPG (model BH1-36RI-L)
| 6" accessory storage | ASH6-36 |
| Built-in grill cover | ACBI-36 |
| Griddle plate | BGC-GP |
| Insulated jacket | BGA36-IJS (optional) |
| Insulated jacket (with storage accessory unit) | BGA42-IJS (optional) |
| On cart grill cover | ACC-36 |
| Optional cart mount | CAD1-36 |
| Number of U-burners | 2 |
| Primary cooking area | 630sq.in. |
| Total cooking area | 871sq.in. |
| Warming rack area | 241sq.in. |
| Ignition system | Spark |
| Material | 304 grade stainless steel |
| Gas type | NG |
| Insulated jacket for proud cut-out | Varies - check manual |

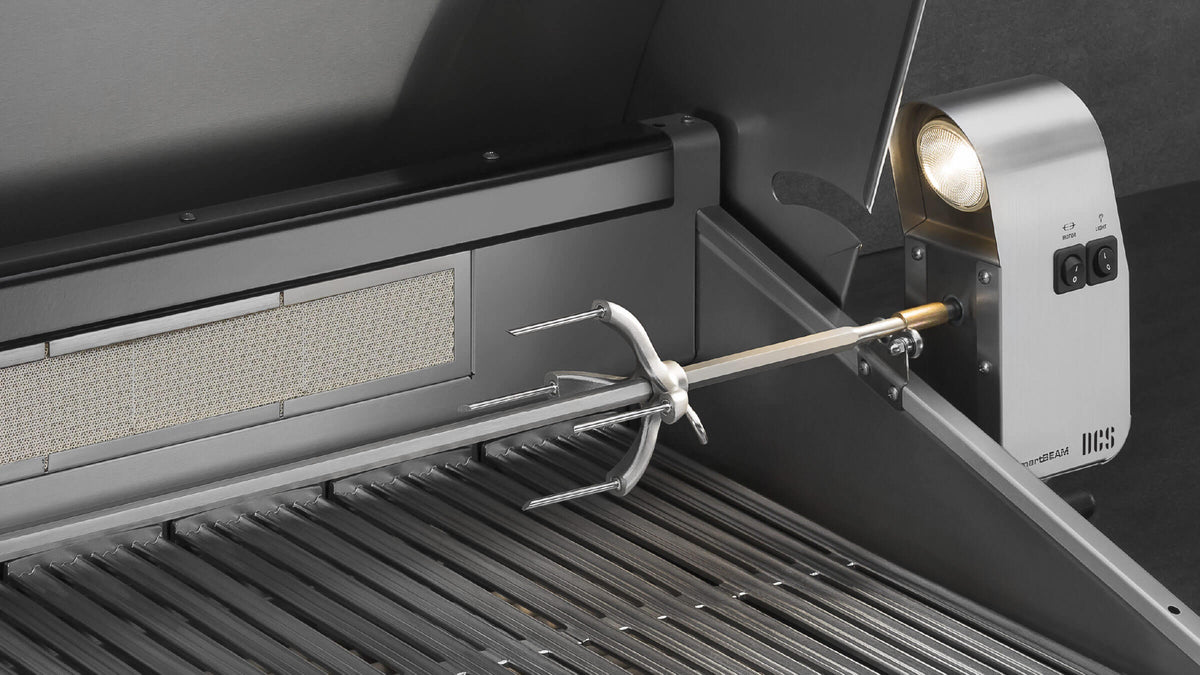

| Rotisserie burner power | 14000 BTU |
| Sear burner power | 24000 BTU |
| Total Power | 88000 BTU |
| U-burner power | 25000 BTU |
| Weight rotisserie can handle | 50lbs |
| Grill power supply | 9V Battery for Ignition |
| Rotisserie power supply | 120V 60Hz |
Built-in or freestanding
Available in natural gas or propane. Order it as a built-in head for your outdoor kitchen, or freestanding on the matching DCS CAD1-36E cart, the COVER CART 36 - ACC-36. Freestanding grills can add one or two CAD1-SK fold-down side shelves.
Specifications
| Version | Natural Gas / Built-in / None |
|---|---|
| Model number | BH1-36RI-N |
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Cutout width (in) | 34.5 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / None |
|---|---|
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Built-in / None |
|---|---|
| Model number | BH1-36RI-L |
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Cutout width (in) | 34.5 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / None |
|---|---|
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 36 |
| Burners | 2 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 871 |
| Total BTU | 88000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
