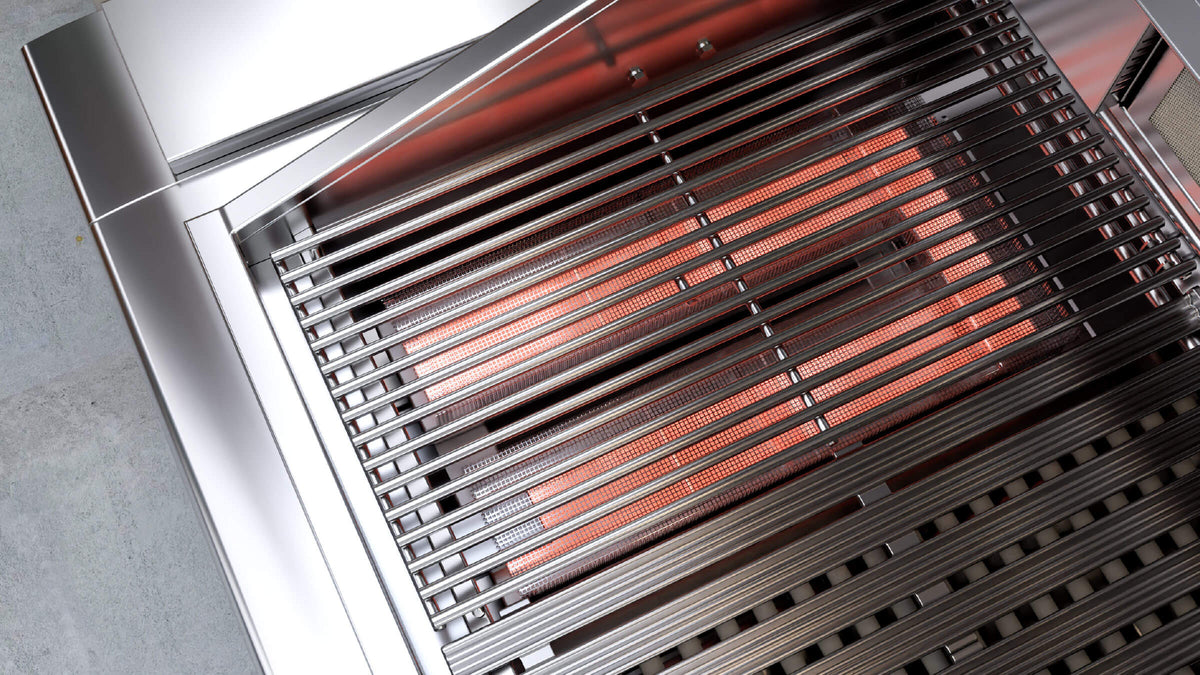

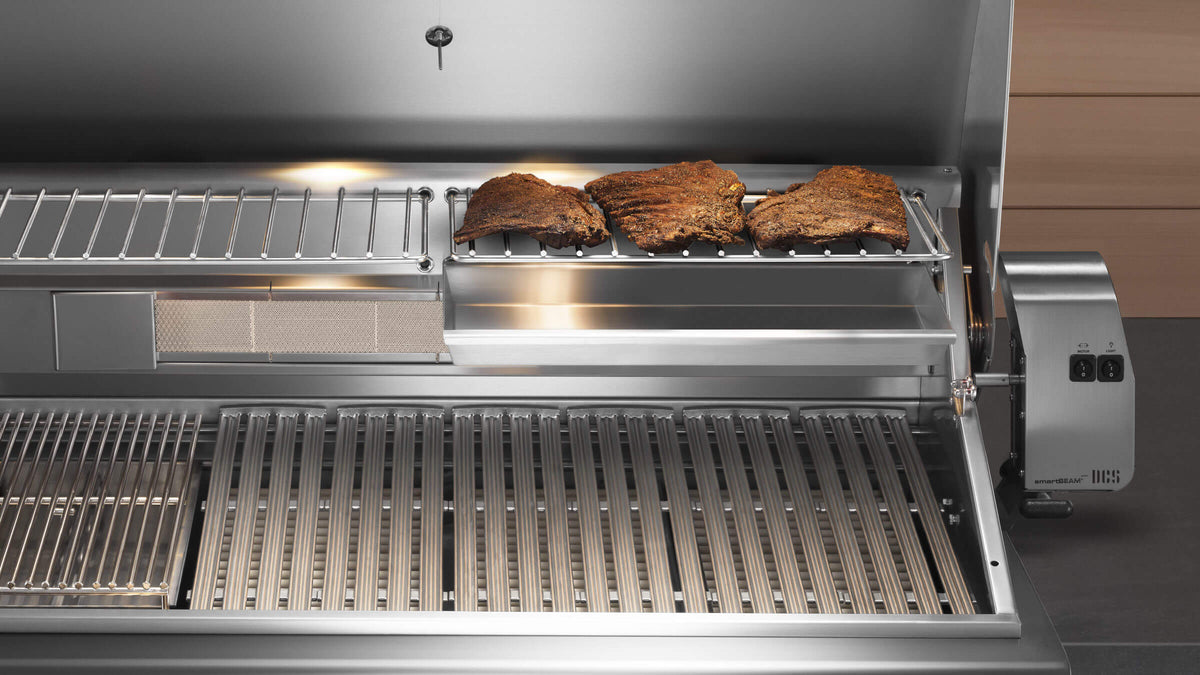

Taking your grilling experience to the next level, this Series 7 built-in 48" grill provides the ultimate grilling space for premium outdoor kitchens. Infrared sear burner for incredibly fast searing up to 24,000 BTU/hr. Cater for a crowd with the secondary cooking surface. Build into an outdoor BBQ island, or add a cart for a freestanding grill. U-burners deliver 25,000 BTU/hr total power per burner with precise heat control from 300°F to 1100°F.
| Number of U-burners | 3 |
| Primary cooking area | 855sq.in. |
| Total cooking area | 1182sq.in. |
| Warming rack area | 327sq.in. |
| Ignition system | Spark |
| Material | 304 grade stainless steel |
| Gas type | NG |
| Insulated jacket for proud cut-out | Varies - check manual |
| Rotisserie burner power | 18000 BTU |
| Sear burner power | 24000 BTU |
| Total Power | 117000 BTU |
| U-burner power | 25000 BTU |

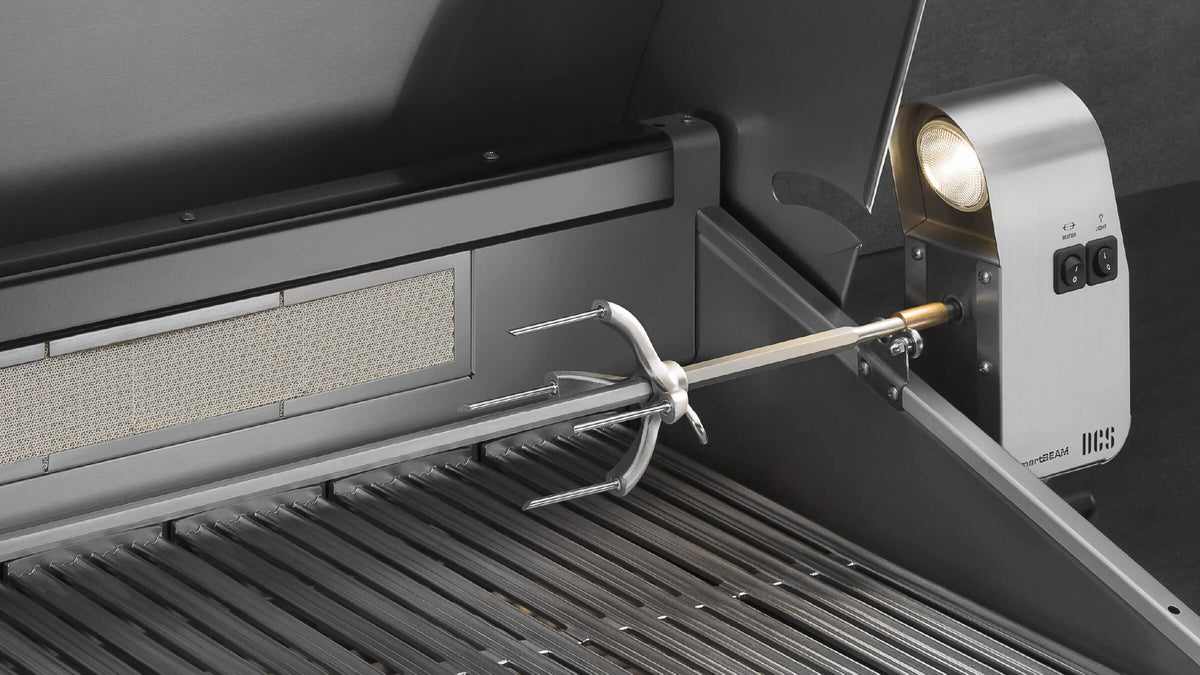

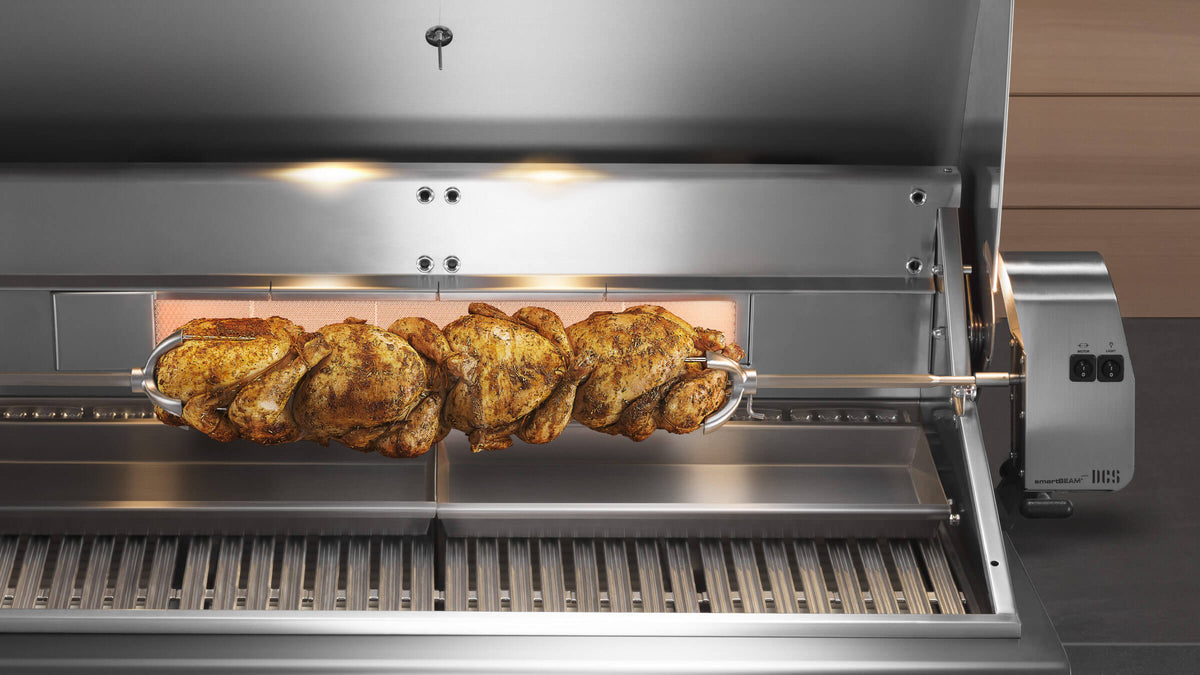

| Weight rotisserie can handle | 50lbs |
| Grill power supply | 9V Battery for Ignition |
| Rotisserie power supply | 120V 60Hz |
| Packaged weight | 348lbs |
Built-in or freestanding
Available in natural gas or propane. Order it as a built-in head for your outdoor kitchen, or freestanding on the matching DCS CAD1-48E cart, the COVER CART 48 ACC-48. Freestanding grills can add one or two CAD1-SK fold-down side shelves.
Specifications
| Version | Natural Gas / Built-in / None |
|---|---|
| Model number | BH1-48RI-N |
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Weight (lb) | 348.0 |
| Version | Natural Gas / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Built-in / None |
|---|---|
| Model number | BH1-48RI-L |
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Weight (lb) | 348.0 |
| Version | Propane / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Material / grade | 304 grade stainless steel |
