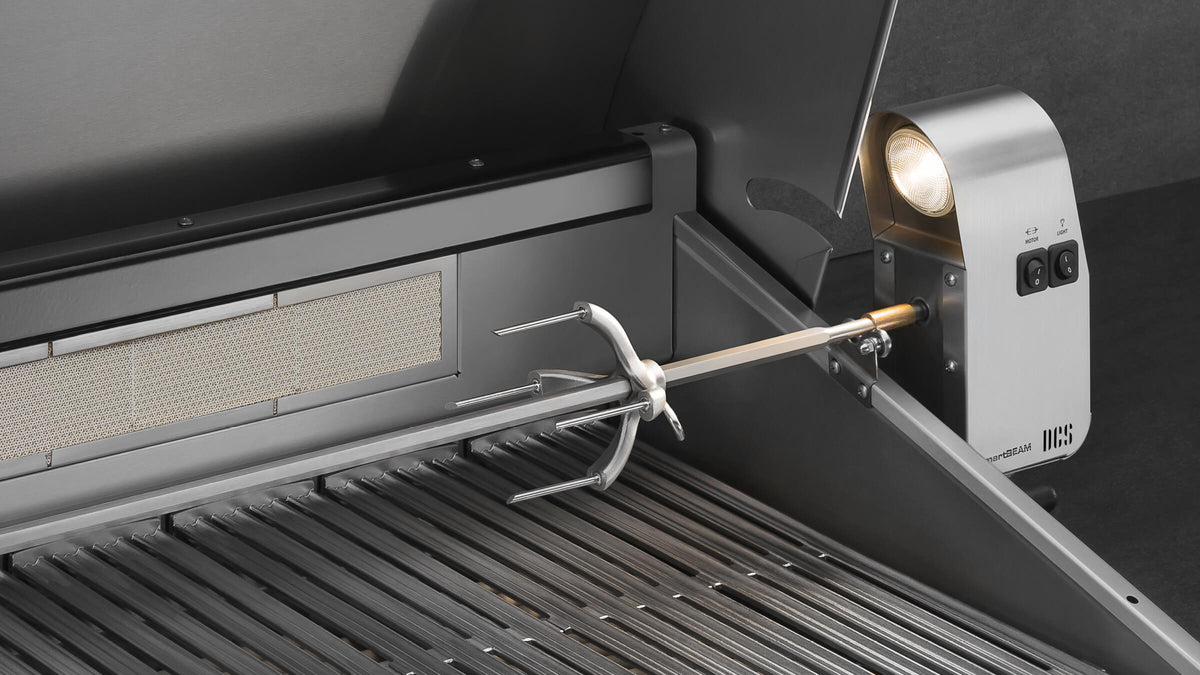

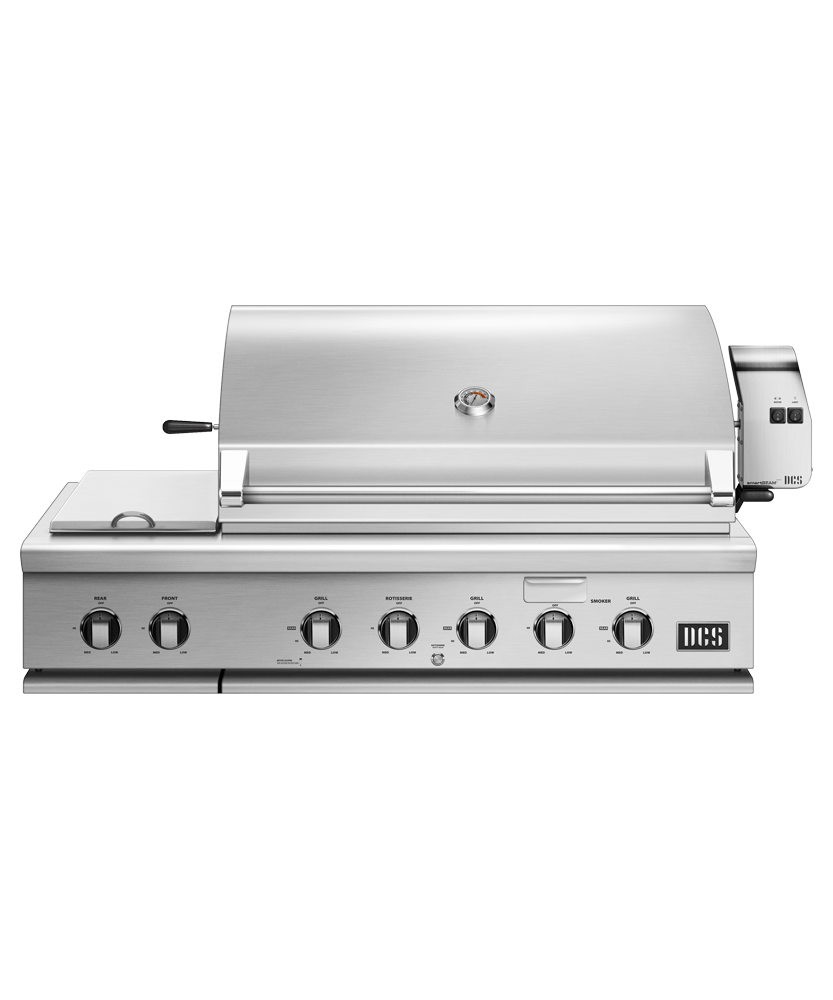

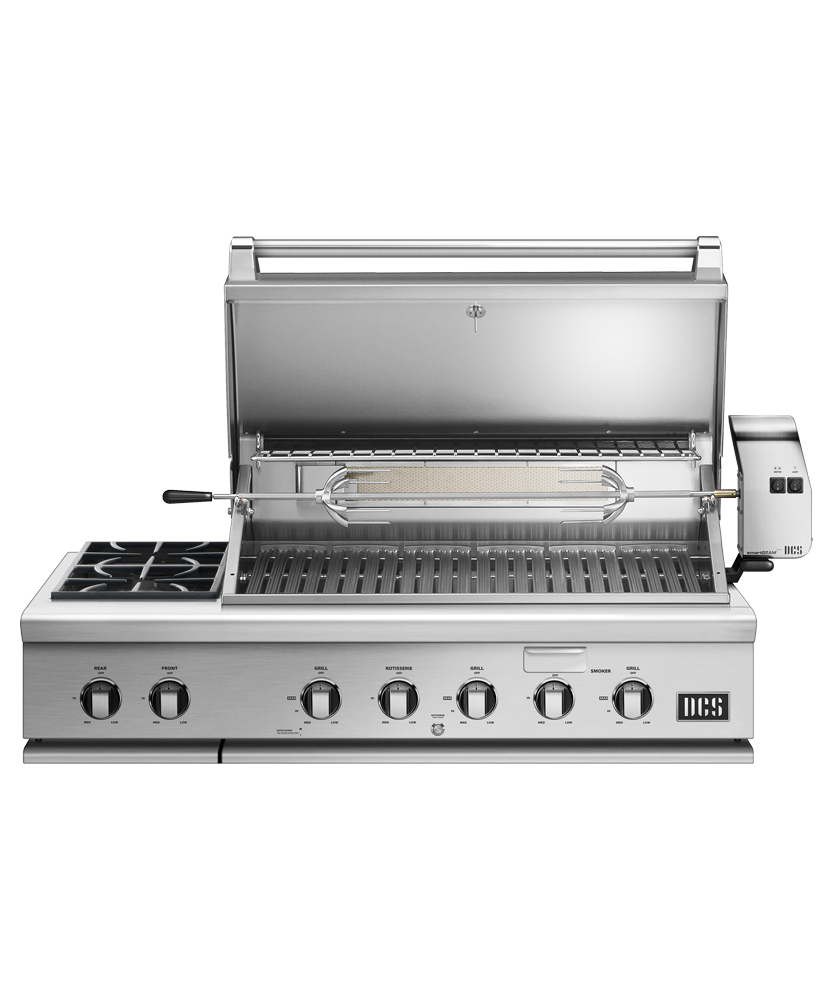

DCS's Series 7 Grill is a 48-inch built-in natural gas grill with an integrated rotisserie and side burners. The cabinet houses three U-burners and two side burners in a 304 grade stainless steel body, with 630 sq in of primary cooking area and 1115 sq in total. Total power reaches 126500 BTU, and the included rotisserie can turn loads up to 50 lbs.

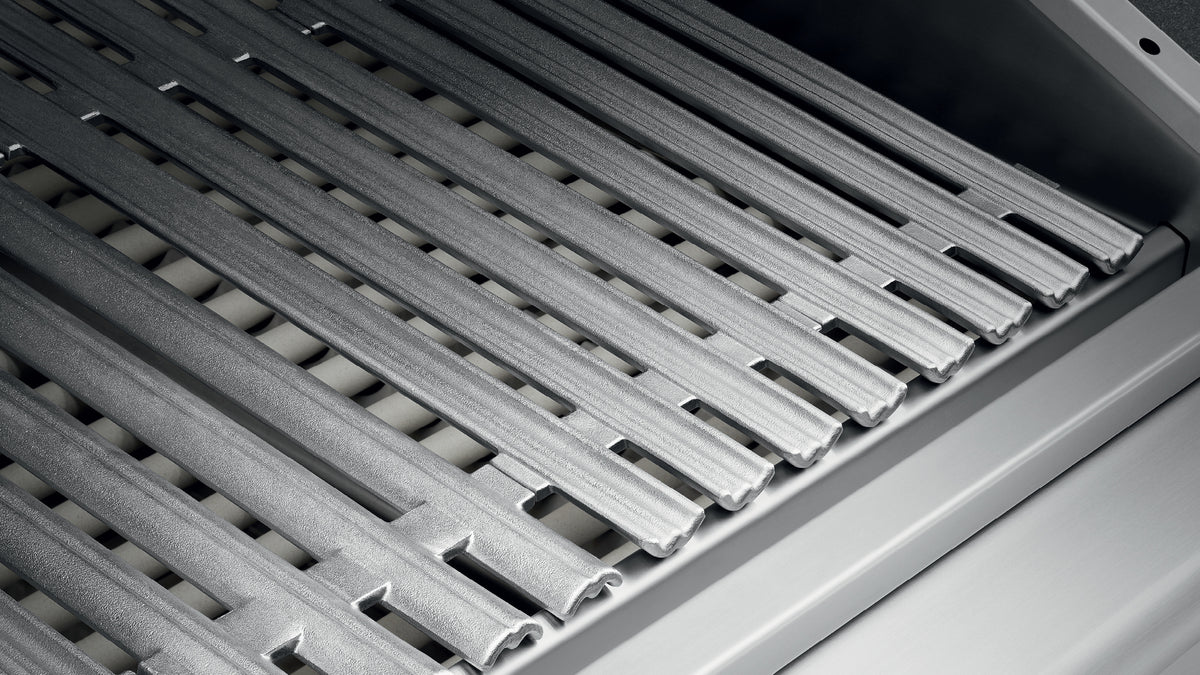

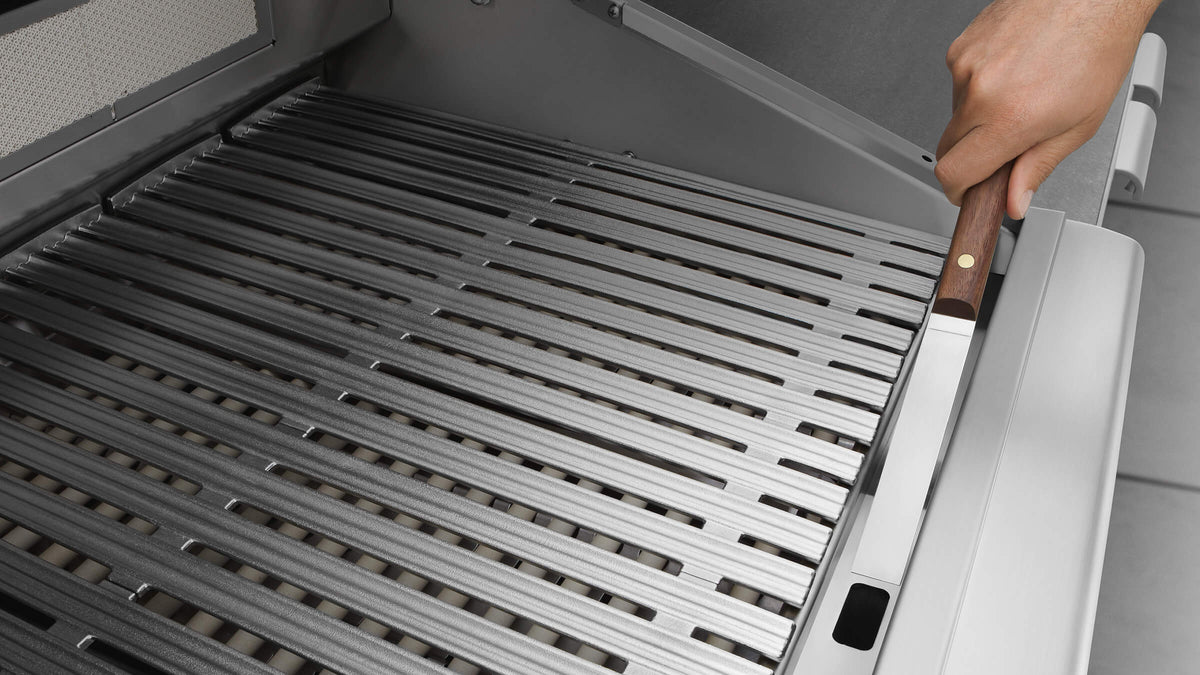

The grill grates are double-sided cast stainless steel, with a curved side suited to delicate foods and a W-shaped side that channels oil into a removable drip tray while creating sear marks. A patented grease management system directs grease and oil away from the burner flames to cut down on flare-ups, and a dedicated smoker tray with its own 3500 BTU burner lets wood chips smolder for added smoke flavor. A halogen Smart Beam light is designed to light the entire cooking surface, and a built-in temperature gauge shows grill temperature even with the hood closed.
A removable warming rack adds 241 sq in of stainless steel space. The main burners light via spark ignition.
- Model BH1-48RS-N
- Cutout: 45.75 in W x 22.75 in D x 10.125 in H
- U-burners 25000 BTU each; side burners 17000 BTU each; rotisserie burner 14000 BTU
- Side burner cooking area: 244 sq in
- 9V battery grill ignition; 120V 60Hz rotisserie power supply
- Also available in LP gas as model BH1-48RS-L
Built-in or freestanding
Available in natural gas or propane. Order it as a built-in head for your outdoor kitchen, or freestanding on the matching DCS CAD1-48E cart, the COVER CART 48 W/SB ACC-48 SB. Freestanding grills can add one or two CAD1-SK fold-down side shelves.
Specifications
| Version | Natural Gas / Built-in / None |
|---|---|
| Model number | BH1-48RS-N |
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Built-in / None |
|---|---|
| Model number | BH1-48RS-L |
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 630 |
| Total cooking area (sq in) | 1115 |
| Total BTU | 126500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
