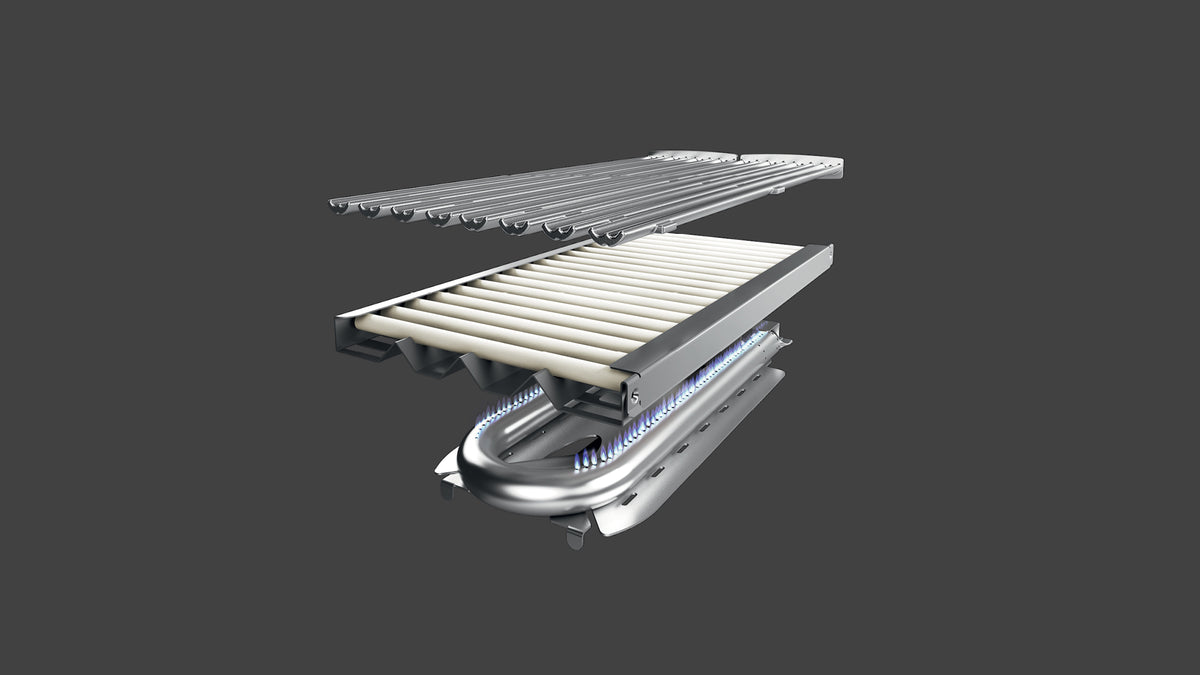

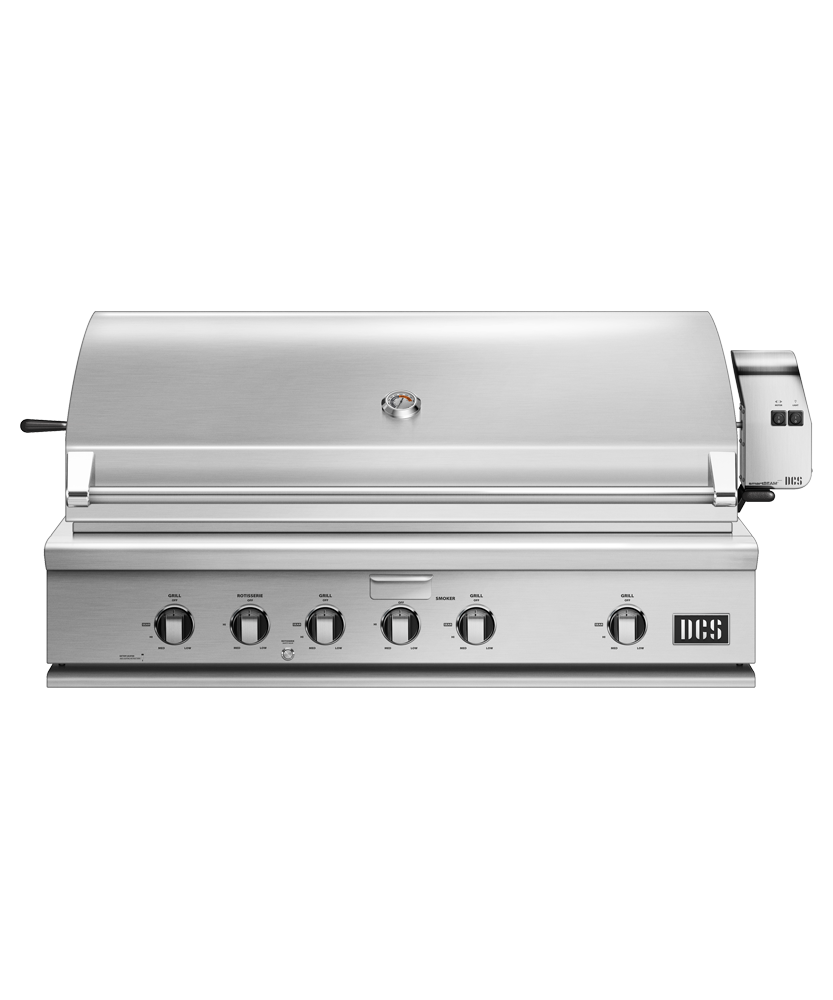

The DCS Series 7 Grill is a 48-inch natural gas grill with a rotisserie. Four U-burners deliver 121500 BTU of total power across 855 sq in of primary cooking area and 1182 sq in of total cooking area, plus a 327 sq in warming rack.

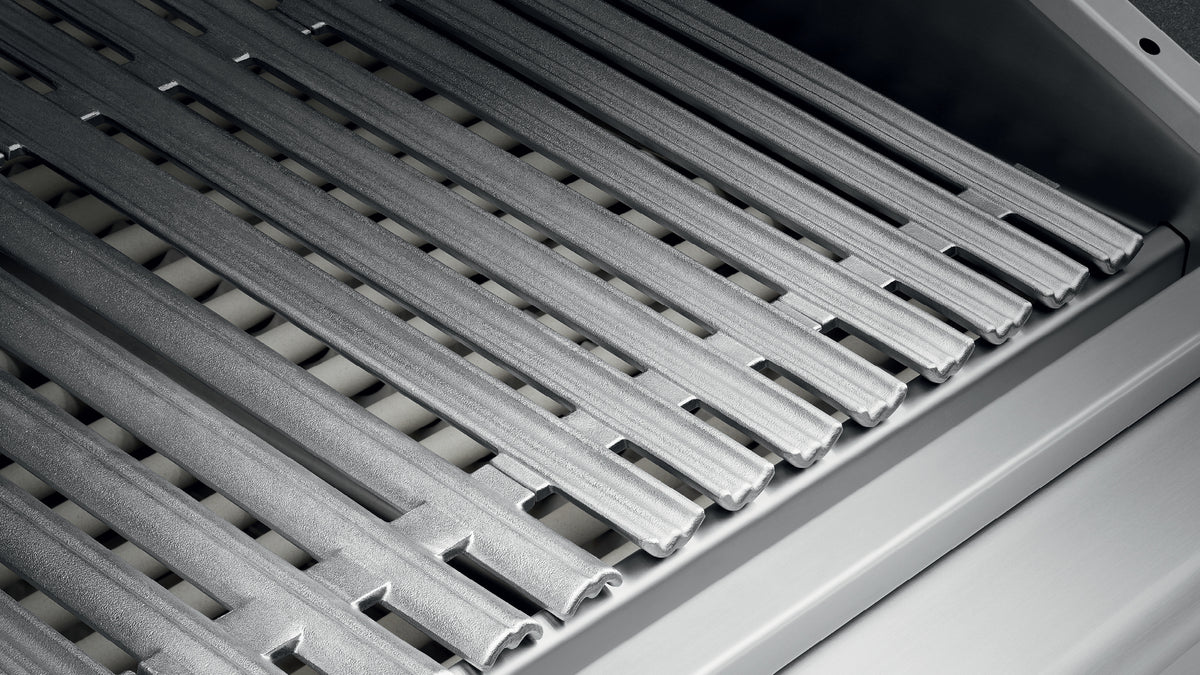

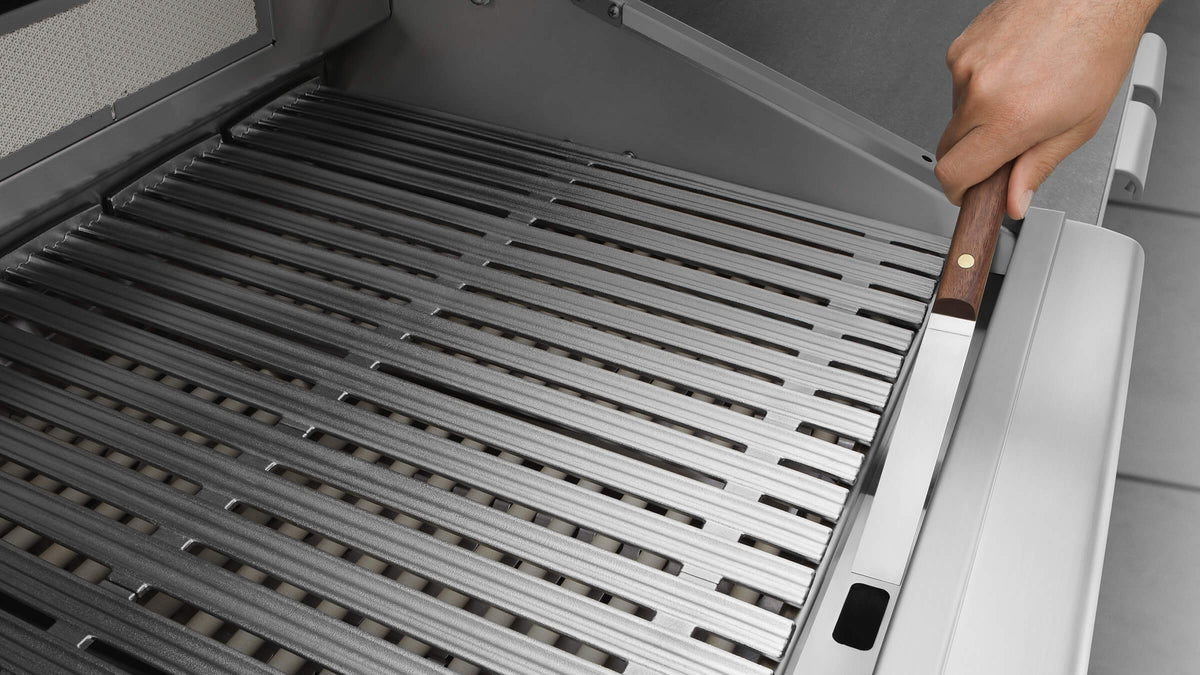

The grill is built from 304 grade stainless steel, connects to the home's gas mains, and uses a spark ignition system for lighting the burners. The grates are double-sided cast stainless steel, with a gentle radius on one side for delicate foods and a W-shaped other side for sear lines that channel oil toward a removable drip tray.

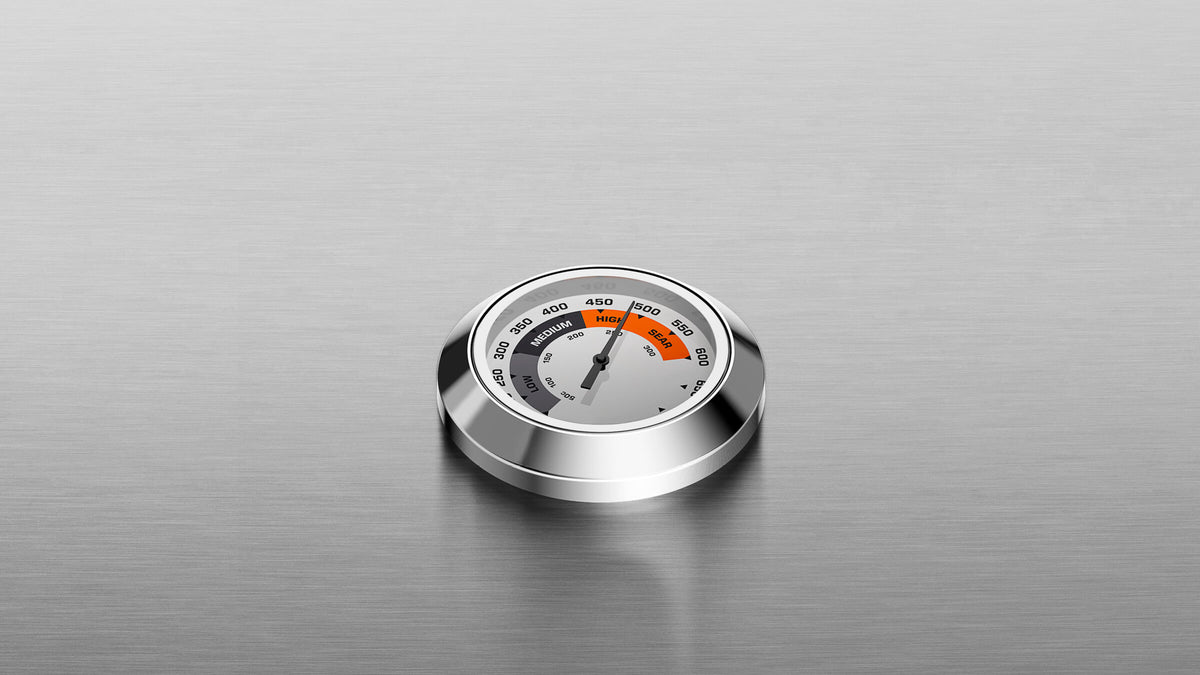

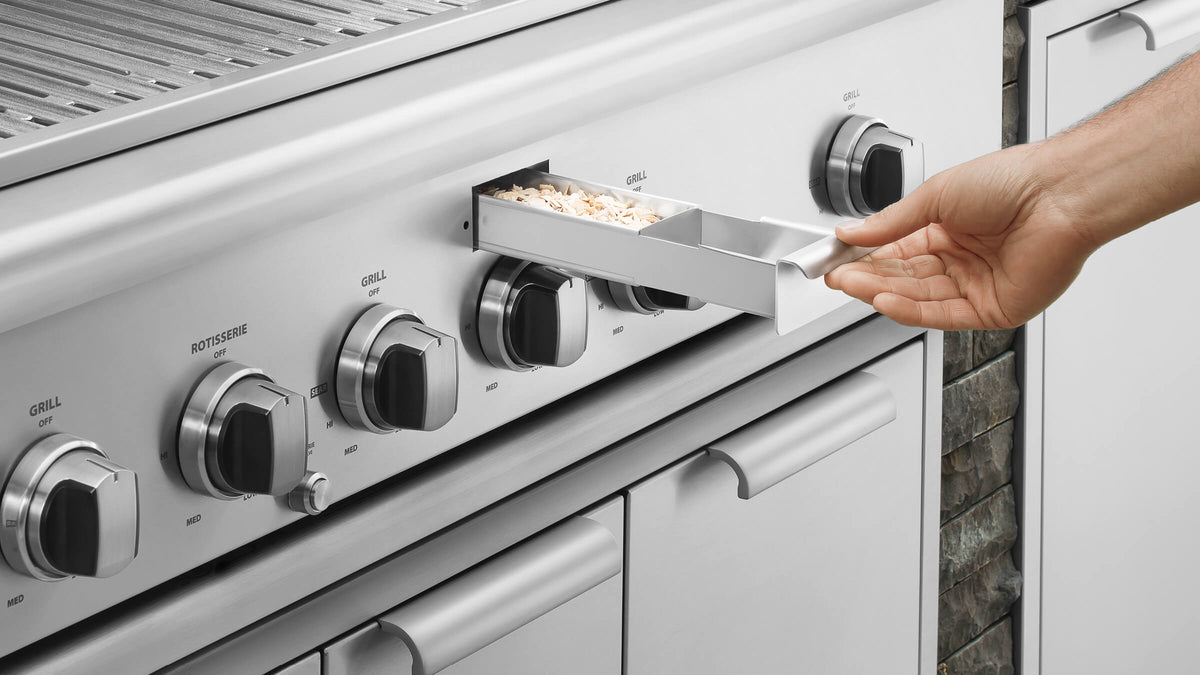

A Grease Management System channels grease and oil away from the burner flames to cut down on flare-ups, and a halogen Smart Beam light lets the cook see the whole cooking surface after dark. A dedicated, sealed smoker tray keeps smoking separate from the main burners for a clean, convenient way to run specialized smoking recipes. A temperature gauge spans zero to sear and reports the exact heat inside, letting the cook check it without lifting the hood.
- Cutout 45.75 in W x 22.75 in D x 10.125 in H
- Packaged weight 348 lb

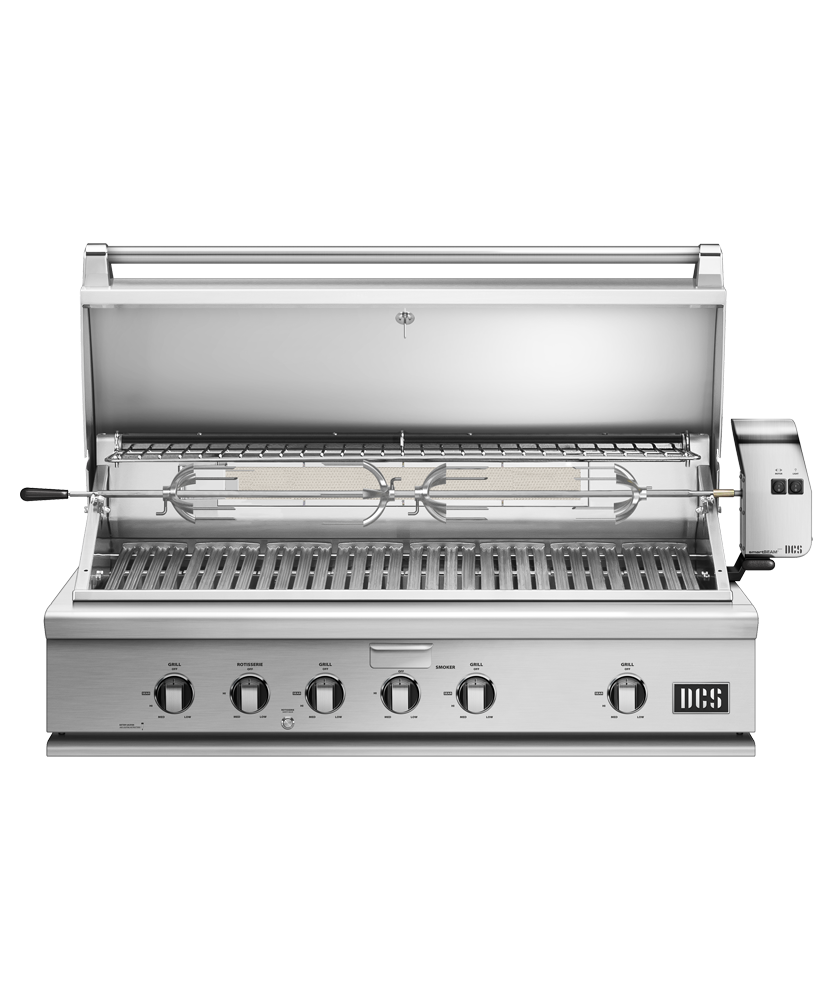

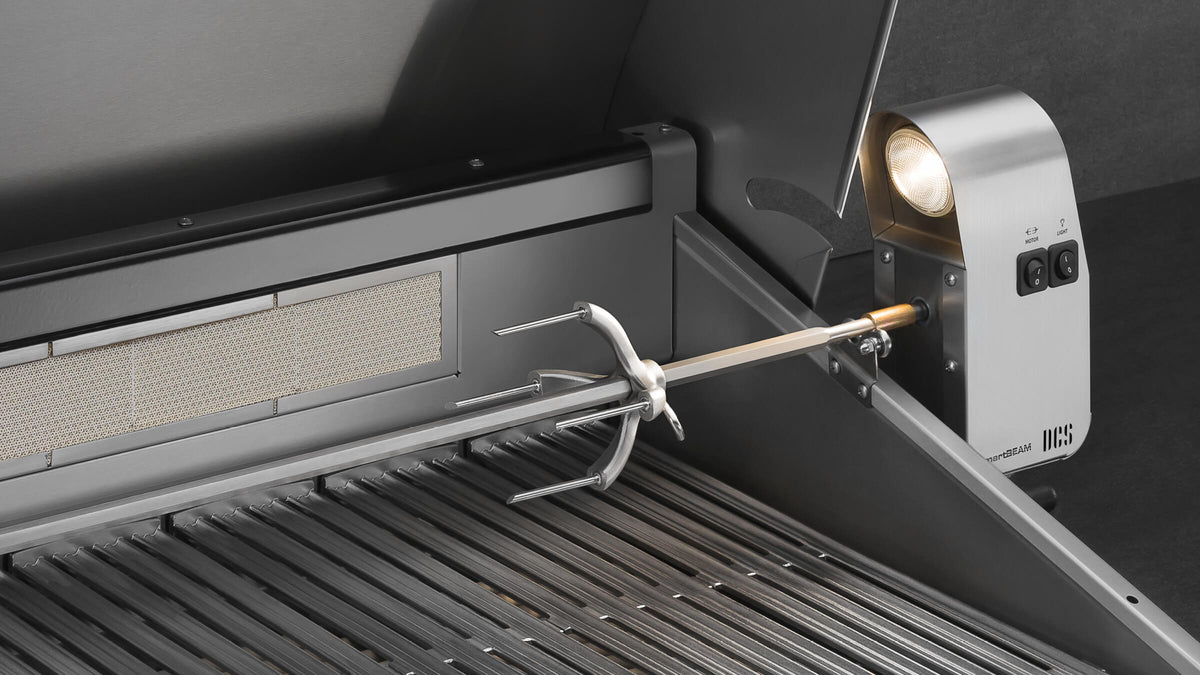

- Rotisserie burner 18000 BTU, 120V 60Hz motor, rated to 50 lb
- Smoker burner 3500 BTU
- 9V battery spark ignition power supply
- Model BH1-48R-N

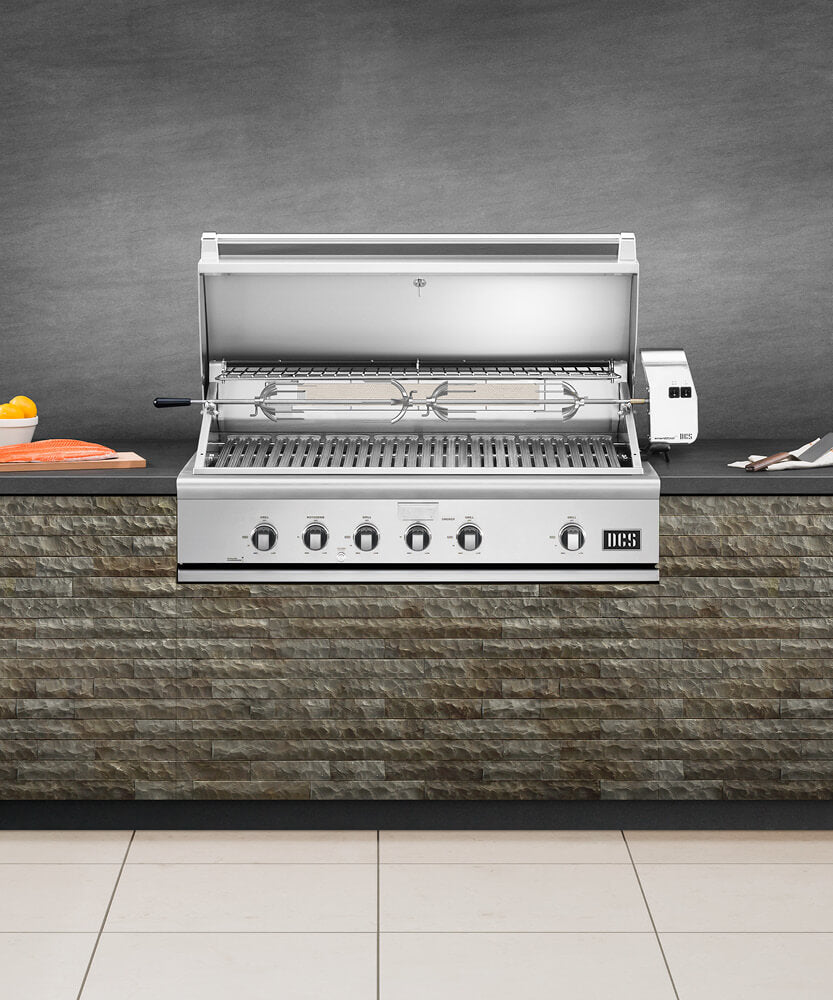

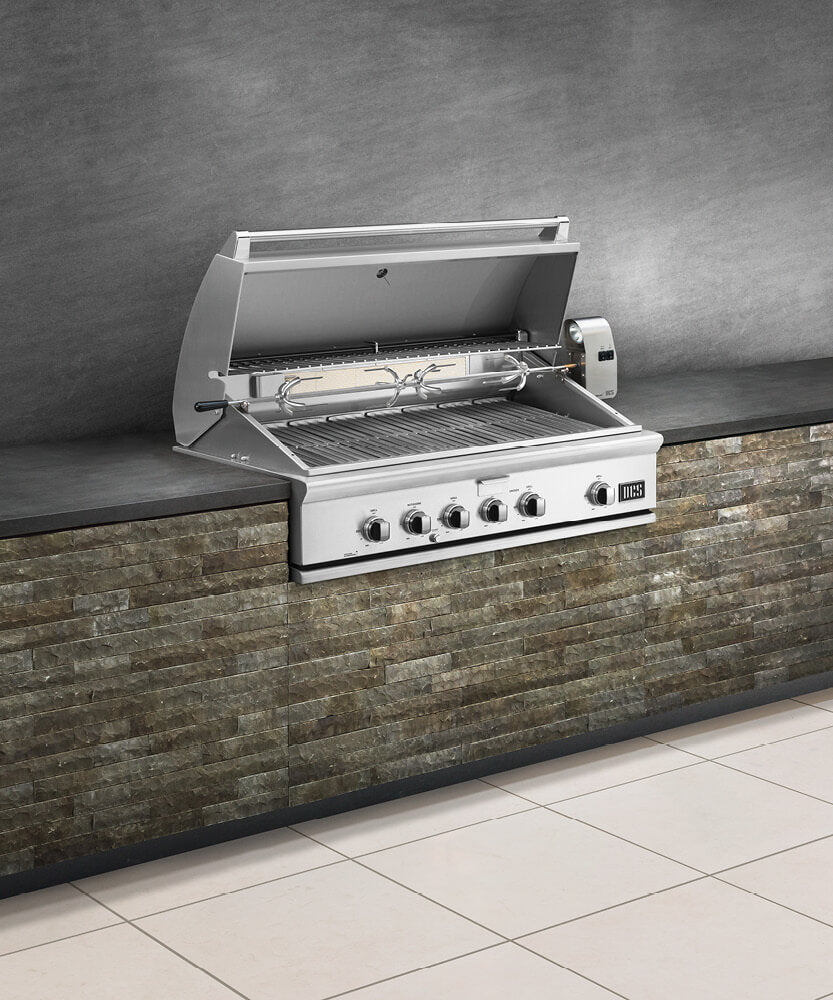

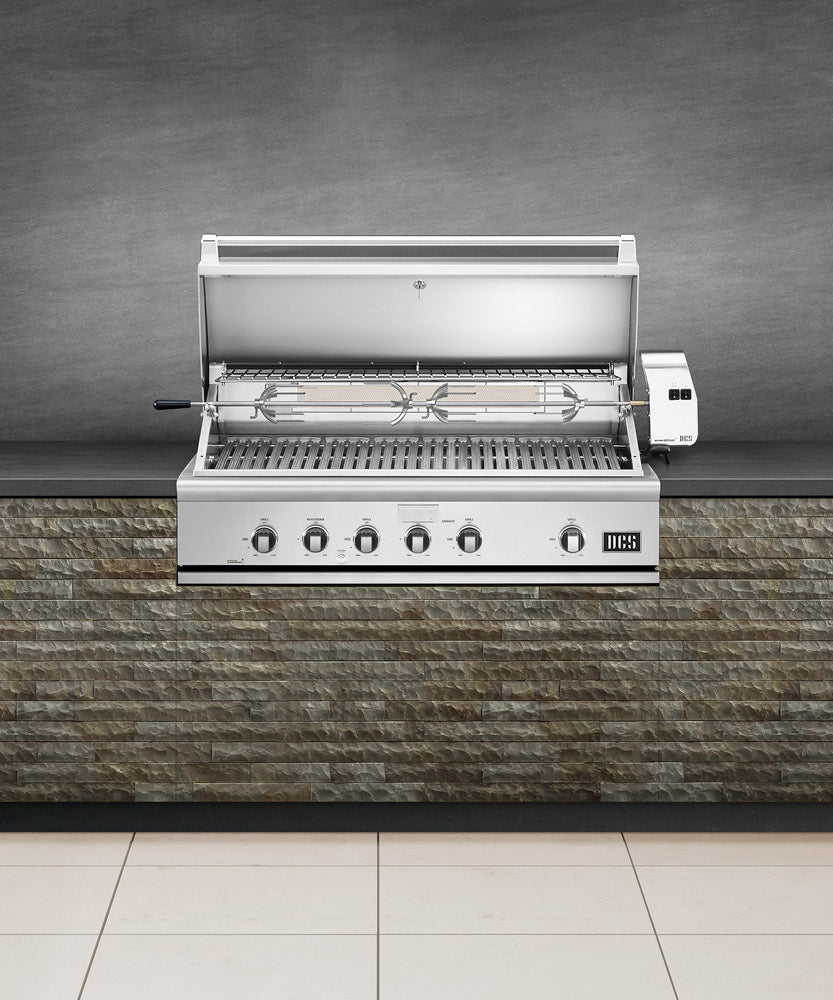

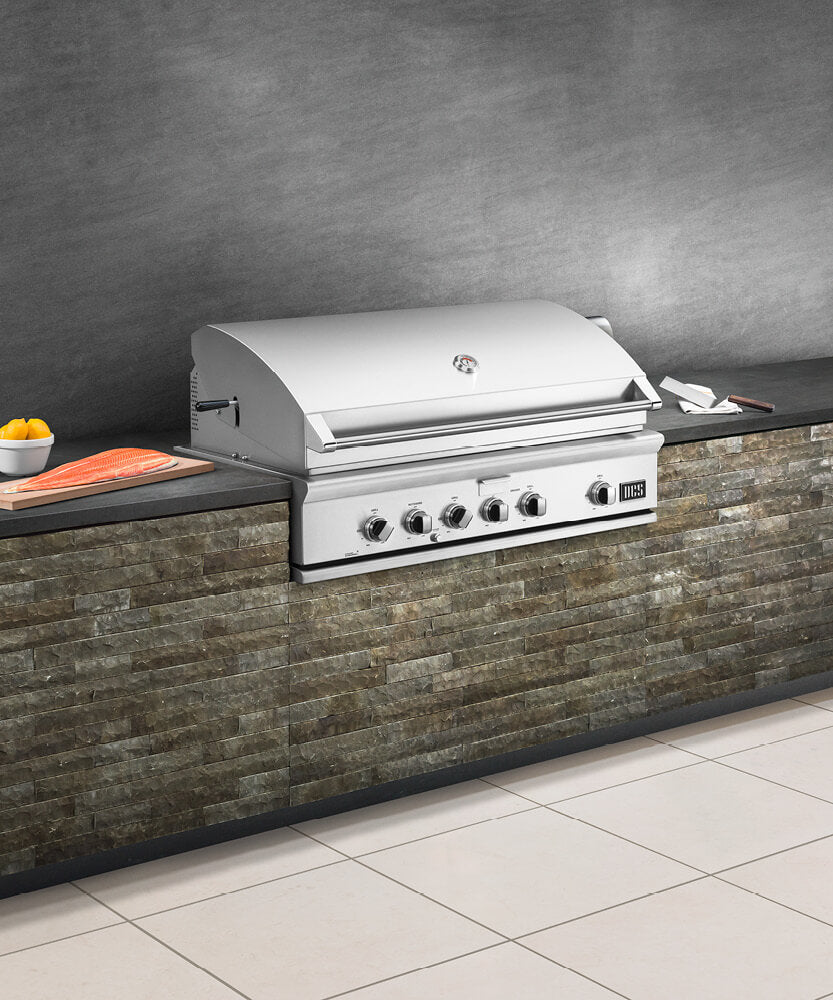

Built-in or freestanding

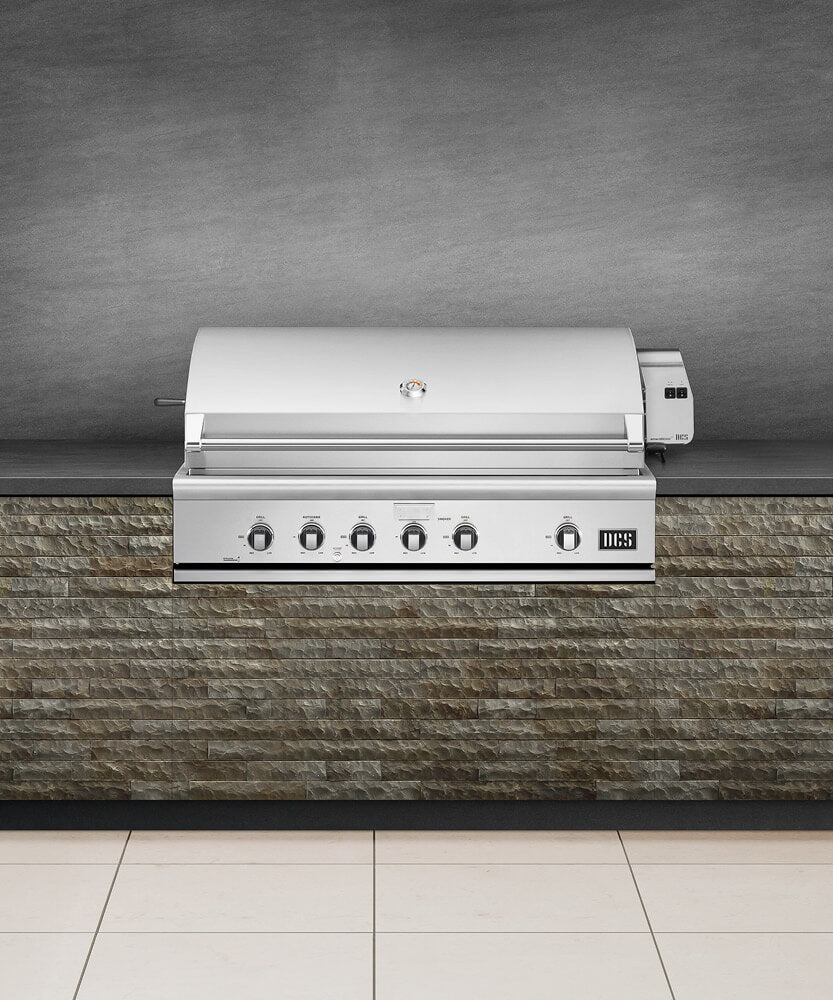

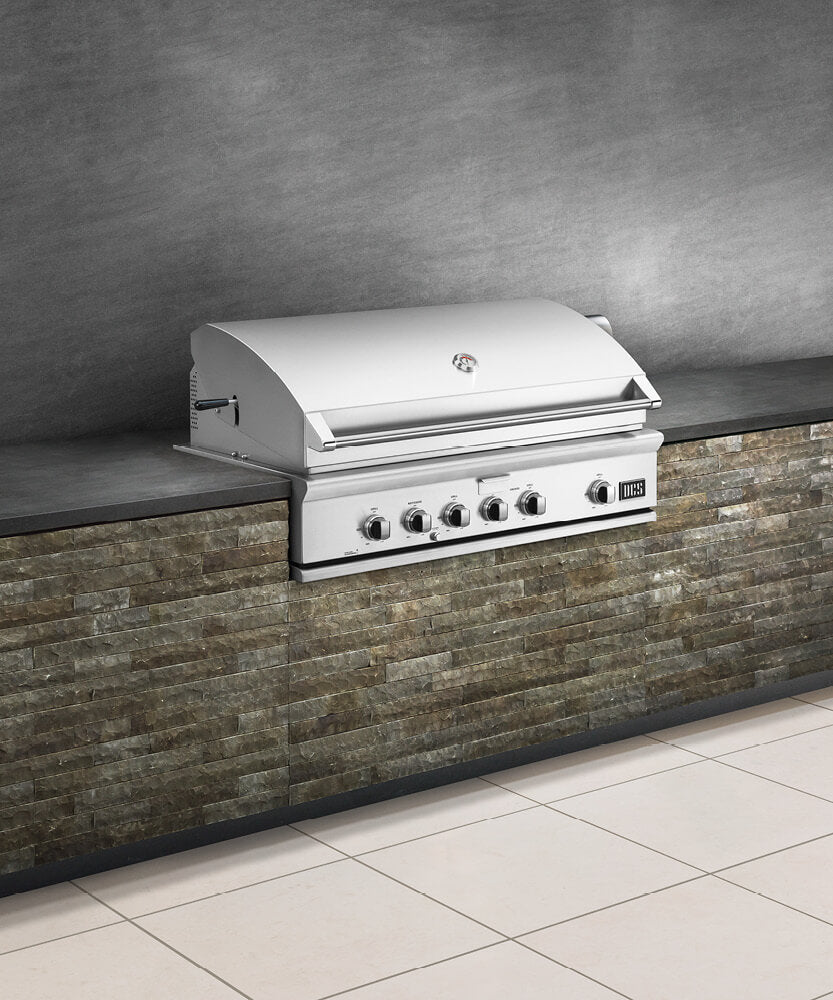

Available in natural gas or propane. Order it as a built-in head for your outdoor kitchen, or freestanding on the matching DCS CAD1-48E cart, the COVER CART 48 ACC-48. Freestanding grills can add one or two CAD1-SK fold-down side shelves.
Specifications
| Version | Natural Gas / Built-in / None |
|---|---|
| Model number | BH1-48R-N |
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Weight (lb) | 348.0 |
| Version | Natural Gas / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Built-in / None |
|---|---|
| Model number | BH1-48R-L |
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Weight (lb) | 348.0 |
| Version | Propane / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 4 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1182 |
| Total BTU | 121500 |
| Rotisserie burner | Yes |
| Material / grade | 304 grade stainless steel |
