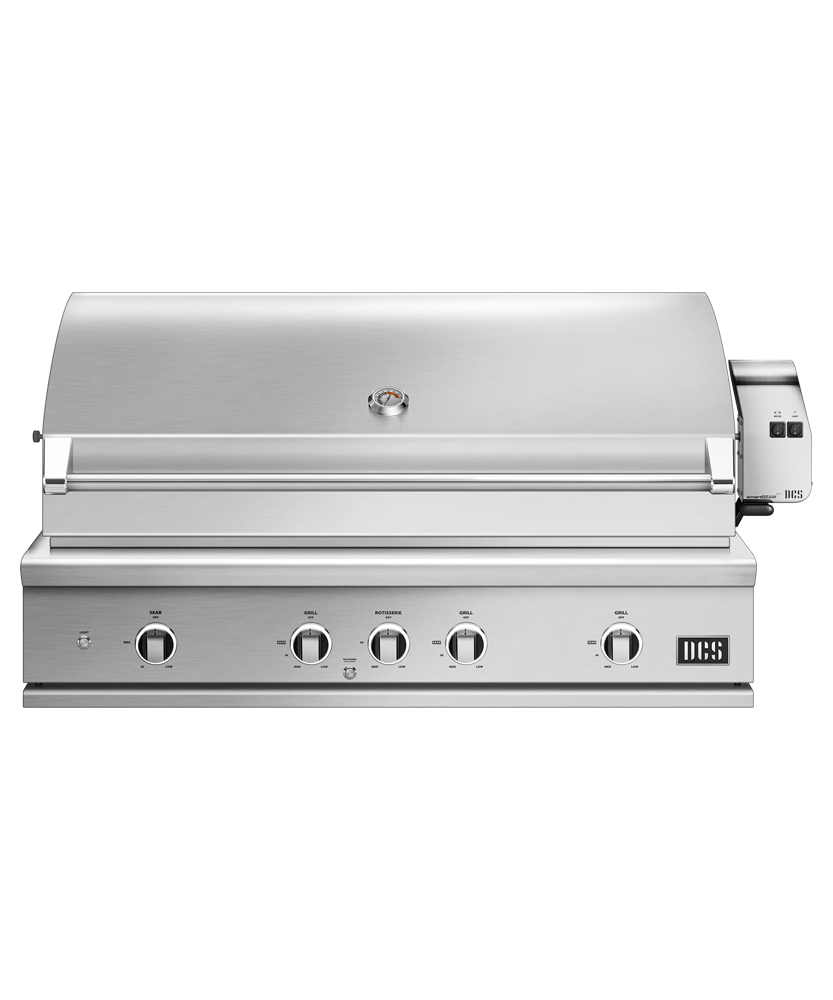

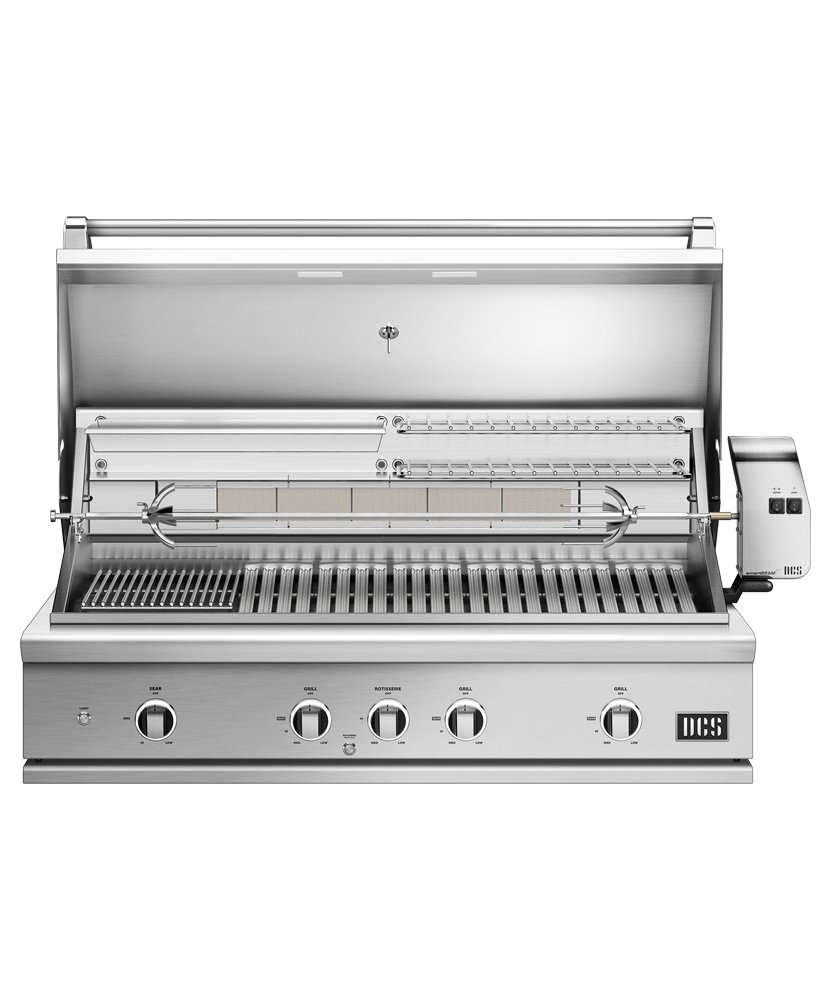

DCS's Series 9 is a 48-inch natural gas grill with three U-burners, a rotisserie and an infrared sear burner. Together the 855 sq in primary surface and 738 sq in secondary surface add up to 1593 sq in of total cooking area, backed by 117000 BTU of total power.

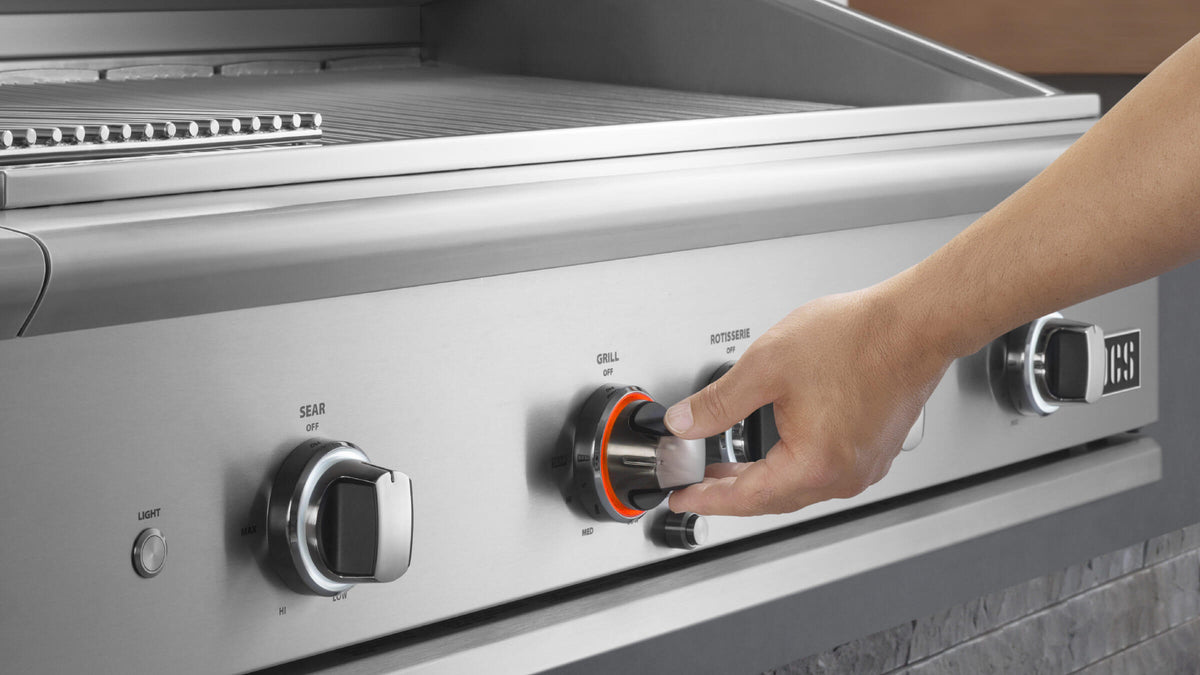

Each U-burner puts out 25000 BTU, the infrared sear burner reaches 24000 BTU, and the rotisserie burner delivers up to 18000 BTU. A hot surface ignition system lights the burners, and the rotisserie motor is rated to turn loads up to 50lbs.

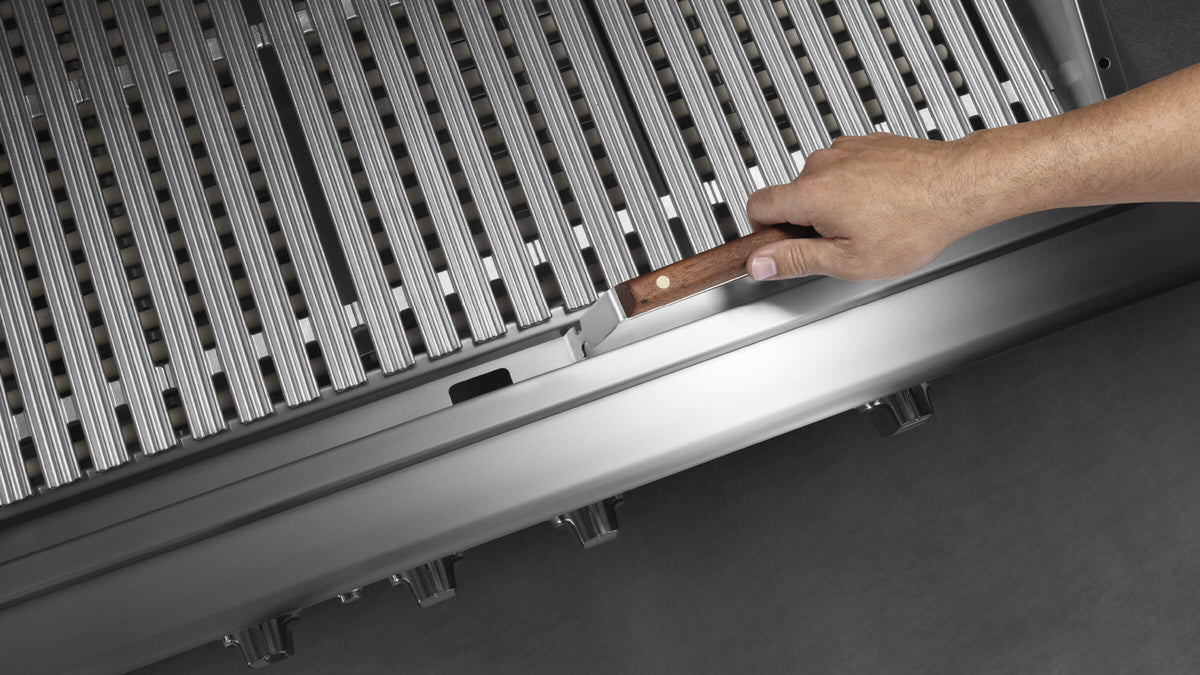

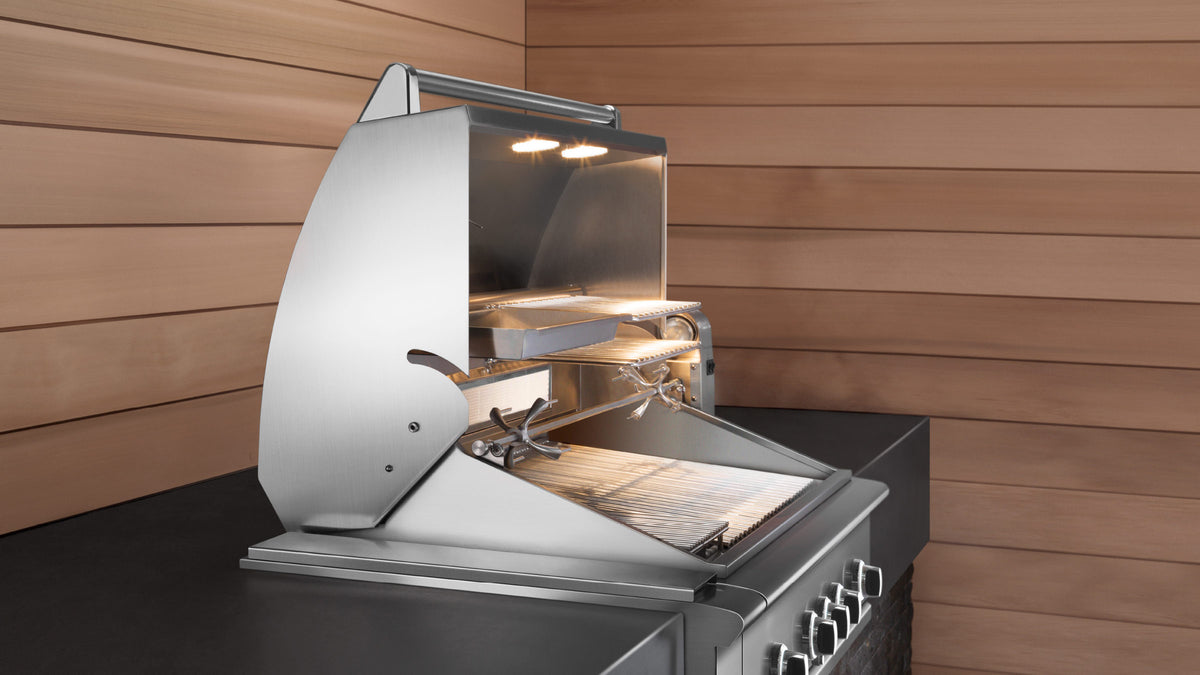

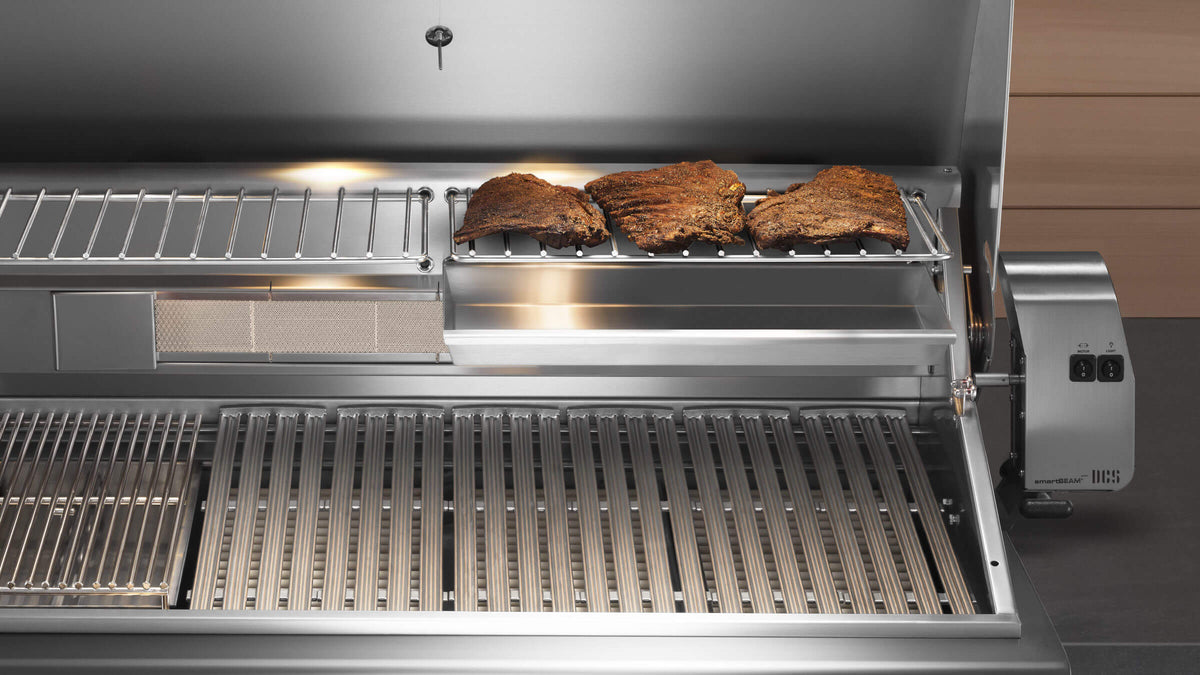

The grill includes 12-volt lighting that illuminates the entire grilling surface. Built from 304 grade stainless steel, this grill runs on natural gas. The grilling grates flip between a flat and an angled position, and the secondary area uses 2-level racks and a tray.
- 304 grade stainless steel construction
- 3 U-burners at 25000 BTU each

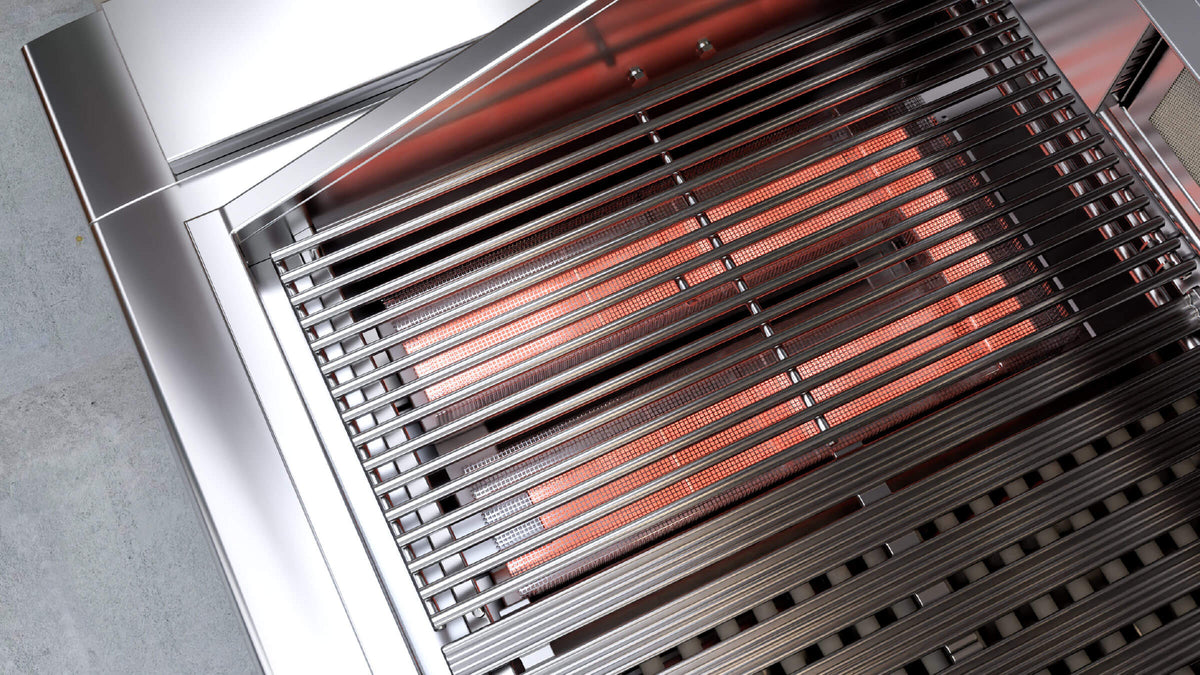

- Infrared sear burner, 24000 BTU

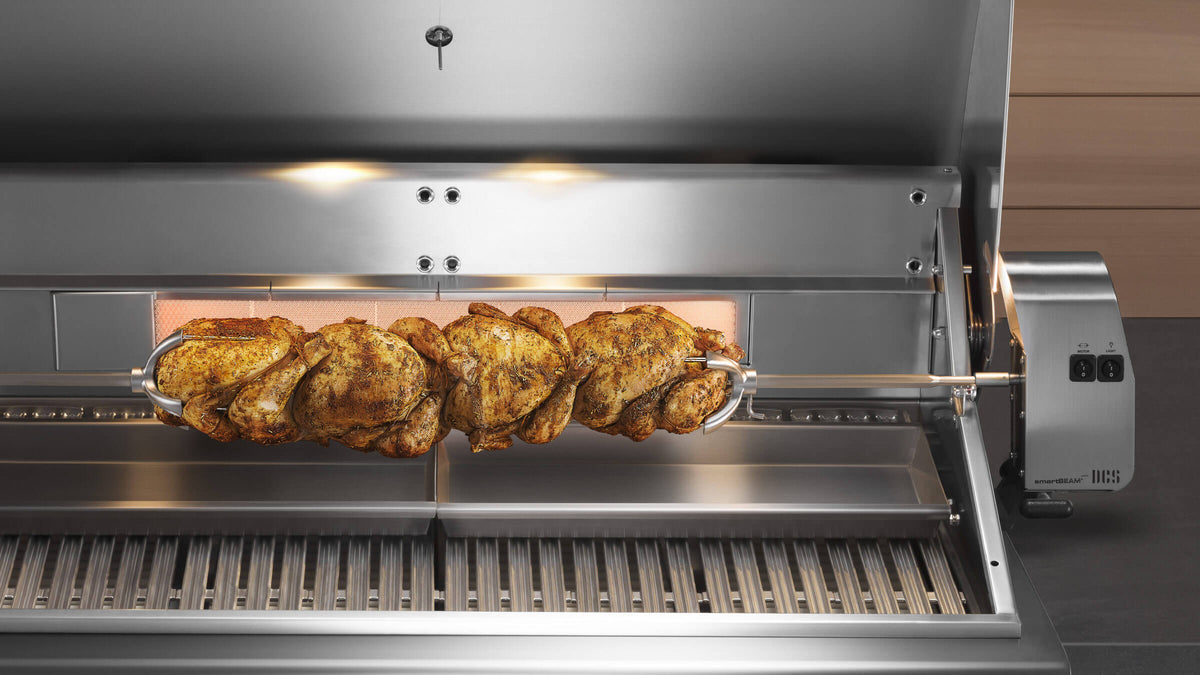

- Rotisserie burner, 18000 BTU, rated for loads up to 50lbs
- Cutout: 45.75 in W x 22.75 in D x 10.125 in H
- Natural gas
Built-in or freestanding
Available in natural gas or propane. Order it as a built-in head for your outdoor kitchen, or freestanding on the matching DCS CAD1-48E cart, the 48" Grill On-Cart Cover Series 9. Freestanding grills can add one or two CAD1-SK fold-down side shelves.
Specifications
| Version | Natural Gas / Built-in / None |
|---|---|
| Model number | BE1-48RCI-N |
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Natural Gas / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Built-in / None |
|---|---|
| Model number | BE1-48RCI-L |
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Cutout width (in) | 45.75 |
| Cutout height (in) | 10.125 |
| Cutout depth (in) | 22.75 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / None |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 1 shelf |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
| Version | Propane / Freestanding / 2 shelves |
|---|---|
| Grill head width (in) | 48 |
| Burners | 3 |
| Primary cooking area (sq in) | 855 |
| Total cooking area (sq in) | 1593 |
| Total BTU | 117000 |
| Rotisserie burner | Yes |
| Infrared / sear burner | Yes |
| Interior lights | Yes |
| Material / grade | 304 grade stainless steel |
Specifications and manuals
- Installation Guide (English) 36" Series 9 Grill, Charcoal, LPG, InstallationManuals-DCSUSOpens in a new window.
- Installation Guide (Canadian French) 36" Series 9 Grill, Charcoal, LPG, InstallationManuals-DCSUSOpens in a new window.
- Installation Guide (Spanish) 36" Series 9 Grill, Charcoal, LPG, InstallationManuals-DCSUSOpens in a new window.
- Planning Guide (English) Built-in Access Doors, InstallationManuals-DCSUSOpens in a new window.
- Installation Guide (English) 36" Series 7 Grill, LPG, InstallationManuals-DCSUSOpens in a new window.
- Planning Guide - Professional Grills Series 9 Outdoor Kitchen (Canadian French) Built-in Access Doors, InstallationManuals-DCSUSOpens in a new window.
- Planning Guide - Professional Grills Series 9 Outdoor Kitchen (Spanish) Built-in Access Doors, InstallationManuals-DCSUSOpens in a new window.
- Installation Guide (Canadian French) 36" Series 7 Grill, LPG, InstallationManuals-DCSUSOpens in a new window.
- Installation Guide (Spanish) 36" Series 7 Grill, LPG, InstallationManuals-DCSUSOpens in a new window.
- Quick Reference guideOpens in a new window.
- Service & Warranty (English, Canadian French) Patio Heater - Built in, GeneralFiles-DCSUSOpens in a new window.
- Installation & User Guide (English) 36" Series 9 Grill, Rotisserie and Infrared Sear Burner, Natural Gas, GeneralFiles-DCSUSOpens in a new window.
- User Guide (English) 36" Series 9 Grill, Charcoal, LPG, GeneralFiles-DCSUSOpens in a new window.
- User Guide (Canadian French) 36" Series 9 Grill, Charcoal, LPG, GeneralFiles-DCSUSOpens in a new window.
- User Guide (Spanish) 36" Series 9 Grill, Charcoal, LPG, GeneralFiles-DCSUSOpens in a new window.
- Right To Repair Declaration (English, French) Patio Heater - Built in, GeneralFiles-DCSUSOpens in a new window.
- Get Inspired Download the DCS BrochureOpens in a new window.
