EcoSmart Fire Grate 18 Fireplace

The Grate 18 by EcoSmart Fire delivers the ambience of an open fire, without the mess, odour, sparks, or soot, thanks to clean-burning, eco-friendly e-NRG bioethanol. It’s perfect for transforming existing fireplaces in minutes, offering a stylish and practical solution for modern living.

MINIMUM FUSS

Enjoy the warmth and glow of an open fire without the usual mess. The Grate 18 runs on clean-burning e-NRG bioethanol, eliminating smoke, soot, and ash.

FLUID™ CONCRETE TECHNOLOGY

Our proprietary Fluid™ Concrete Technology produces robust, handcrafted components that are as strong as they are sophisticated.

EASY CONVERSION

Convert your existing wood-burning fireplace into a clean-burning ethanol fire in minutes. Simply attach the grate to a level platform, fill the burner, and light it.

SELF-CONTAINED SYSTEM

No need for gas or electricity. The burner houses all the fuel, eliminating the need for external connections.

INTERNATIONALLY TESTED

Certified to meet global safety standards:

• UL 1370 (USA)

• EN16647 (Europe/UK)

• ACCC Safety Mandate (Australia)

Weight: 16.40kg [36.16lb]

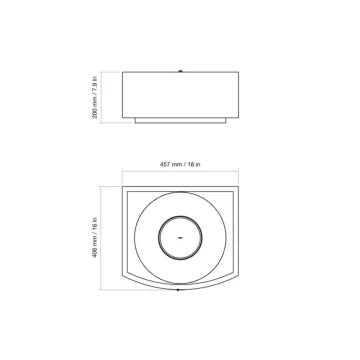

Model Dimensions:
L: 457mm [18in]
W: 406mm [16in]
H: 200mm [7.9in]
Application: Indoor
Materials: Concrete Composite, Stainless Steel Grade 304

Includes everything you need to operate and maintain your investment:

• Lighting Rod (Ethanol Only)

• Jerry Can 5L (Ethanol Only)

• Bottle Adaptor (Ethanol Only)

• AB8 Efficiency Ring (Ethanol Only)

• Fire Lighter (Ethanol Only)

Volume Capacity: 8 L [2.1 Gal]
Heats on Average: 60 m² [646 ft²]
Minimal Room Size: 116 m³ [4097 ft³]
Thermal Output: 20433 BTU/h [6 kW / 21.56 MJ/h]
Burn Time: 7 - 11 hours (8 Litres)

Values may vary based on model, installation environment, and the composition of e-NRG bioethanol sourced locally.

• Model Specs
• Burner Manual

Warranty

This unit is backed by EcoSmart Fire's 12-month limited warranty from date of purchase on stainless steel parts (raw, linished, and powder-coated), mild steel, concrete composite, glass, leather, fabric, and MDF components, with electric models also covered by a 12-month warranty. Coverage in areas with heavy snow accumulation requires use of the Winter/All-Season Storage Bag.
