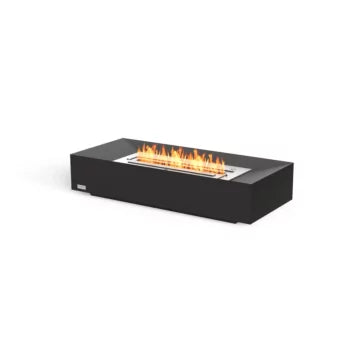

EcoSmart Fire Grate 30 Fireplace

The Grate 30 by EcoSmart Fire offers a stylish upgrade to existing fireplaces. Using clean-burning e-NRG bioethanol, it delivers the warmth and visual appeal of a traditional fire without any of the typical hassle—no mess, no smoke, and no connections required.

CLEAN-BURNING CONVENIENCE

Enjoy the ambience of a fire without ash, soot, or smoke—thanks to eco-friendly, liquid bioethanol fuel.

INNOVATIVE DESIGN

Engineered using Fluid™ Concrete Technology, the unit offers strength, sophistication, and long-lasting performance.

EASY INSTALLATION

Transform your existing wood fireplace in minutes by simply placing the grate, filling the burner, and lighting it.

NO GAS OR ELECTRIC NEEDED

Self-contained design means no pipes or wiring. Just the burner and the bioethanol fuel.

GLOBALLY CERTIFIED

Tested and certified to meet international safety standards:

• UL 1370 (USA)

• EN16647 (Europe/UK)

• ACCC Safety Mandate (Australia)

Weight: 18.70kg [41.23lb]

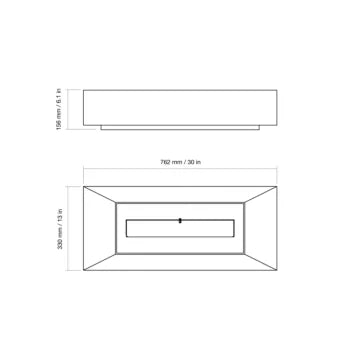

Model Dimensions:
L: 762mm [30in]
W: 330mm [13in]
H: 156mm [6.1in]
Application: Indoor
Materials: Concrete Composite, Stainless Steel Grade 304

Everything included for safe and convenient operation:

• Lighting Rod (Ethanol Only)

• Jerry Can 5L (Ethanol Only)

• Bottle Adaptor (Ethanol Only)

• XL Baffles

• Fire Lighter (Ethanol Only)

Volume Capacity: 5 L [1.3 Gal]
Heats on Average: 40 m² [431 ft²]
Minimal Room Size: 80 m³ [2825 ft³]
Thermal Output: 11430 BTU/h [3.4 kW / 12 MJ/h]
Burn Time: 10 - 13 hours (5 Litres)

Values may vary based on model, installation environment, and the local composition of e-NRG bioethanol.

• Model Specs
• Burner Manual

Warranty

This unit is backed by EcoSmart Fire's 12-month limited warranty from date of purchase on stainless steel parts (raw, linished, and powder-coated), mild steel, concrete composite, glass, leather, fabric, and MDF components, with electric models also covered by a 12-month warranty. Coverage in areas with heavy snow accumulation requires use of the Winter/All-Season Storage Bag.
