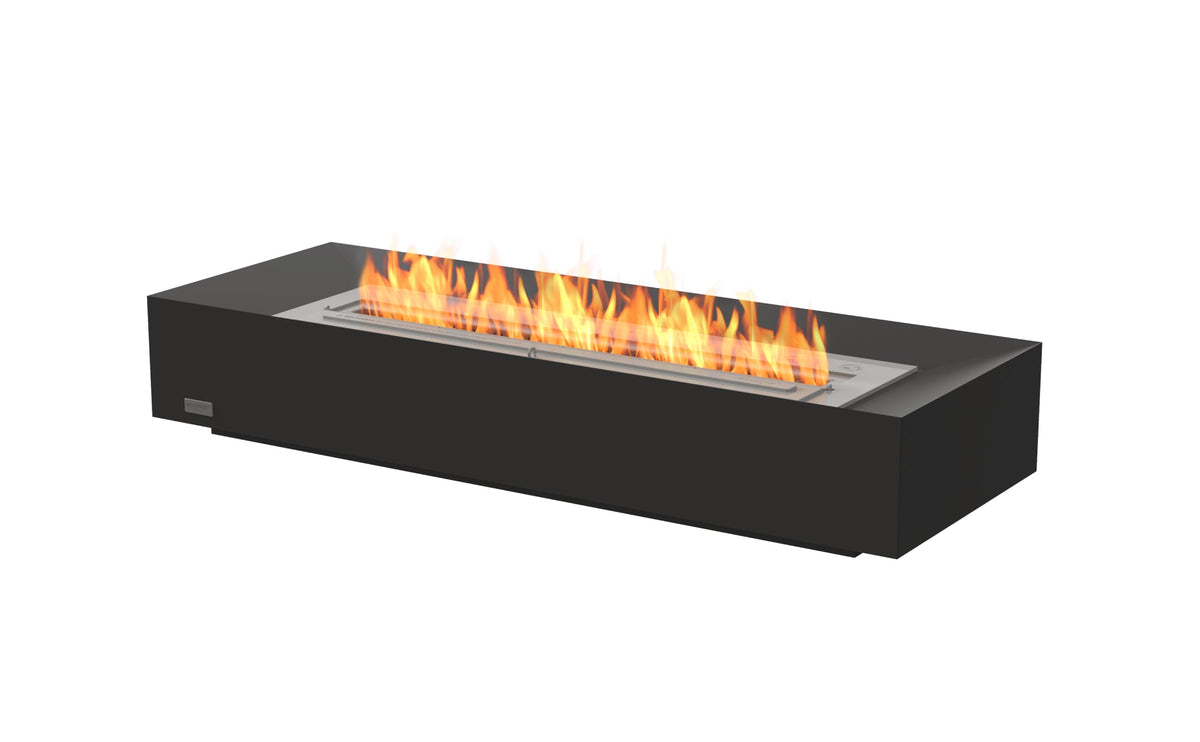

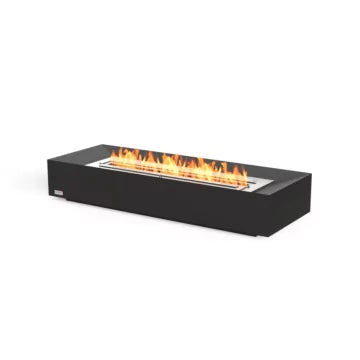

EcoSmart Fire Grate 36 Fireplace

The Grate 36 reimagines the traditional fireplace with a bold, contemporary look and a long, elegant flame. Designed for those wanting to make a strong visual statement, it fits seamlessly into unused fireplaces and runs on clean-burning e-NRG bioethanol—no flue, no smoke, and no hassle.

CLEAN FIRE WITHOUT THE FUSS

Enjoy the beauty of a real flame without the mess, odour, soot, or sparks—perfect for modern indoor living.

STRONG & STYLISH

Crafted using proprietary Fluid™ Concrete Technology, the graphite-toned body offers durability and timeless appeal.

INSTANT CONVERSION

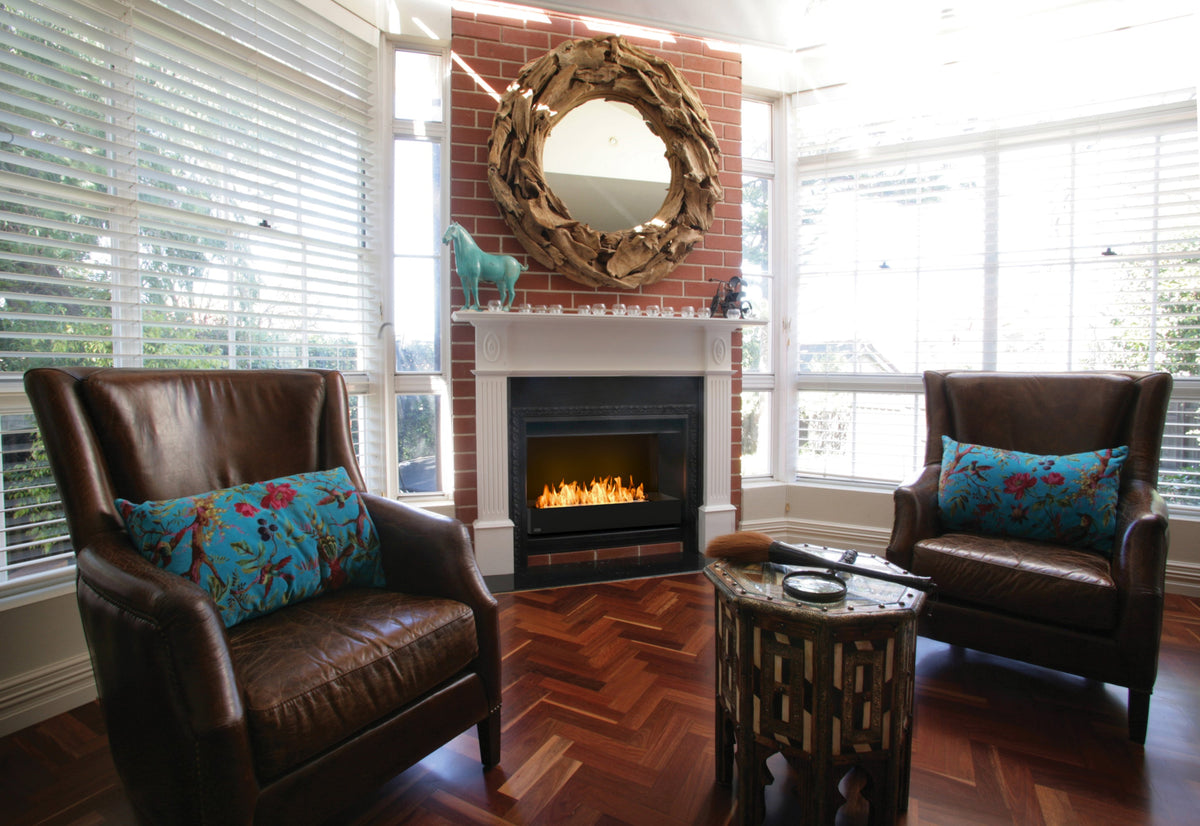

Revive any traditional fireplace by simply placing the grate on a level platform, adding the burner, and filling it with liquid bioethanol.

SELF-CONTAINED & WIRELESS

No need for gas lines or electrical connections. Just the burner and the fuel—everything is housed within.

SAFETY CERTIFIED WORLDWIDE

Certified and tested for peace of mind:

• UL 1370 (USA)

• EN16647 (Europe/UK)

• ACCC Safety Mandate (Australia)

Weight: 23.40kg [51.59lb]

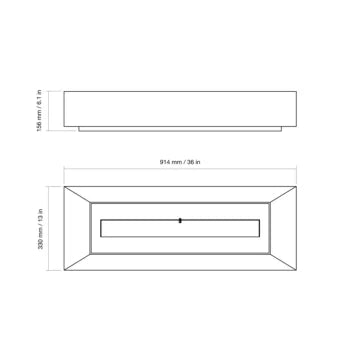

Model Dimensions:
L: 914mm [36in]
W: 330mm [13in]
H: 156mm [6.1in]
Application: Indoor
Materials: Concrete Composite, Stainless Steel Grade 304
Colours: Graphite

Included for safe and convenient operation:

• Lighting Rod (Ethanol Only)

• Jerry Can 5L (Ethanol Only)

• Bottle Adaptor (Ethanol Only)

• XL Baffles

• Fire Lighter (Ethanol Only)

Volume Capacity: 7 L [1.8 Gal]
Heats on Average: 50 m² [538 ft²]
Minimal Room Size: 90 m³ [3178 ft³]
Thermal Output: 13650 BTU/h [4 kW / 14.50 MJ/h]
Burn Time: 9 – 12 hours (7 Litres)

Performance may vary based on the installation environment and the specific composition of e-NRG bioethanol used in each region.

Model Specs

Burner Manual

Warranty

This unit is backed by EcoSmart Fire's 12-month limited warranty from date of purchase on stainless steel parts (raw, linished, and powder-coated), mild steel, concrete composite, glass, leather, fabric, and MDF components, with electric models also covered by a 12-month warranty. Coverage in areas with heavy snow accumulation requires use of the Winter/All-Season Storage Bag.
