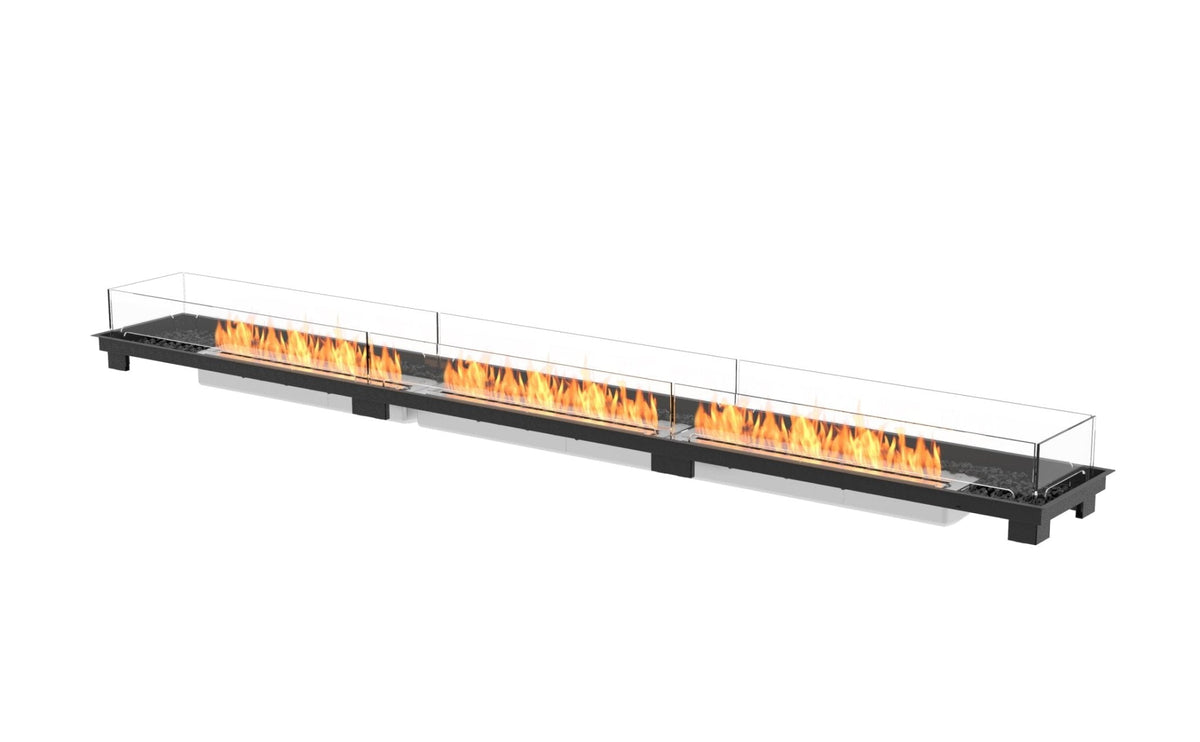

EcoSmart Fire Linear 130 Fire Pit Kit

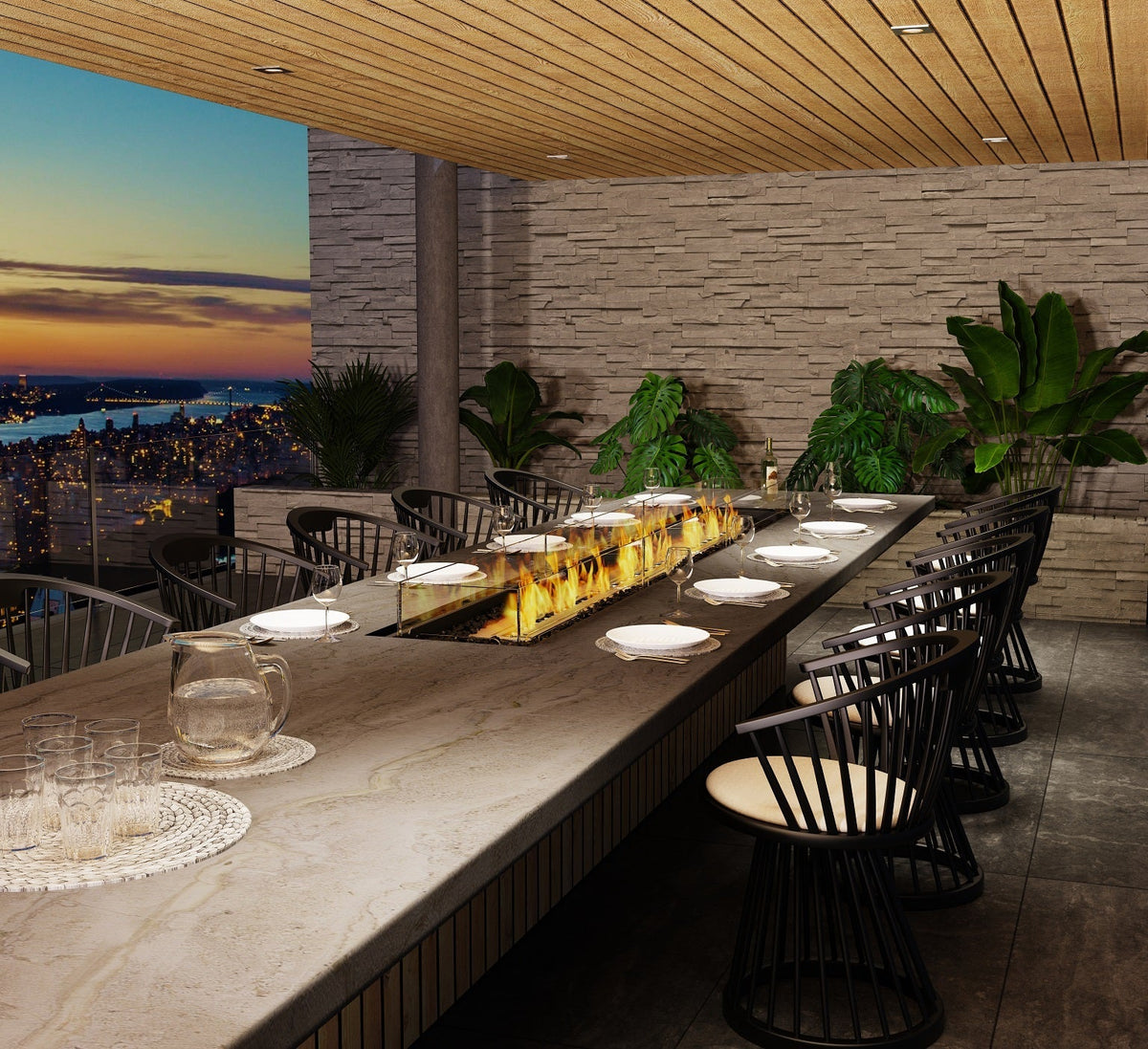

With three dazzling flames stretching across more than 130 inches, the Linear 130 Fire Pit Kit delivers the longest flame in EcoSmart’s series—making it an extraordinary showpiece for large outdoor spaces. Ideal for expansive residential or commercial settings, it serves as a dramatic feature, divider, or integrated element in dining tables and countertops. The triple XL900 burners create a bold, seamless fire that captivates from every angle.

TRIPLE-FLAME GRANDEUR
Three synchronized flames span over 130 inches, delivering unmatched visual drama and warmth to areas up to 180 m².

DESIGNED FOR IMPACT
Its elongated silhouette, black steel tray, and black glass charcoal media elevate any modern space with a refined yet powerful presence.

CUSTOMIZABLE INSTALLATION
Install into stone, concrete, tile, or brick to create a personalized feature with lasting architectural appeal.

EFFORTLESS SETUP
No need for chimneys, gas lines, or electrical connections. This all-in-one kit makes installation quick and clean.

YEAR-ROUND ELEGANCE
Made to perform in all seasons, it’s perfect for both commercial courtyards and private patios.

CLEAN, GREEN HEAT
Runs on renewable e-NRG bioethanol, producing a smokeless, soot-free flame with zero mess.

ENGINEERED TO ENDURE
Crafted from robust mild steel and tempered glass for long-lasting durability and sophistication in any environment.

CERTIFIED QUALITY
Tested and approved around the world:

• UL 1370 Listed (USA)

• EN16647 Certified (Europe/UK)

• ACCC Safety Mandate Compliant (Australia)

• Weight: 106kg [233lb]

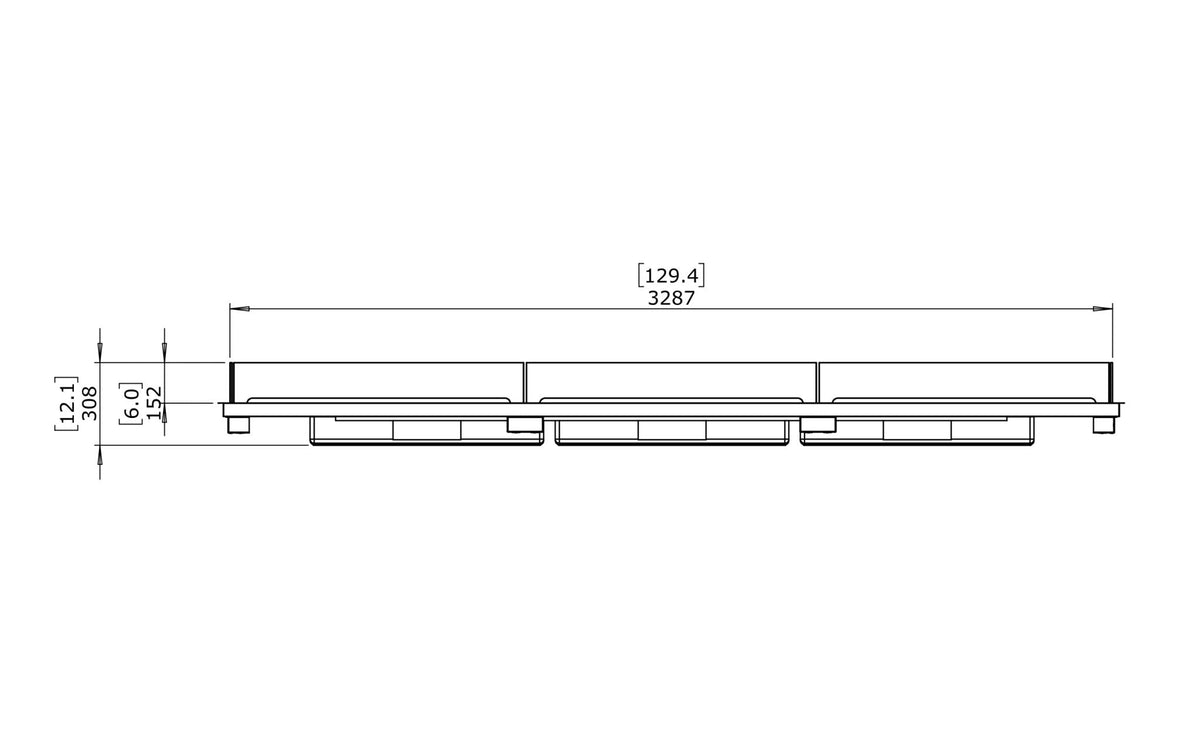

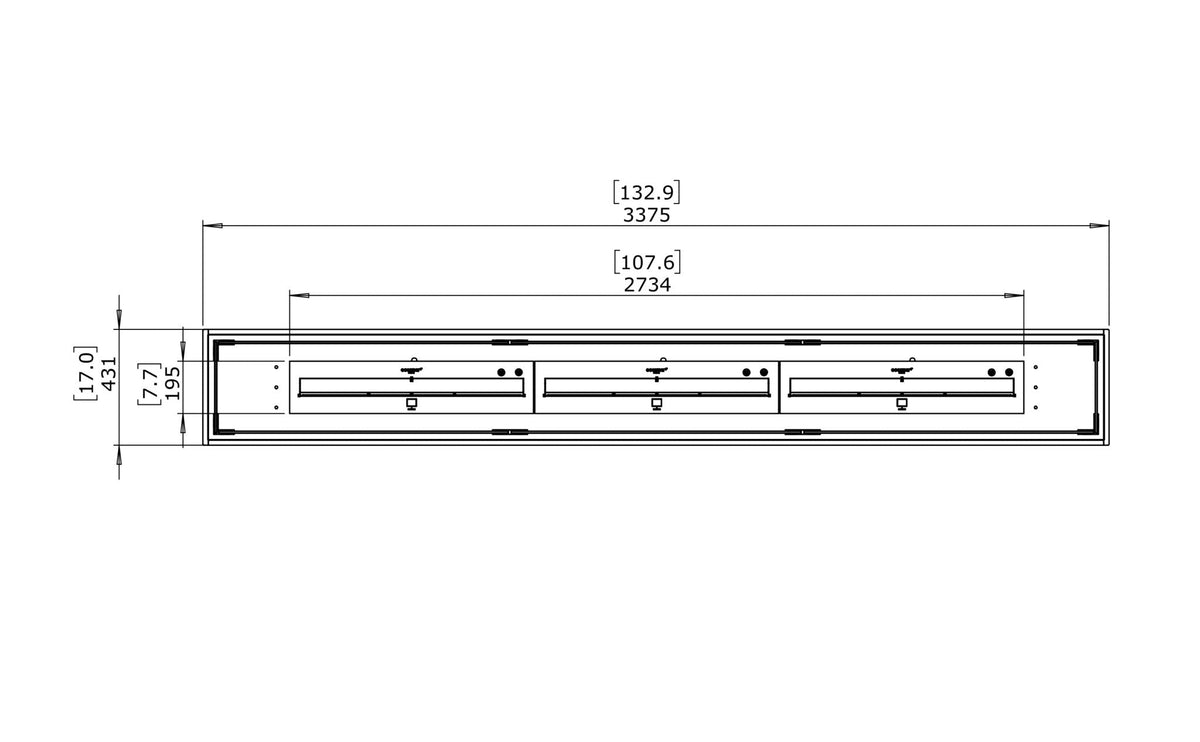

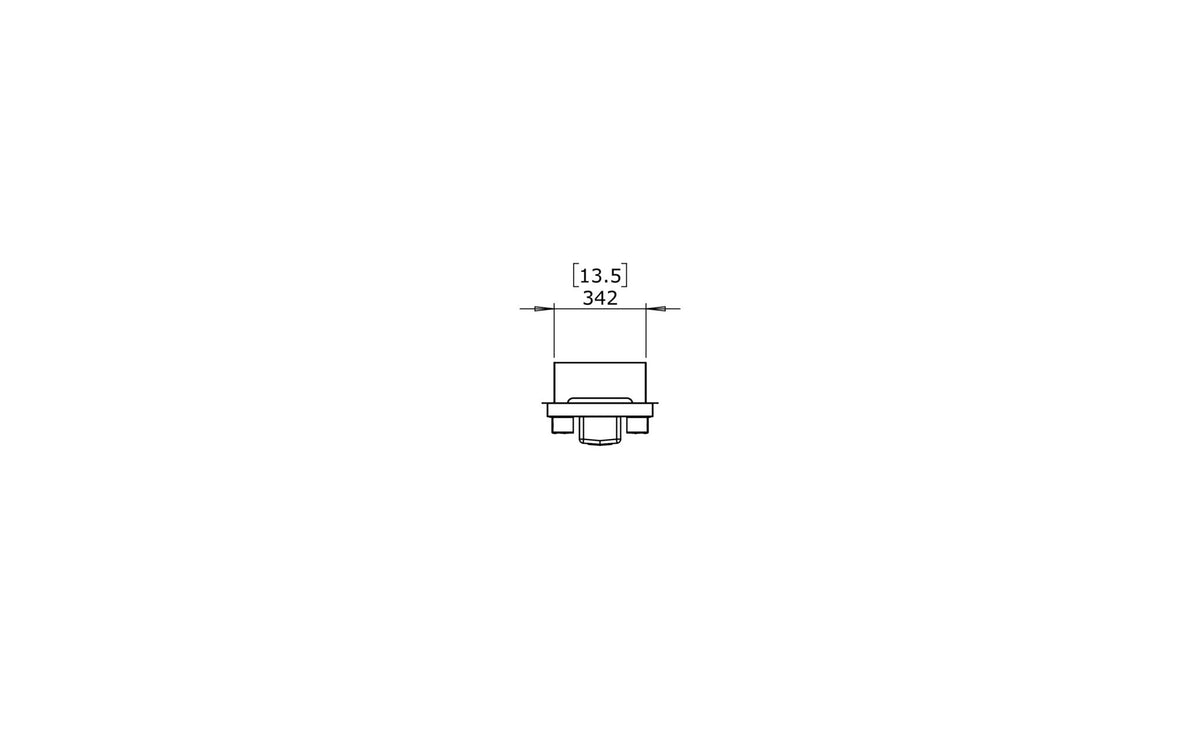

• Model Dimensions:
  L: 3375mm [132.9in]
  W: 431mm [17in]
  H: 308mm [12.1in]

• Application: Outdoor Use Only (in this configuration)

• Materials: Mild Steel, Toughened Glass

• Colours: Includes Black Glass Charcoal as decorative media

Comes with essential and optional accessories:

• Lighting Rod (Ethanol Only)

• Jerry Can 5L (Ethanol Only)

• Bottle Adaptor (Ethanol Only)

• XL Baffles

• Black Glass Charcoal

• L1080 Fire Screen

• Fire Lighter (Ethanol Only)

• Optional: XL900 Burner Cover

• Volume Capacity: 9 L [2.4 Gal]

• Heats on Average: 60 m² [646 ft²]

• Minimal Room Size: 110 m³ [3885 ft³]

• Thermal Output: 15,000 BTU/h [4.4 kW / 16 MJ/h]

• Burn Time: 8 – 13 hours per 9L

Performance may vary depending on installation conditions and regional variations in bioethanol fuel.

• C&I Manual
• Burner Manual

Warranty

This unit is backed by EcoSmart Fire's 12-month limited warranty from date of purchase on stainless steel parts (raw, linished, and powder-coated), mild steel, concrete composite, glass, leather, fabric, and MDF components, with electric models also covered by a 12-month warranty. Coverage in areas with heavy snow accumulation requires use of the Winter/All-Season Storage Bag.
