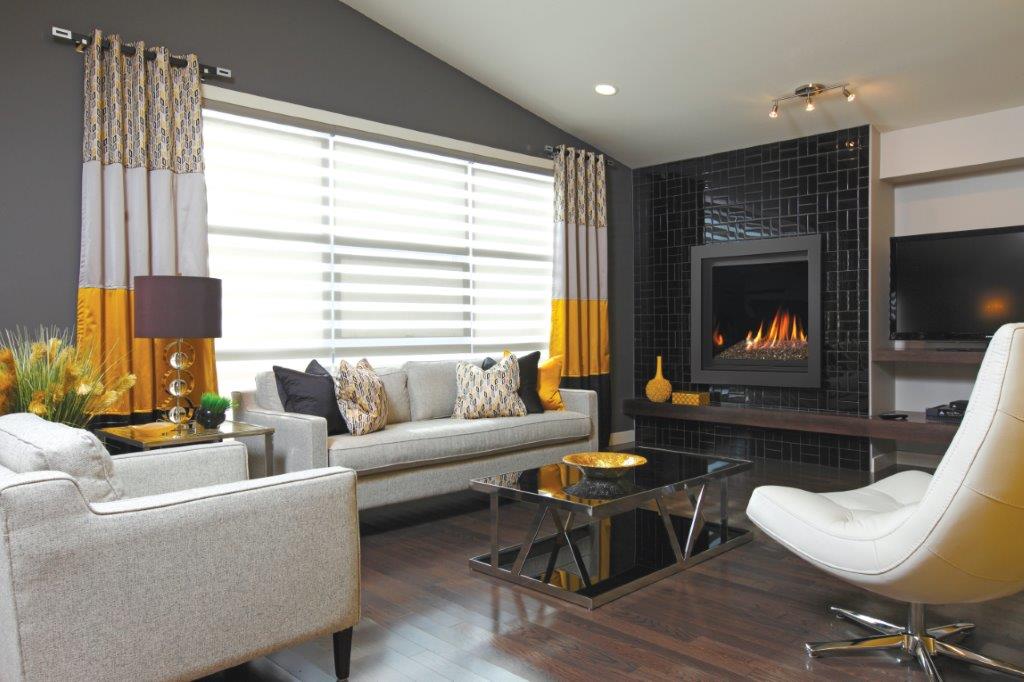

Kingsman's ZCV39 is a zero clearance direct vent gas fireplace. Built for new construction or renovation projects, it installs in various spots throughout the home. It runs on natural gas or propane.
This listing covers models ZCV39NH, ZCV39LPH, ZCV39NHE, ZCV39LPHE (ceramic glass).
A millivolt or IPI valve system keeps the fireplace running during a power outage, with hi/low heat and flame adjustment. Tempered or ceramic glass fronts the firebox, depending on the model chosen.
Key features
- Safety screen barrier included as a standard feature
- Optional heat-activated fan kit with variable speed control
- Optional wall mount or programmable thermostat
- Optional wall mount battery holder backs up the IPI valve system during a power failure
- Requires choosing a log set or glass tray with glass media to complete the unit
Specifications
| Max input, natural gas | ZCV39N etc.: 25,000 BTU/hr; ZCV39NH etc.: 28,000 BTU/hr |
| Max input, propane | ZCV39N etc.: 25,000 BTU/hr; ZCV39NH etc.: 28,000 BTU/hr |
| Fuel | Natural Gas or Propane |
| Venting (vent size) | Direct vent, 4/7" |
| Glass | ZCV39N etc.: Tempered; ZCV39NH etc.: Ceramic |
| Valve / ignition | ZCV39N etc.: Millivolt; ZCV39NE etc.: IPI PF1 |
| Viewing area | 33" W x 28-9/16" H |
| Model numbers | ZCV39N, ZCV39LP, ZCV39NE, ZCV39LPE, ZCV39NH, ZCV39LPH, ZCV39NHE, ZCV39LPHE |
Required parts and installation
To be complete, this unit needs parts from Kingsman's required steps: choose log set or glass tray and glass media (Z5GC, RBCB1, ULK2, LOGF3, ZCV39GT). Each option offered on this page is a complete configuration with the required parts included in the price. Venting is not included and is supplied by your installer.
Specifications
| Version | Natural Gas / Millivolt / Oak log set |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Natural Gas / Millivolt / Glass tray with bronze glass media |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Natural Gas / Millivolt / Glass tray with cannonballs |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Propane / Millivolt / Oak log set |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Propane / Millivolt / Glass tray with bronze glass media |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Propane / Millivolt / Glass tray with cannonballs |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Natural Gas / IPI (Proflame 1) / Oak log set |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Natural Gas / IPI (Proflame 1) / Glass tray with bronze glass media |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Natural Gas / IPI (Proflame 1) / Glass tray with cannonballs |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Propane / IPI (Proflame 1) / Oak log set |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Propane / IPI (Proflame 1) / Glass tray with bronze glass media |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
| Version | Propane / IPI (Proflame 1) / Glass tray with cannonballs |
|---|---|
| Width (in) | 39 |
| Total BTU | 28000 |
