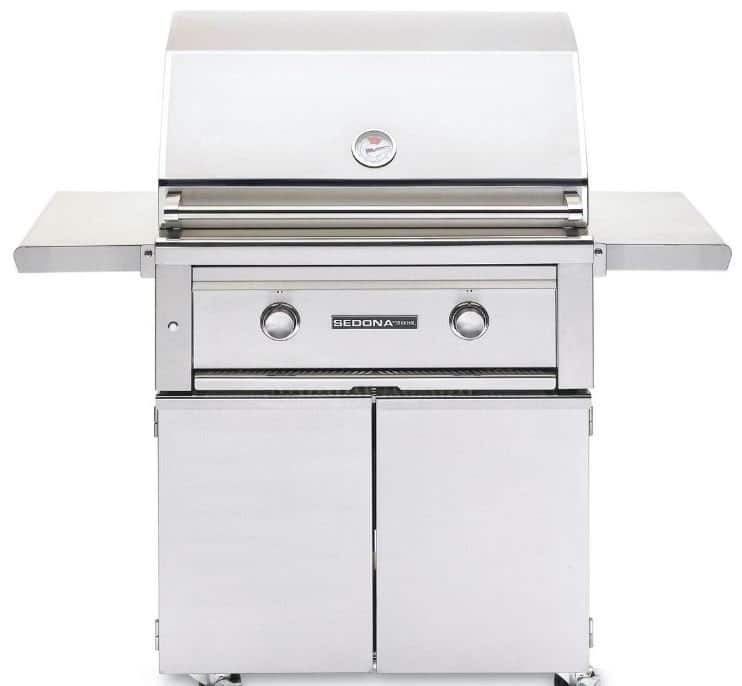

The current-generation Sedona L501 grill head paired with the matching S301 stainless cart, replacing the earlier L500 series. Lynx build quality without committing to a masonry island: two burners produce 46,000 BTUs across 733 square inches of cooking area, and the cart rolls where you need it.
- ALL SELECTIONS REQUIRED: choose Fuel Type, Rotisserie Kit and Burner Configuration - each combination is its own Lynx model number
- Sold complete as grill head plus S301CART - priced as the component sum, never as a bare cart
- Current 501-series design: redesigned drip tray with its own pull handle, additional LED lighting, satin brushed finish on the canopy edges and a brushed stainless bullnose
- Two burners deliver 46,000 BTUs over 508 square inches of primary grilling area plus a 225 square inch warming rack
- ProSear variable infrared option replaces one tube burner for steakhouse searing heat
- Locking casters, side shelves and enclosed cart storage for tank or accessories
| Models |
L501 + S301CART · L501PS + S301CART · L501PSR + S301CART |
| Overall Width |
47.875 inches |
| Depth |
25.3125 inches |
| Height |
57.687 inches |
| Weight |
230 lbs |
| Burners |
2 stainless steel tube burners, 304 grade (ProSear infrared replaces one on PS models) |
| Total BTUs |
46,000 |
| Cooking Grid |
27 x 17.75 inches |
| Grilling Area |
508 sq in main + 225 sq in secondary = 733 sq in |
| Fuel |
Natural Gas or Propane (hose and regulator included) |
| Ignition |
Continuous spark with battery backup |
| Material |
201 stainless steel, continuous welded; 304 stainless burners; ceramic flame tamers |
| Warranty |
Lifetime body · 12 years tube burners · 5 years grates, valves and manifolds · 2 years other · 1 year labor |
What's Included: Sedona L501 30-inch grill head in the selected configuration, S301 stainless steel cart with casters and side shelves, ceramic briquettes, stainless cooking grates, warming rack, hose and regulator, and rotisserie kit with motor and spit on the PSR model.
Lynx warrants the stainless steel body for the lifetime of the original purchaser, tube burners for 12 years, cooking grates, valves and manifolds for 5 years, all other components for 2 years, and includes 1 year of labor.
