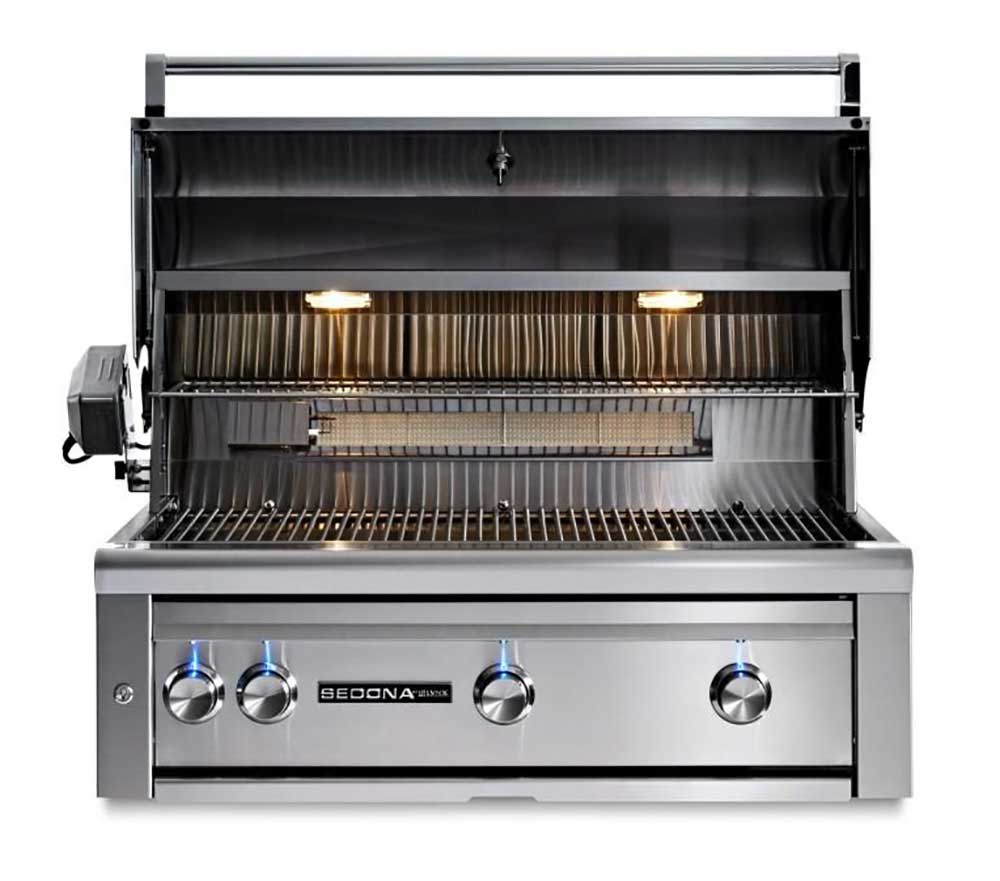

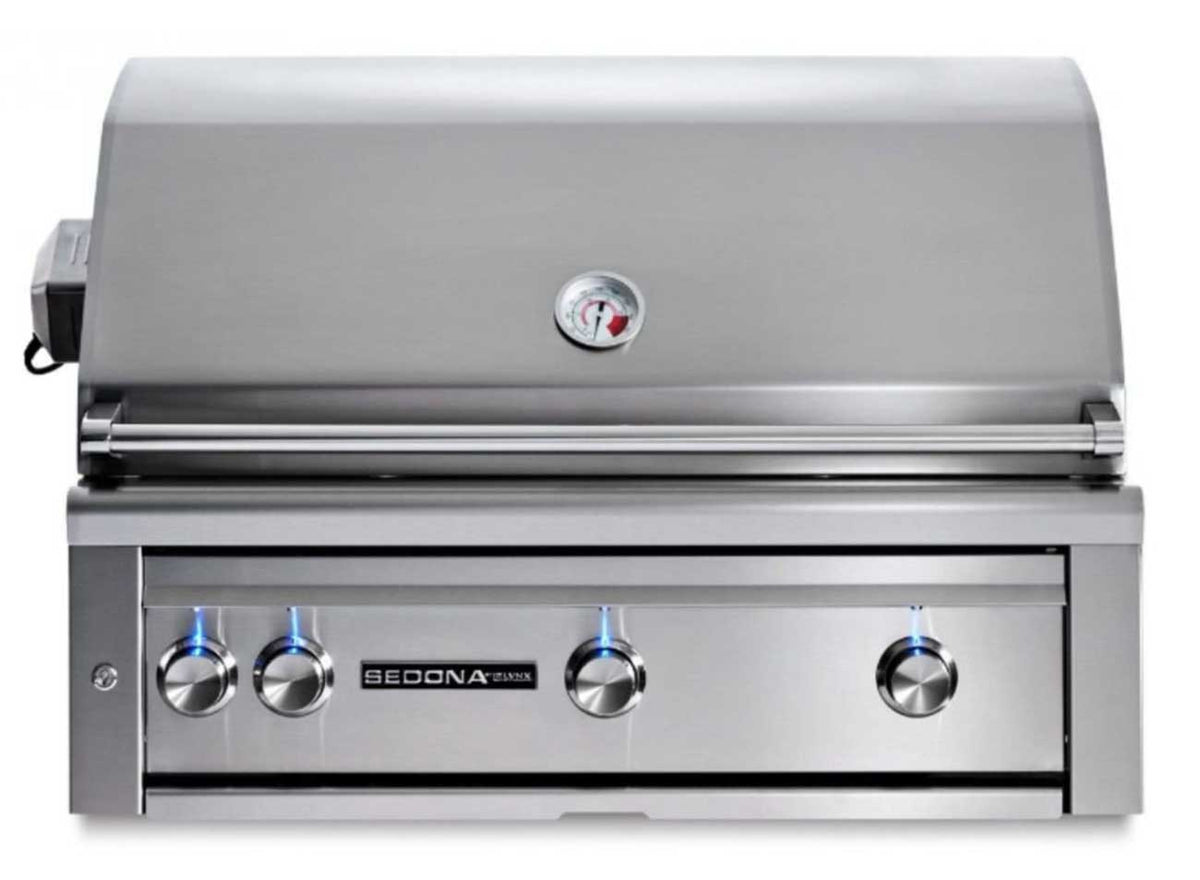

The current-generation Sedona L601 is the redesigned 36-inch built-in grill, replacing the earlier L600 series. Three burners produce 69,000 BTUs across 891 square inches of cooking area, and seamless welded 201 stainless construction eliminates the gaps where grease and moisture collect.
- ALL SELECTIONS REQUIRED: choose Fuel Type, Rotisserie Kit and Burner Configuration - each combination is its own Lynx model number
- Current 601-series design: redesigned drip tray with its own pull handle, additional LED lighting, satin brushed finish on the canopy edges and a brushed stainless bullnose
- Three burners deliver 69,000 BTUs over 617 square inches of primary grilling area plus a 274 square inch warming rack
- ProSear variable infrared option replaces one tube burner for steakhouse searing heat, and dials down for delicate seafood

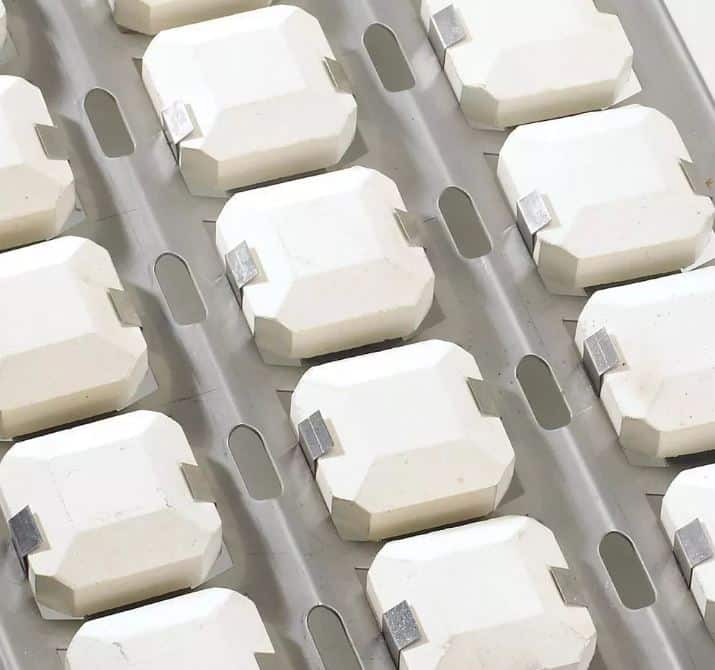

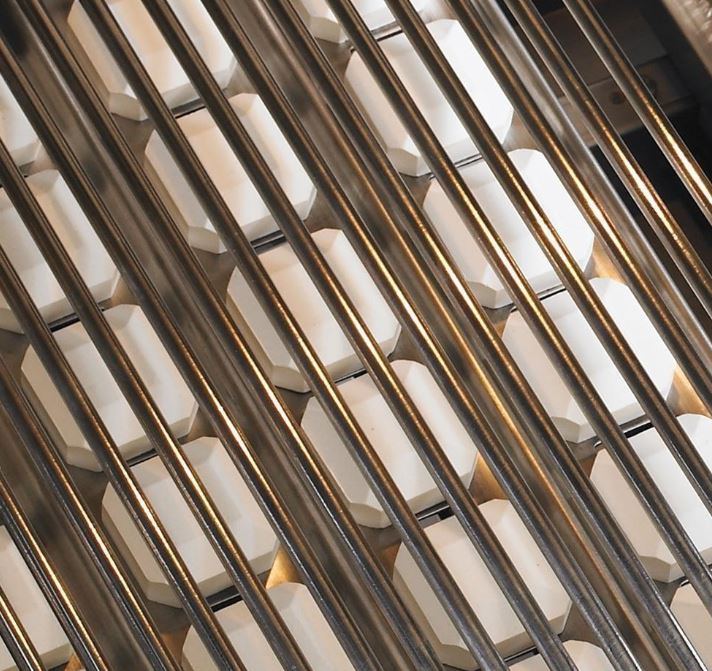

- Fixed ceramic briquettes click into place and spread heat evenly instead of flaring
- Blue LED control panel accents, internal halogen lighting and a lift-assist hood that opens with one finger
| Models |
L601 · L601PS · L601R · L601PSR (supersedes L600 · L600PS · L600R · L600PSR) |
| Width |
36 inches |
| Depth |
25.31 inches |
| Cutout (W x D x H) |
35 x 21.25 x 10 inches |
| Weight |
180 lbs |
| Burners |

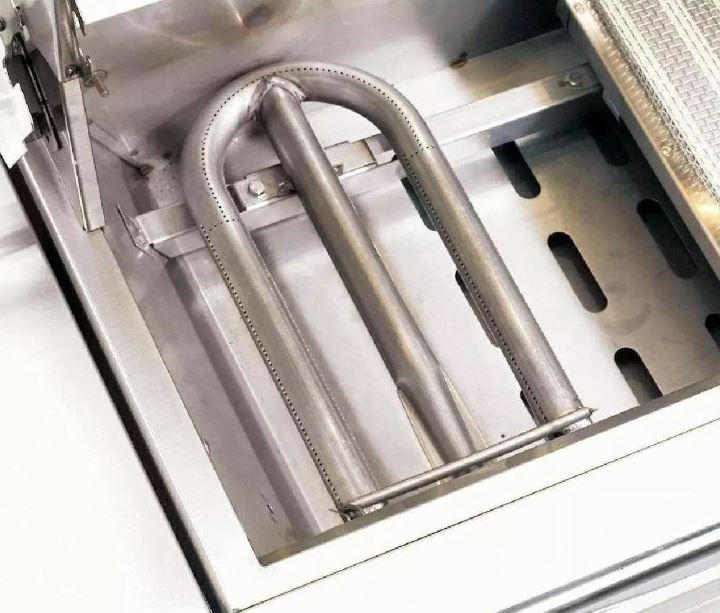

3 stainless steel tube burners, 304 grade (ProSear infrared replaces one on PS models) |
| Total BTUs |
69,000 |
| Cooking Grid |
33 x 17.75 inches |
| Grilling Area |
617 sq in main + 274 sq in secondary = 891 sq in |
| Fuel |
Natural Gas or Propane (hose and regulator included) |
| Ignition |

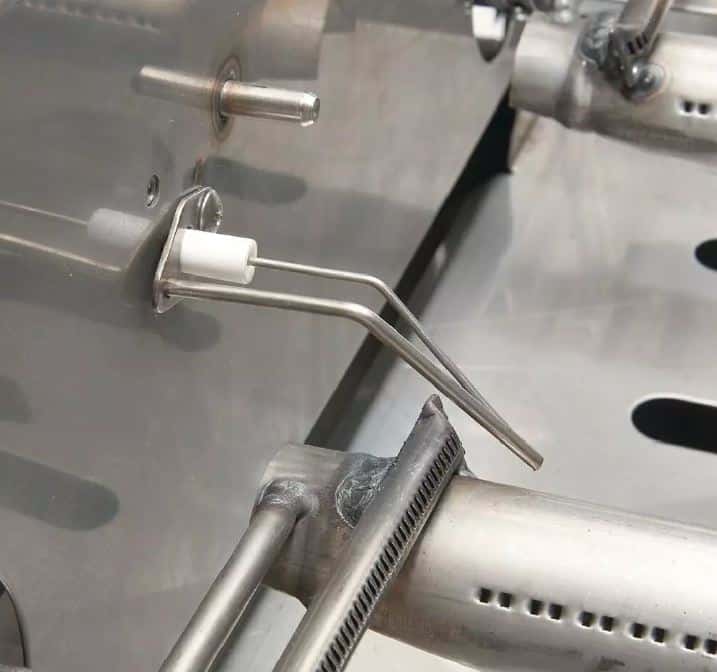

Continuous spark with battery backup |
| Material |
201 stainless steel, continuous welded; 304 stainless burners; ceramic flame tamers |
| Warranty |
Lifetime body · 12 years tube burners · 5 years grates, valves and manifolds · 2 years other · 1 year labor |
What's Included: Sedona L601 36-inch built-in grill head in the selected configuration, ceramic briquettes, stainless cooking grates, warming rack, hose and regulator, and rotisserie kit with motor and spit on R models.
Lynx warrants the stainless steel body for the lifetime of the original purchaser, tube burners for 12 years, cooking grates, valves and manifolds for 5 years, all other components for 2 years, and includes 1 year of labor.
