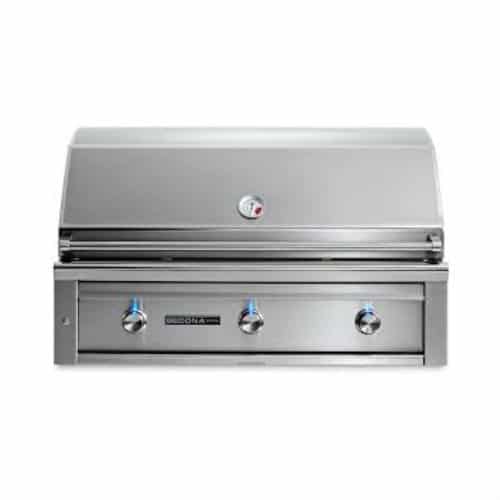

The current-generation Sedona L701 is the redesigned 42-inch built-in grill, replacing the earlier L700 series. Three burners produce 69,000 BTUs across 1,049 square inches of cooking area - the largest Sedona grill head - in seamless welded 201 stainless construction.
- ALL SELECTIONS REQUIRED: choose Fuel Type, Rotisserie Kit and Burner Configuration - each combination is its own Lynx model number
- Current 701-series design: redesigned drip tray with its own pull handle, additional LED lighting, satin brushed finish on the canopy edges and a brushed stainless bullnose
- Three burners deliver 69,000 BTUs over 728 square inches of primary grilling area plus a 321 square inch warming rack
- ProSear variable infrared option replaces one tube burner for steakhouse searing heat, and dials down for delicate seafood
- Fixed ceramic briquettes click into place and spread heat evenly instead of flaring
- Blue LED control panel accents, internal and external halogen lighting, and a lift-assist hood that opens with one finger
| Models | L701 · L701PS · L701R · L701PSR (supersedes L700 · L700PS · L700R · L700PSR) |
| Width | 42 inches |
| Depth | 24.69 inches |
| Height | 25.94 inches |
| Cutout (W x D x H) | 41 x 21.25 x 10 inches |
| Burners | 3 stainless steel tube burners, 304 grade (ProSear infrared replaces one on PS models) |
| Total BTUs | 69,000 |
| Cooking Grid | 39 x 17.75 inches |
| Grilling Area | 728 sq in main + 321 sq in secondary = 1,049 sq in |
| Fuel | Natural Gas or Propane (hose and regulator included) |
| Ignition | Continuous spark with battery backup |
| Material | 201 stainless steel, continuous welded; 304 stainless burners; ceramic flame tamers |
| Warranty | Lifetime body and ProSear infrared burner · 12 years tube burners · 5 years grates, valves and manifolds · 2 years other · 1 year labor |
What's Included: Sedona L701 42-inch built-in grill head in the selected configuration, ceramic briquettes, stainless cooking grates, warming rack, hose and regulator, and rotisserie kit with motor and spit on R models.
Lynx warrants the stainless steel body and ProSear infrared burner for the lifetime of the original purchaser, tube burners for 12 years, cooking grates, valves and manifolds for 5 years, all other components for 2 years, and includes 1 year of labor.
Documentation
Specifications
| Version | Natural Gas / Without Rotisserie Kit / All Conventional |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
| Version | Natural Gas / Without Rotisserie Kit / One Infrared |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
| Version | Natural Gas / With Rotisserie Kit / All Conventional |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
| Version | Natural Gas / With Rotisserie Kit / One Infrared |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
| Version | Propane / Without Rotisserie Kit / All Conventional |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
| Version | Propane / Without Rotisserie Kit / One Infrared |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
| Version | Propane / With Rotisserie Kit / All Conventional |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
| Version | Propane / With Rotisserie Kit / One Infrared |
|---|---|
| Grill head width (in) | 42 |
| Burners | 3 |
