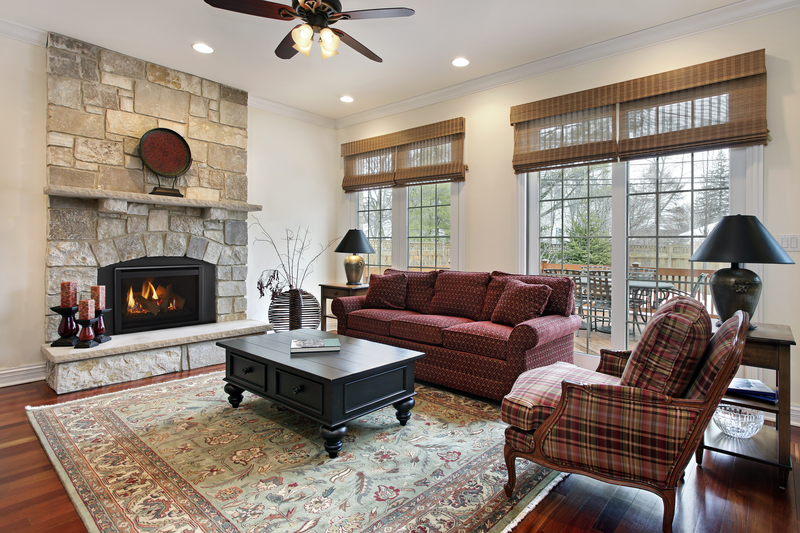

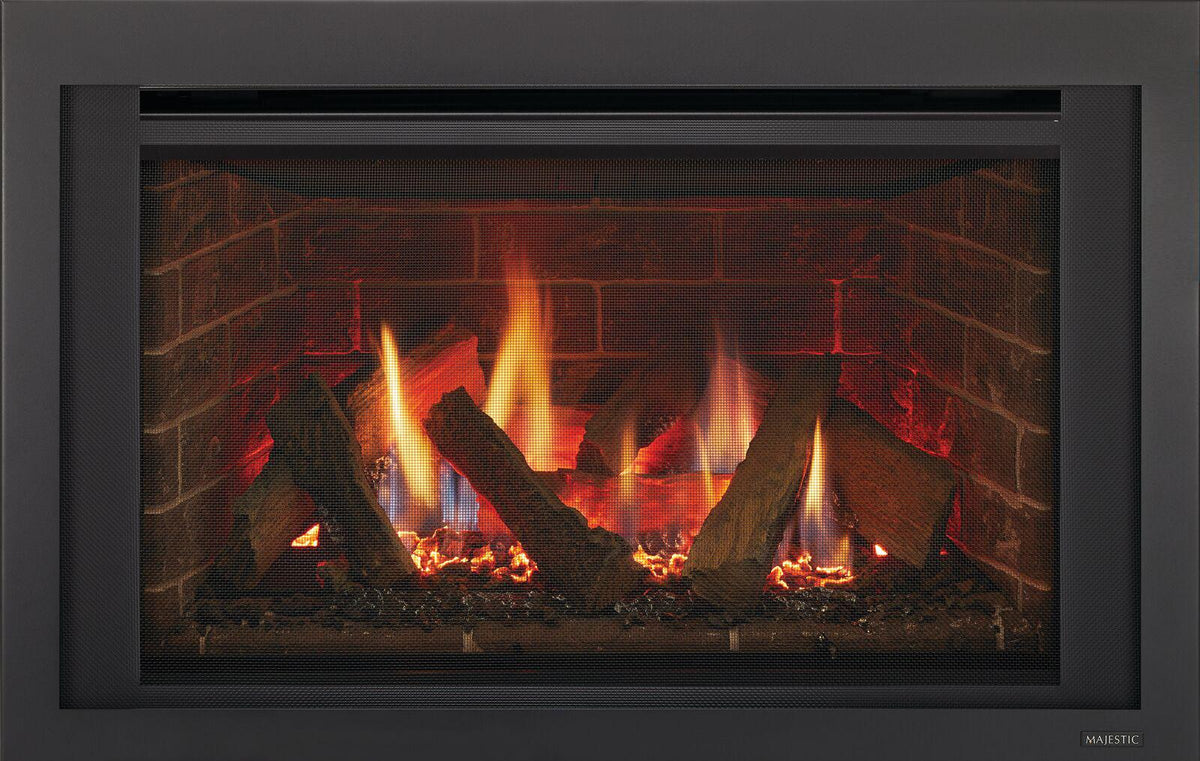

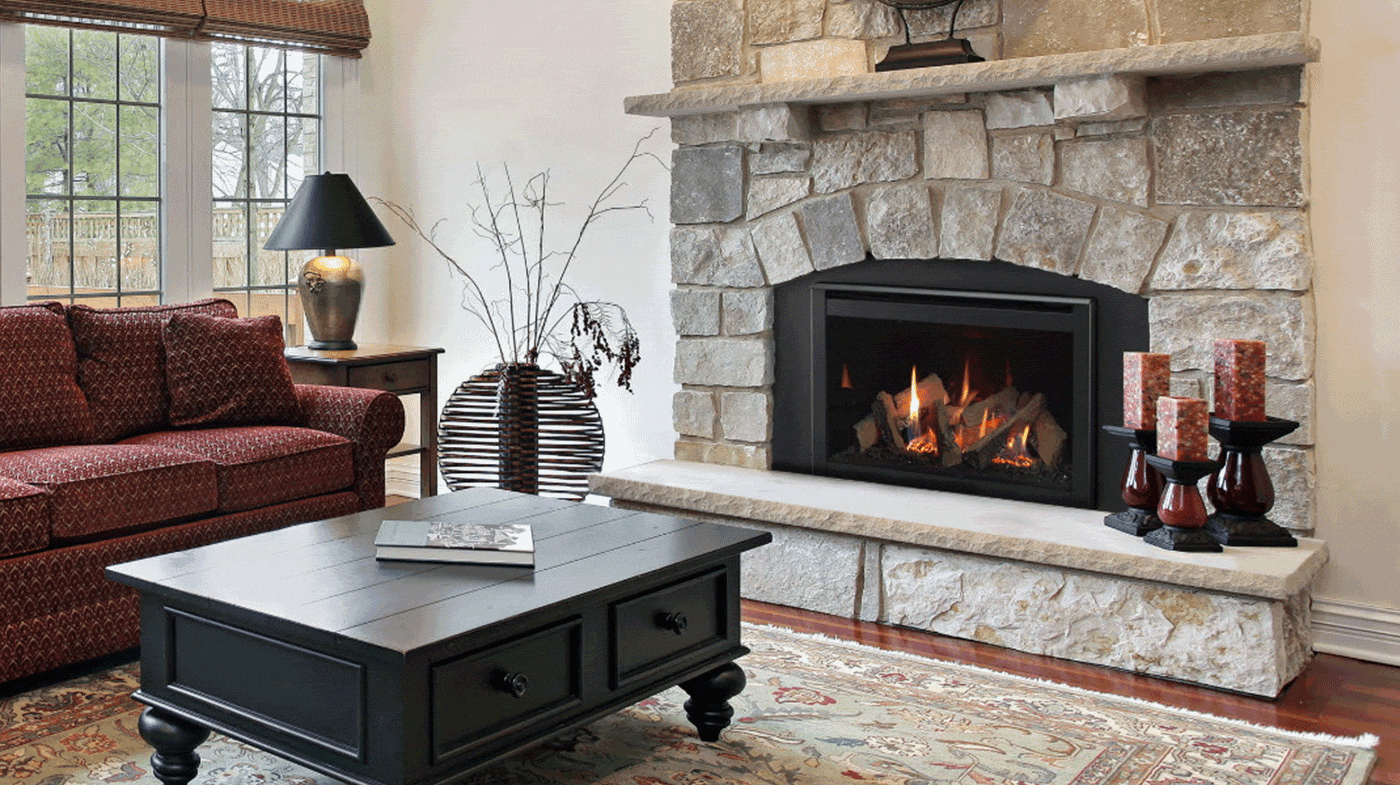

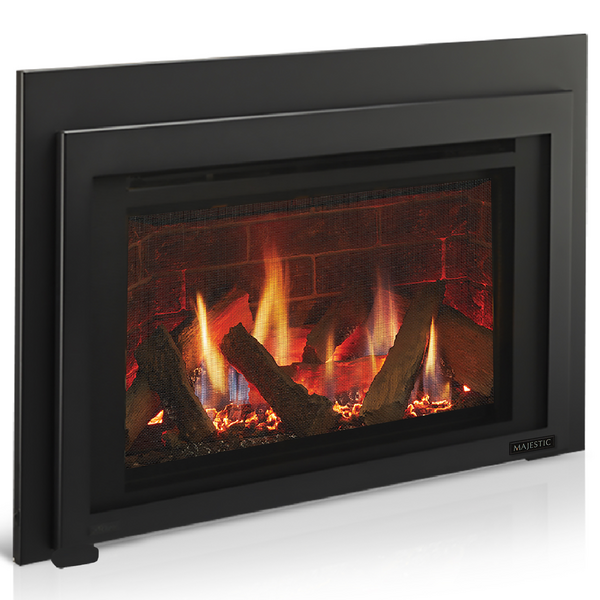

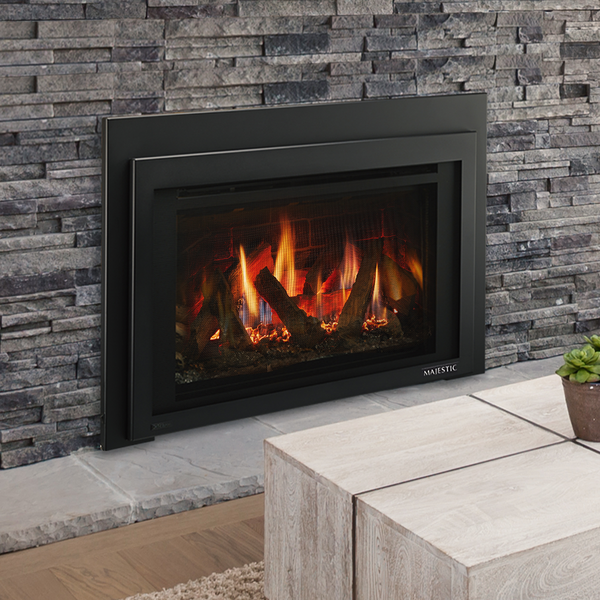

Majestic's Ruby is a direct vent gas insert that fits into an existing fireplace, bringing the ambiance and warmth of a gas flame without the mess of wood.
The IntelliFire Touch ignition system lights the pilot when the insert turns on and shuts it off when the unit is off. An integrated fan moves heat into the room, and a battery backup keeps the insert running through a power outage. The Ruby comes in natural gas or propane versions.
Key features

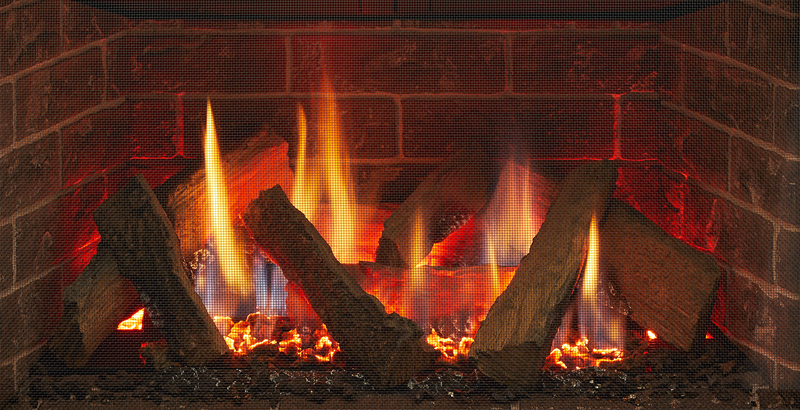

- Split-wood log set
- Decorative brick base
- IntelliFire Touch remote, docking station and auxiliary control module included
- Optional wireless wall switch or IntelliFire app control
- Optional Reflective Black Glass interior panel
- Separate venting kit, surround and front/door kit required for installation
Specifications
| Width | 26-1/8" |
| Height | 17-1/16" |
| Depth | 14-1/2" |
| BTU/hr input | 27,000 |
| Fuel | Propane or Natural Gas |
| Venting | Direct Vent |
| Ignition | IntelliFire Touch |
| Viewing area | 22-1/2" x 12-7/16" |
| Model numbers | RUBY25IL (LP), RUBY25IN (NG) |
Required parts and installation
To be complete, this unit needs one surround (MI25-3928-BK, CUST-SRND-MI, MI-USBC-RELO, MI25-3523-BK, MI25-3523-NB, MI25-3726-BK, MI25-3726-NB, MI25-3928-NB, MI25-5040CS-BK) and one front (CSFI25BK, CSFI25NB, CASFI25BK, CASFI25NB, INFIT-25-BK). Each option offered on this page is a complete configuration with these parts included in the price. Comes with IFT-RC400. Venting is not included and is supplied by your installer (the manufacturer lists LINK-DV30B, LINK-DV4-30B, LINKSQB-DV30, LINKSQB-DV4-30, LINKSQC-DV30).
Specifications and manuals
- Ruby 25 w/IFT (RUBY25IN/RUBY25IL) - Service Parts List - 25" Gas InsertOpens in a new window.
- Accessory ManualOpens in a new window.
- MI-ALK Light Kit Instructions - Metal InsertsOpens in a new window.
- BrochureOpens in a new window.
- Glass Refractory Panel Installation Instructions LINER-BK-25/30/35Opens in a new window.
- LOGS 2540, LOGS-2542, LOGS-2544 Log Instructions Ruby 25, 30, 25 w/IFTOpens in a new window.
- BrochureOpens in a new window.
- Surround - Front Instructions - Metal InsertsOpens in a new window.
- On-Site Custom Surround Instructions - Metal InsertsOpens in a new window.
- Fronts and Surrounds for Inserts - Accessory ManualOpens in a new window.
- BRICK-MI25, BRICK-MI30, BRICK-MI35 Refractory InstructionsOpens in a new window.
- Ruby 25,30,35 w/IFT Owner Manual - Gas Insert FPOpens in a new window.
- Ruby 25,30,35 w/IFT Install Manual - Gas Insert FPOpens in a new window.
- GFK-160A Blower System - Install ManualOpens in a new window.
