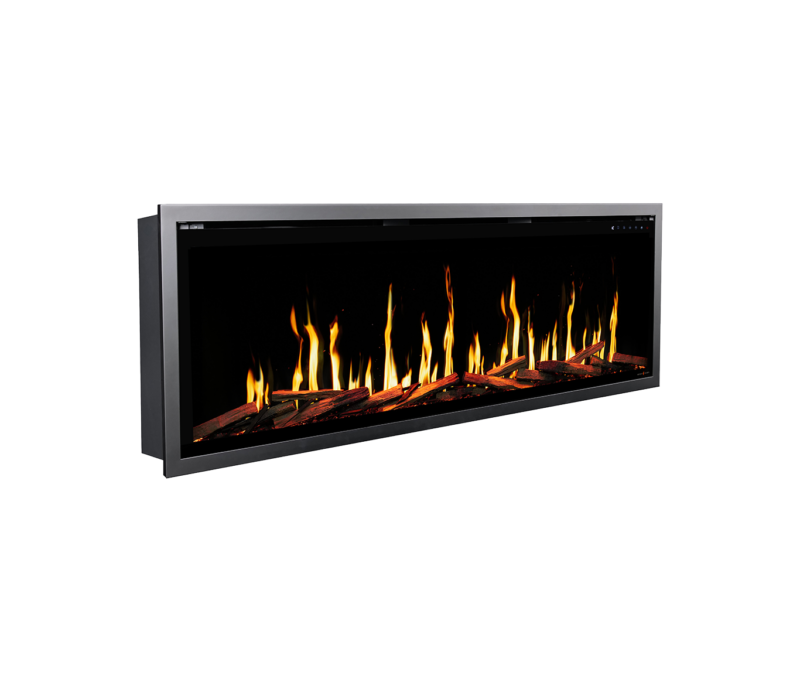

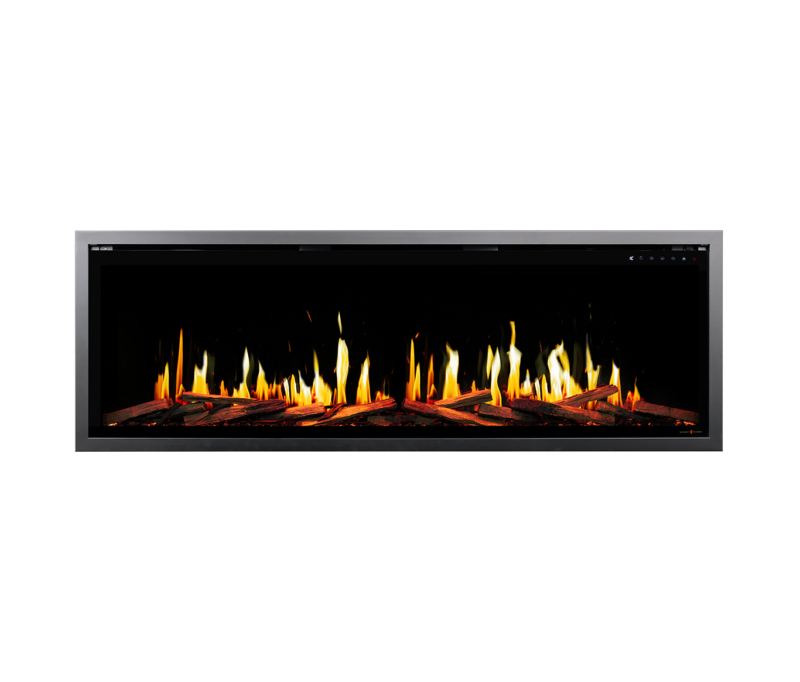

The Orion V2 Slim is the second generation of the linear fireplace that reset the category. Next-generation LCD replaces the original panel with sharper contrast, deeper blacks and adaptive brightness that reads the room, and a 5-3/4" deep chassis still drops into a standard 2x6 wall. It is approved for both indoor and outdoor installation, and the flame library keeps growing after the sale through the Modern Flames+ app.

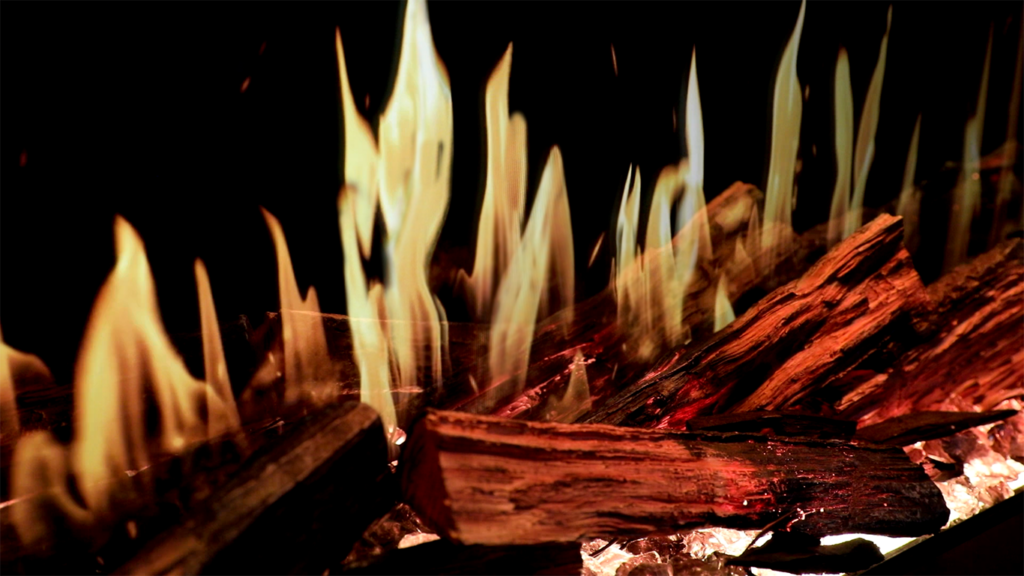

- 24 multi-dimensional flame options — three flame patterns (wood-burning, gas, hybrid) across six colours, with three-speed flame control and a ten-colour ember bed.
- Next-generation LCD with adaptive brightness — sharper contrasts and deeper blacks, with tinted front glass to cut daytime glare.
- Indoor and outdoor rated — outdoor installations must be fully built-in under a covered patio meeting the manual's protection requirements.
- Premium audio — custom speakers with Bluetooth streaming and three crackling soundscapes.
- Smart PTC ceramic heat — 5,000 BTU for rooms up to 400 sq ft, and the heater runs independently of the flame so you can use it year-round.

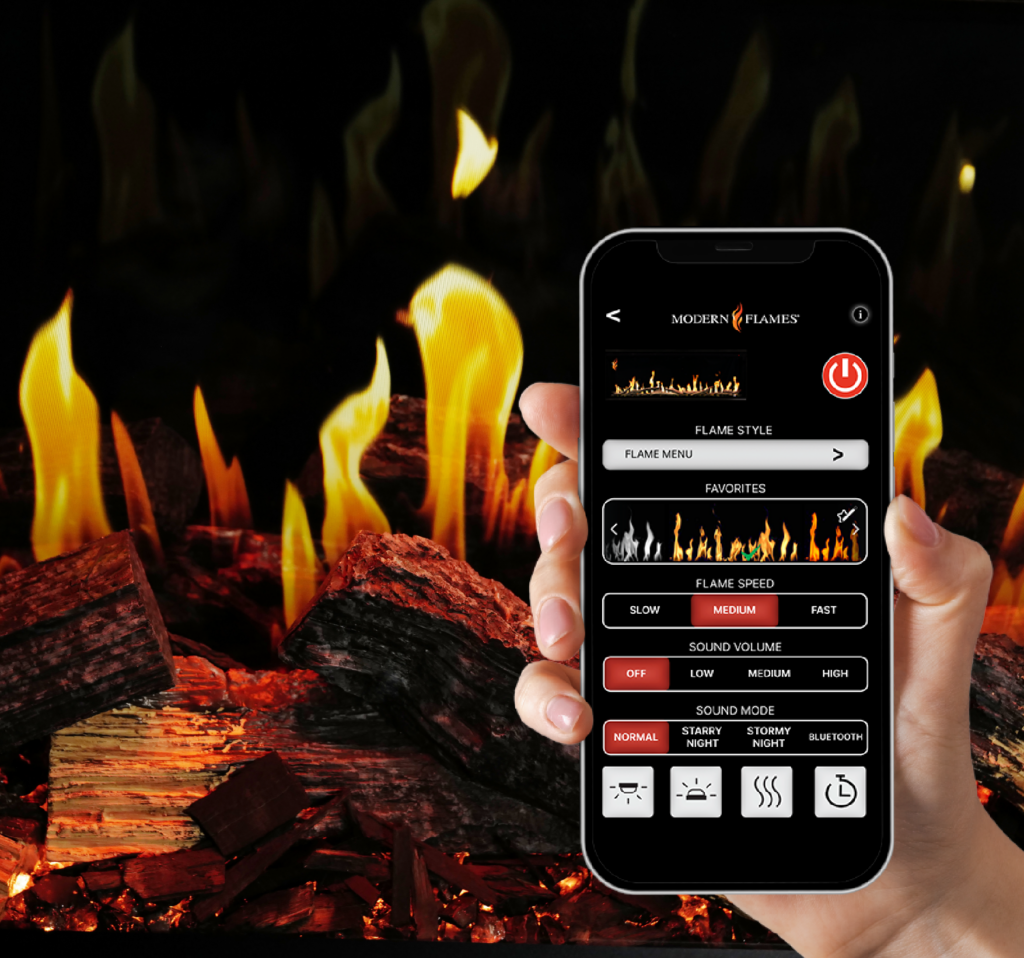

- Ever-expanding flame library — new flames and themes arrive over the air via the Modern Flames+ app.

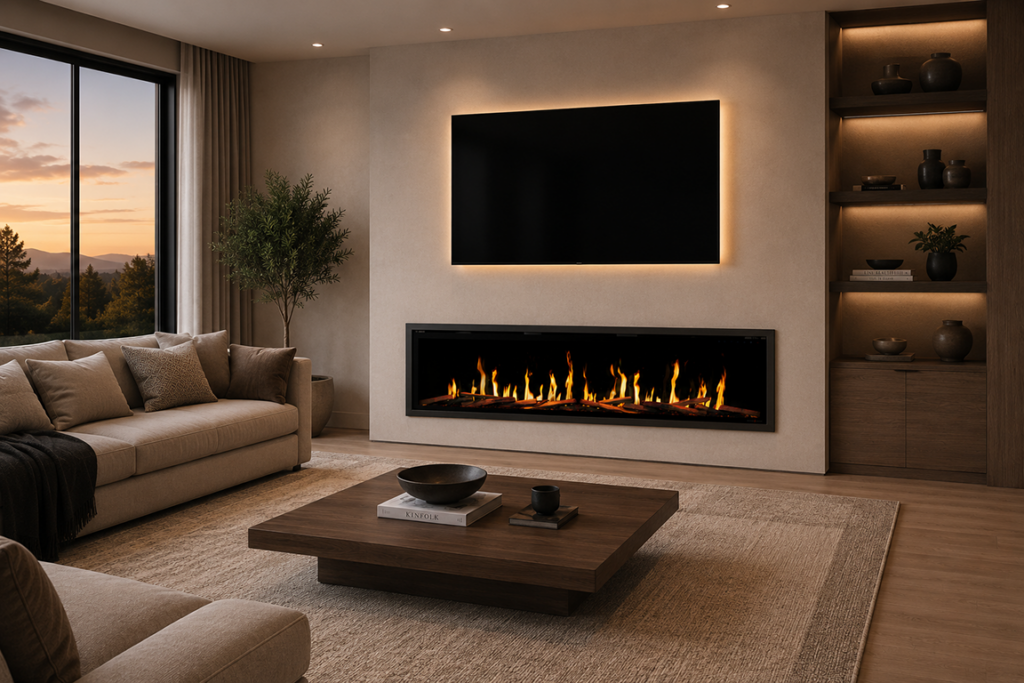

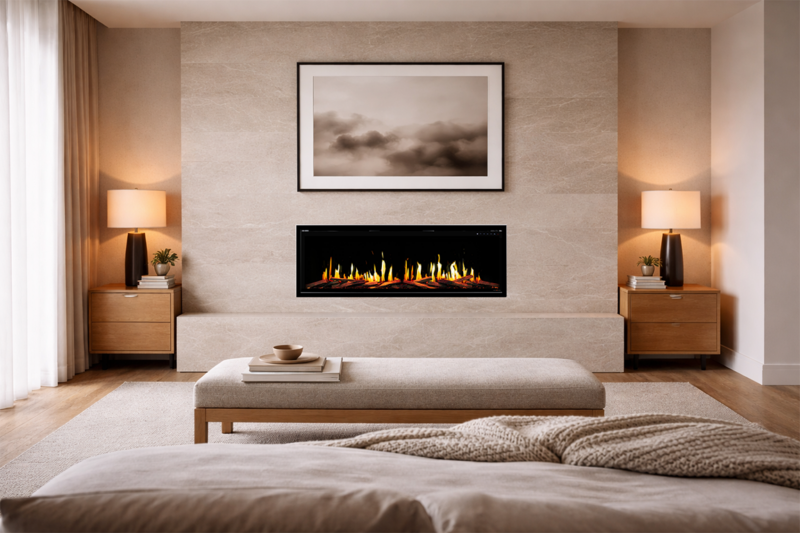

- Three installation methods — fully recessed, partially recessed, or wall-mounted 1-1/2" off the wall.
Choosing Your Configuration
Size is required. The TruWood Premium Timber Kit is optional — leave it set to "Without" for the fireplace as supplied. TruWood swaps the standard log set for real split-wood timbers and is matched to your size automatically. Surrounds are not offered for the Slim; the Slim installs clean-face with no trim kit required.
Specifications
| 52" (OR52-SLIM-V2) | 52-3/8"W x 19-5/8"H x 5-3/4"D · viewing 47-7/8" x 14-3/8" · 105 lbs |
| 60" (OR60-SLIM-V2) | 60"W x 19-5/8"H x 5-3/4"D · viewing 55-1/2" x 14-3/8" · 119 lbs |
| 76" (OR76-SLIM-V2) | 76-5/8"W x 19-5/8"H x 5-3/4"D · viewing 72-3/16" x 14-3/8" · 137 lbs |
| 100" (OR100-SLIM-V2) | 101"W x 19-5/8"H x 5-3/4"D · viewing 96-7/16" x 14-3/8" · 186 lbs |
Framing / Rough Opening
| 52" | 50-3/4"W x 19-1/8"H x 6" minimum depth |
| 60" | 58-1/2"W x 19-1/8"H x 6" minimum depth |
| 76" | 75-1/8"W x 19-1/8"H x 6" minimum depth |
| 100" | 99-1/2"W x 19-1/8"H x 6" minimum depth |
| Built-in minimum depth | 6-1/2" |
Confirm framing against the dimensional drawing for your exact size before building the opening.
| Electrical | 120V, 20A dedicated circuit, 1,465 W |
| Heat output | 5,000 BTU — heats up to 400 sq ft |
| Heater type | PTC ceramic, operates independently of the flame |
| Flame technology | Next-generation LCD, 24 flame options, 6 colours, 3 patterns |
| Ember bed | 10 colours plus Fade Mode |
| Audio | Custom speakers, Bluetooth streaming, 3 crackling soundscapes |

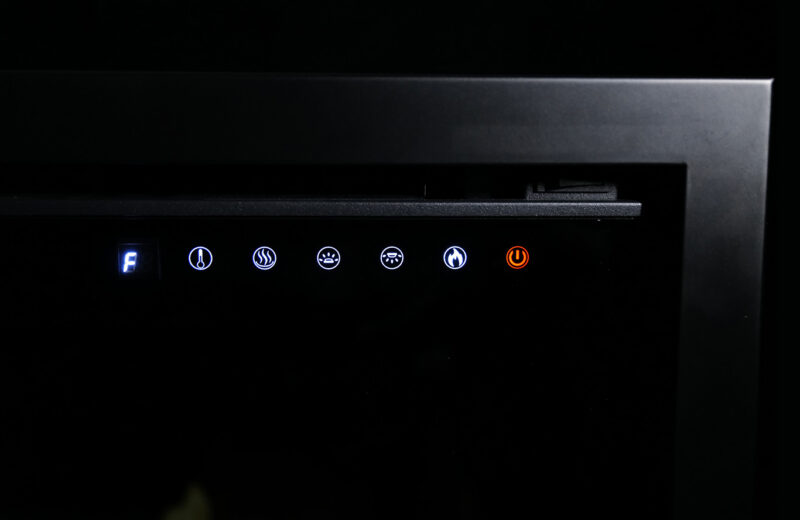

| Controls | Remote, on-unit touch panel, Modern Flames+ app, Alexa and Google Home |
| Timer | 8 hour |
| Indoor / outdoor | Approved for both; outdoor requires built-in installation under cover |
| Warranty | 5 years |
What's Included
- Orion V2 Slim fireplace

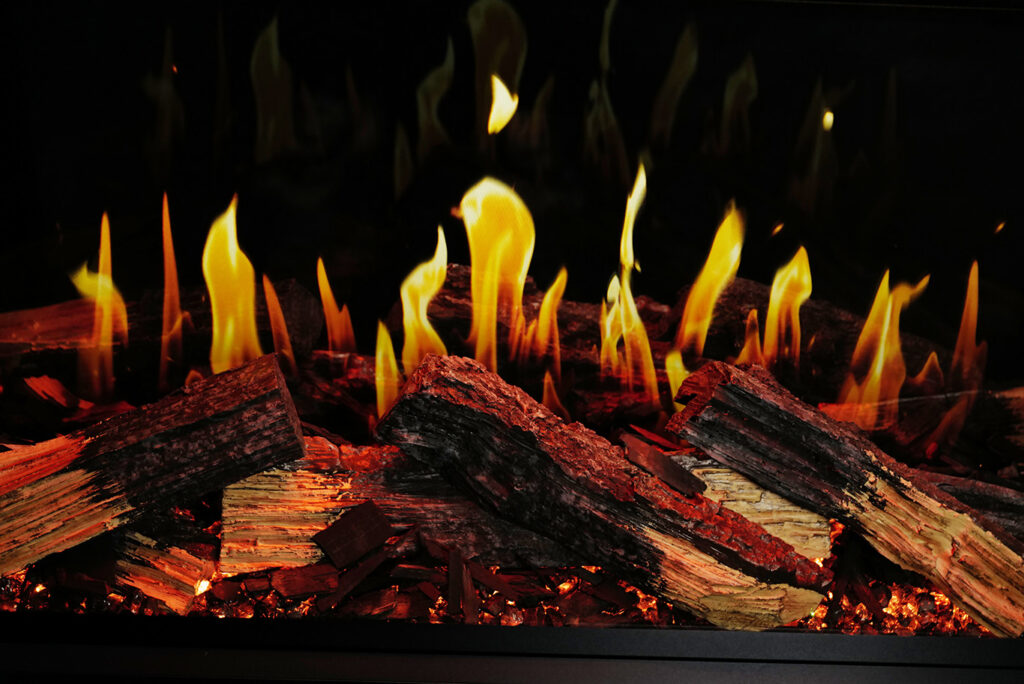

- Lit log set and black reflective crushed glass media
- Remote control
- Installation manual
- TruWood Premium Timber Kit if selected above
Spec Sheet | Installation Manual | Owner's Manual
Dimensional drawings: 52" · 60" · 76" · 100"
Warranty: Modern Flames covers the Orion V2 Slim with a 5-year warranty and dedicated factory support. Installation must follow the manual exactly — in particular, outdoor installations are approved only in a fully built-in configuration under adequate cover.
