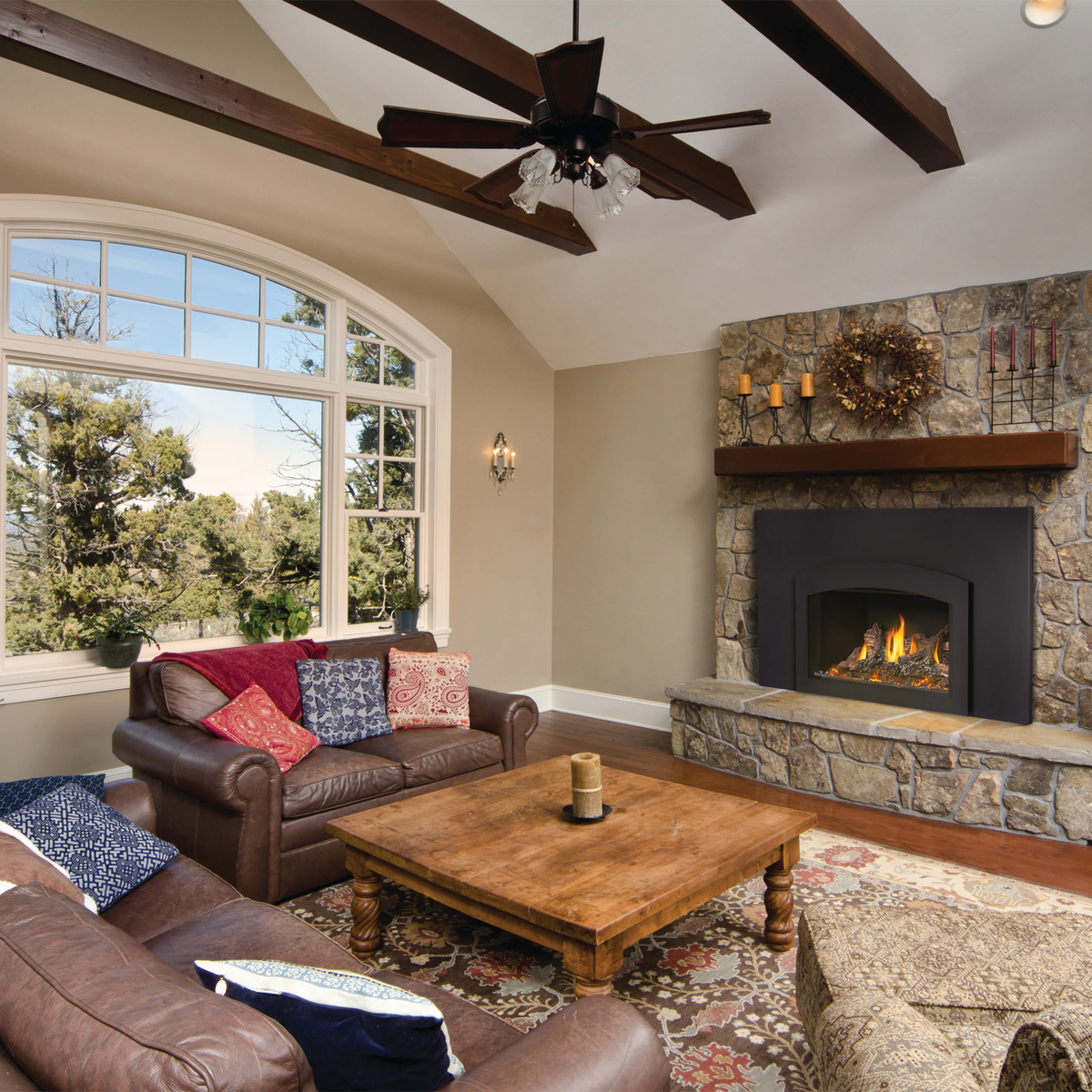

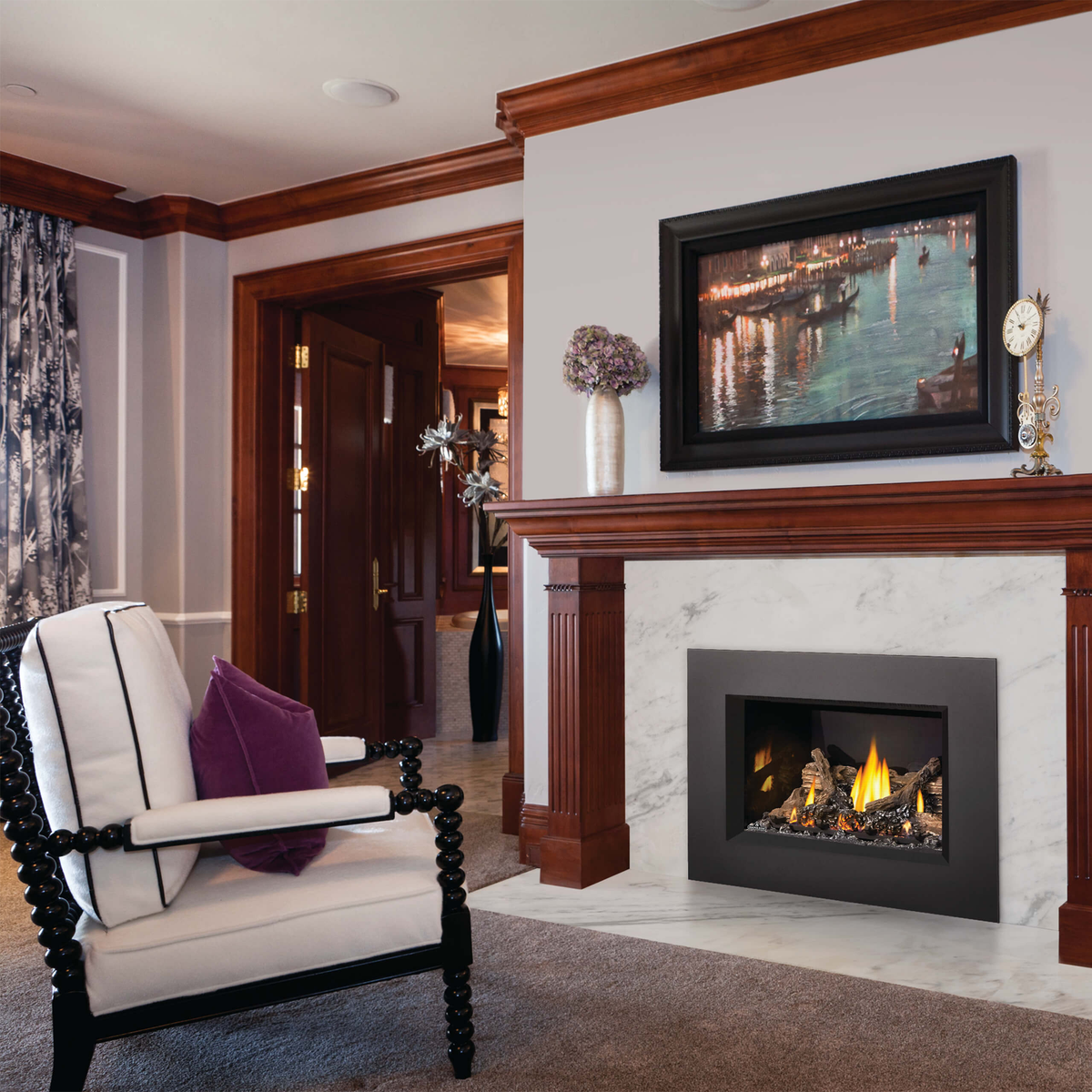

The Oakville™ X3 drops into an existing masonry or factory-built wood fireplace and turns it into a sealed, thermostat-controlled gas heater. A high-performance burner throws up to 30,000 BTU behind heat-radiating ceramic glass, the blower kit and eFIRE Bluetooth controller come included, and the whole opening is finished with a faceplate and backerplate of your choosing. It is the standard fix for a cold, drafty brick fireplace in a New York City brownstone, a Long Island colonial or a New Jersey ranch.
Key Features
- Up to 30,000 BTU/h from a high-performance "H" style burner with a full flame display
- Blower kit included — a heat-circulating blower pushes warm air into the room instead of up the chimney
- eFIRE Bluetooth controller and remote included, plus battery back-up control so it runs in a power outage
- 340 square inches of heat-radiating ceramic glass with flame and heat adjustment
- Split oak logs included — upgrade to birch or driftwood if you prefer
- President's Limited Lifetime Warranty on the combustion chamber
Choosing Your Configuration

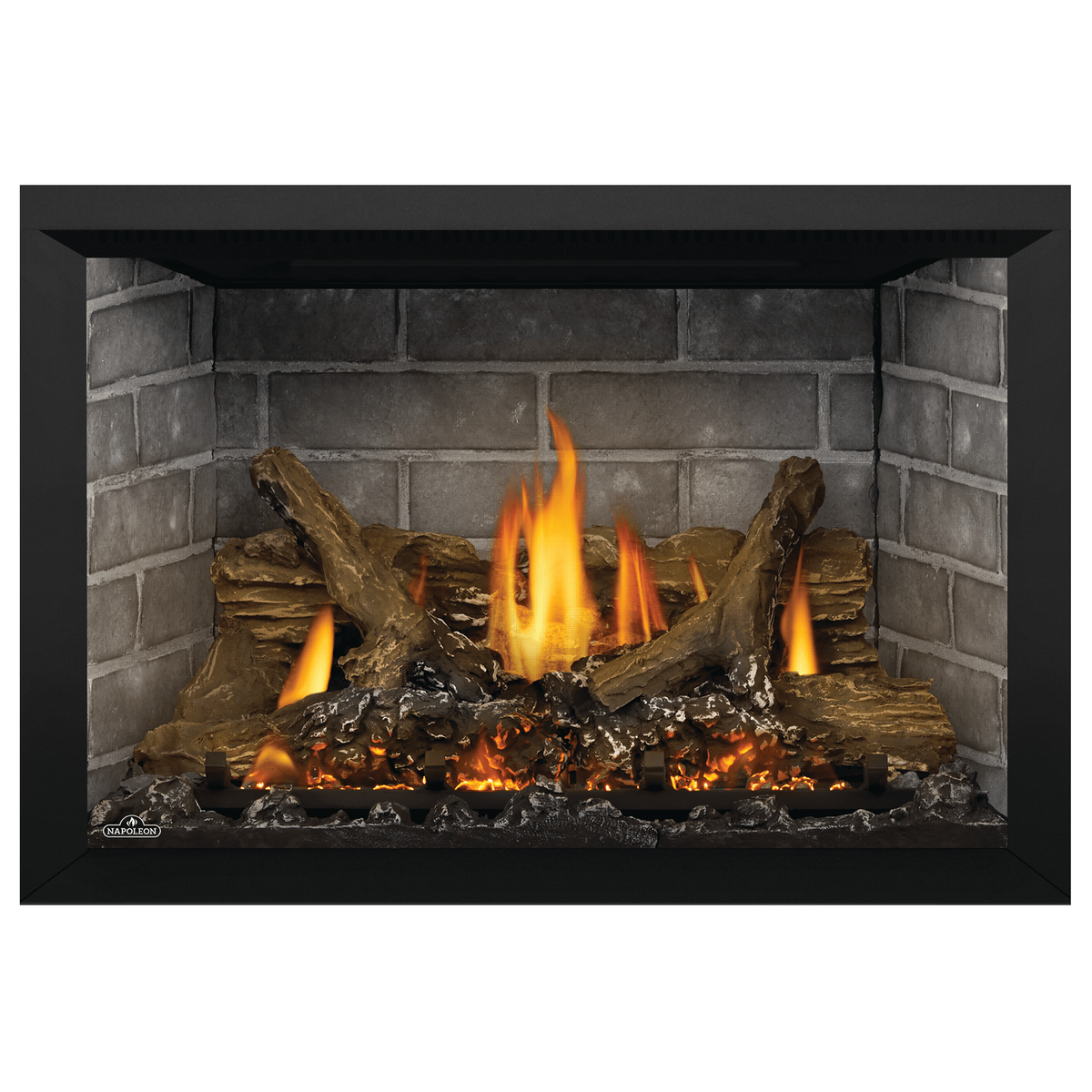

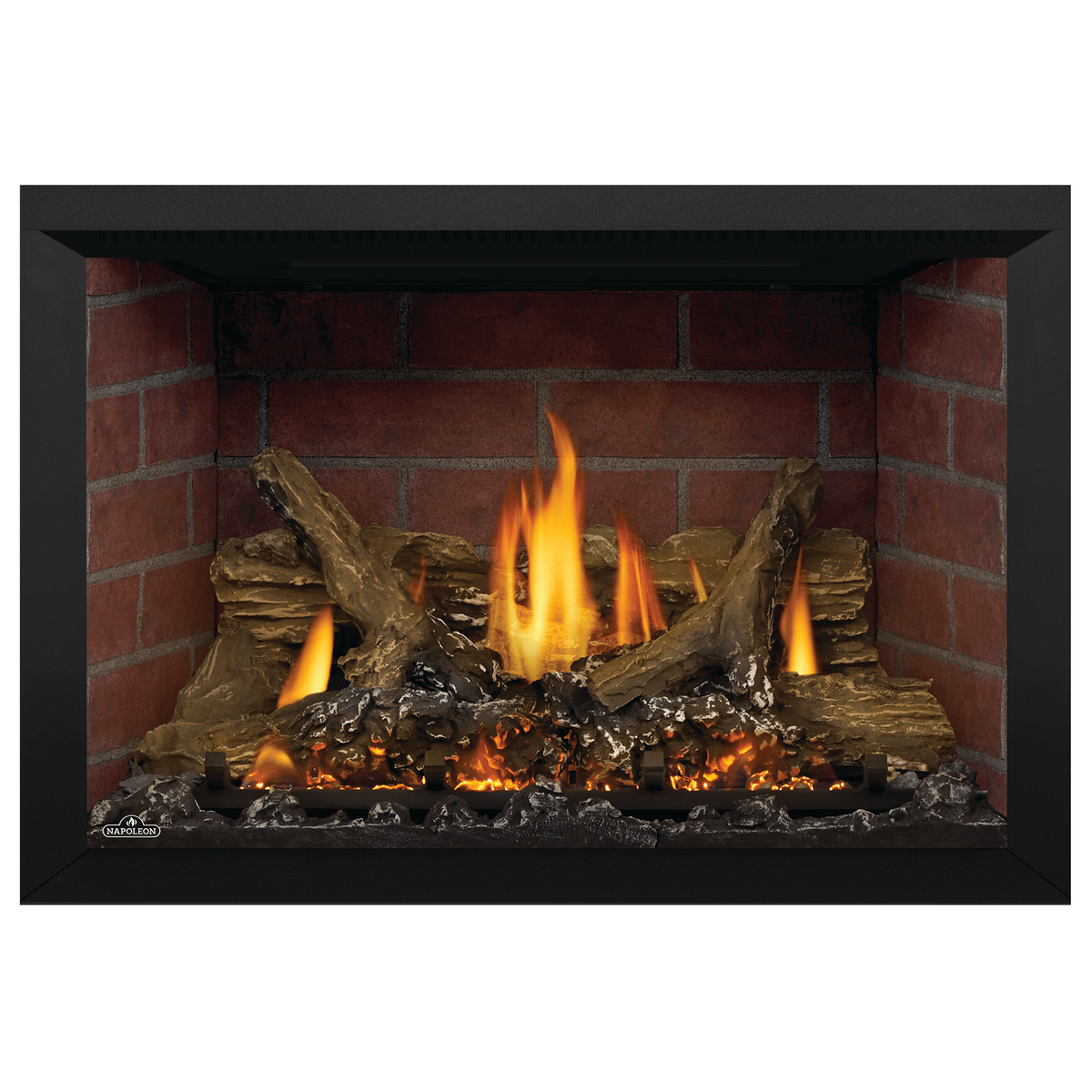

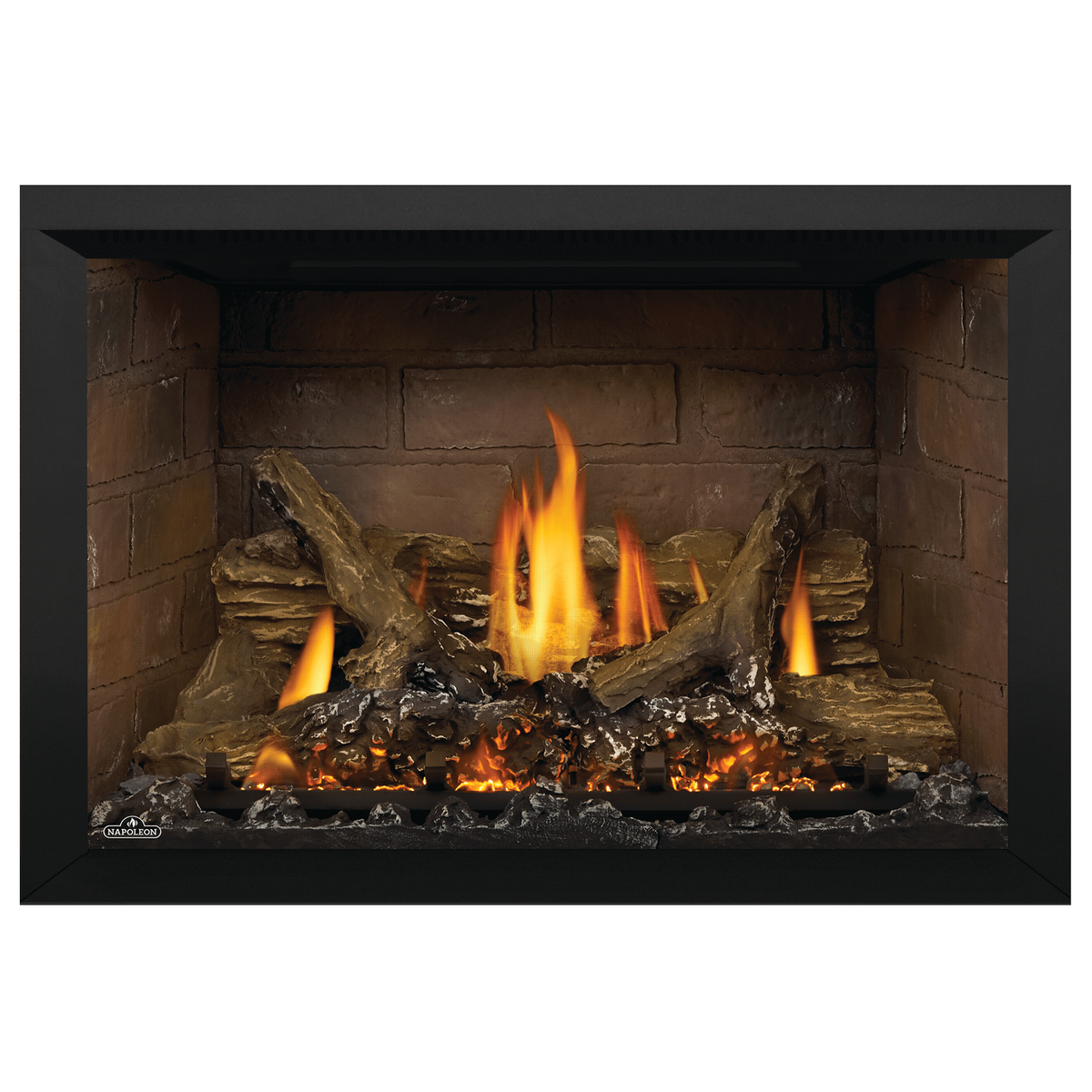

Decorative Panels are required — you must choose one. The firebox is finished with either MIRRO-FLAME™ reflective black porcelain, which brightens and deepens the fire, or one of the standard brick panel patterns. Log Set is optional: split oak logs ship with the insert, and birch or driftwood are available as upgrades. Faceplate & Backerplate is optional but is what visually closes the gap between the insert and your existing fireplace opening — each set here pairs a faceplate with the matching 4-sided backerplate so the trim is complete. Old Town Red™ brick panels, 3-sided faceplate and backerplate combinations, copper and gun metal faceplate finishes, the black cast iron surround, and a riser box are also available; ask us to quote any of those and we will add them to your order.
A direct vent kit is required to complete this installation and is sold separately. The Oakville™ X3 vents through 3-inch co-linear flexible liners run up your existing chimney, with kits available up to 45 feet. A stainless steel flex connector is included. Natural gas to propane conversion kits are available separately.
Specifications
| Model | GDIX3N-1 |
| Maximum Output | Up to 30,000 BTU/h |
| Viewing Area | 340 sq in |

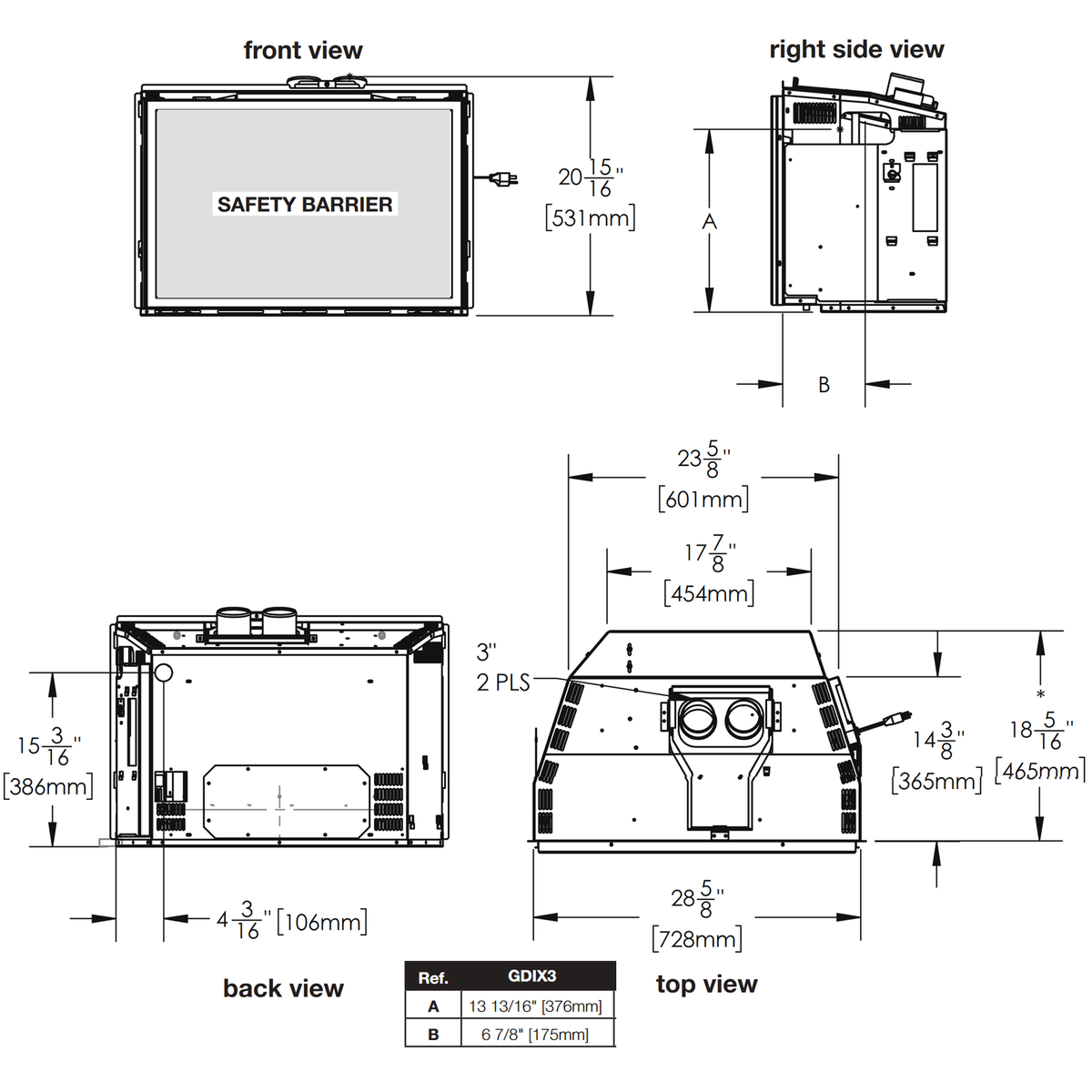

| Dimensions | 28.63 in W x 20.94 in H x 18.31 in D |
| Venting | Direct vent, 3 in co-linear liners (kits to 45 ft) |
| Ignition | Electronic with battery back-up |
| Fuel | Natural Gas (propane conversion kit available) |
| Installation | Insert — existing fireplace required |
| Warranty | President's Limited Lifetime |
What's Included
- Oakville™ X3 direct vent gas insert with heat-radiating ceramic glass
- Heat-circulating blower kit
- eFIRE Bluetooth advanced controller
- ProFlame II remote control
- Split oak log set
- Stainless steel flex connector
- Selected decorative panels, log set, faceplate and backerplate as configured above
Documentation
Warranty
The Oakville™ X3 is covered by Napoleon's President's Limited Lifetime Warranty against defects in workmanship and materials on the combustion chamber. Installation by a licensed gas technician, with a chimney inspection and a correctly sized direct vent liner kit, is required to keep coverage in force.
