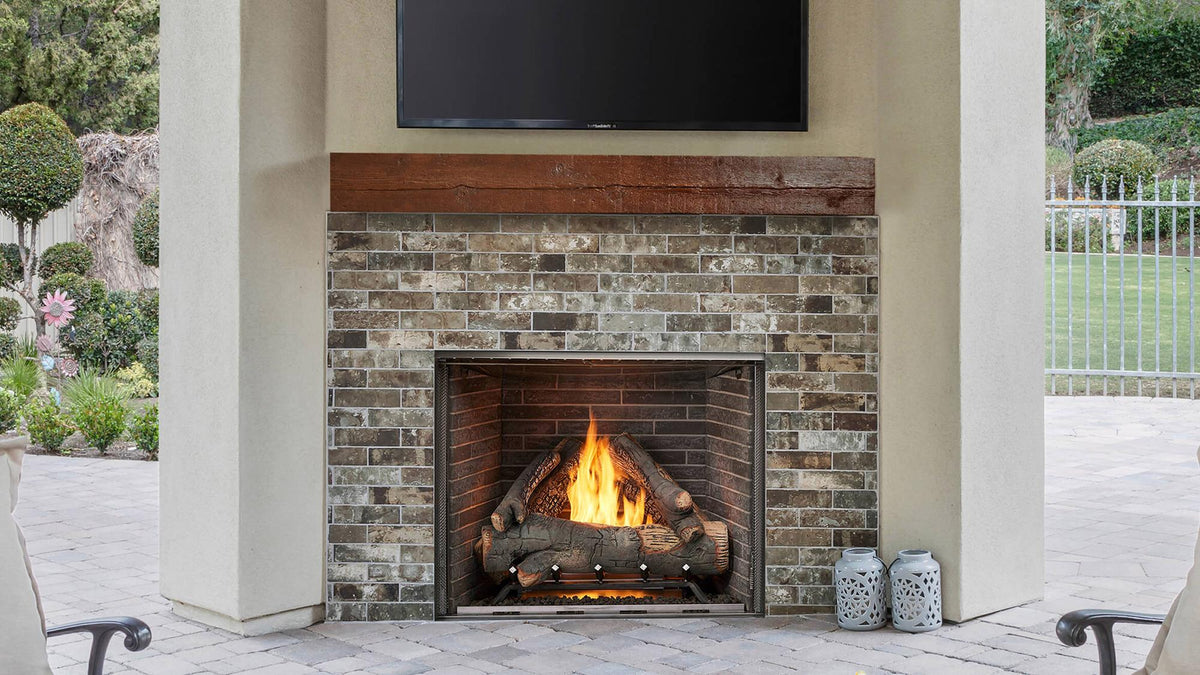

The Outdoor Lifestyles Courtyard is a single-sided outdoor gas fireplace with front venting for outdoor installation. An IntelliFire ignition system lights the fireplace and continually monitors ignition for safe operation. A wall switch turns the fireplace on and off.
One version comes with a Traditional Stacked Concrete Refractory already in place, while the other requires a refractory panel selected separately. Interior panel choices range from stainless steel to traditional or herringbone brick, so the owner can match the fireplace to the style of the space. The stainless-steel construction resists rust for reliable outdoor use.
Key features
- IntelliFire ignition system monitors ignition continuously for safe operation
- Wall switch for on/off control
- Drain pan protects the burner and ignitor assembly from water buildup
- Interior panel options include stainless steel, traditional brick or herringbone brick
- The other version requires a refractory panel, chosen separately, to complete the unit
Specifications
| Width | 42" |
| Height | 34" |
| Depth | 20" |
| BTU/hr input | 55,000 |
| Fuel | Gas |
| Venting | Front Vent - Outdoor |
| Ignition | IntelliFire |
| Viewing area | 36" X 30 |
| Model numbers | ODCOUG-36NR, ODCOUG-36TS |
Required parts and installation
To be complete, this unit needs one refractory panel set (ODCOUG-36GHR, ODCOUG-36SSL, ODCOUG-36BHR, ODCOUG-36BKHR, ODCOUG-36BKTR, ODCOUG-36BTR, ODCOUG-36GTR) and one grate kit (GR-ODCOUG) and one log set (HDLOGS-ODCOUG, SDLOGS-ODCOUG). Each option offered on this page is a complete configuration with these parts included in the price.
Specifications
| Version | Refractory Sold Separately / Standard definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Stainless Steel Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / High definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Gray Herringbone Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / High definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Stainless Steel Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / High definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Brown Herringbone Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / High definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Black Herringbone Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / High definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Black Traditional Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / High definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Brown Traditional Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / High definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Gray Traditional Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / Standard definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Gray Herringbone Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / Standard definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Brown Herringbone Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / Standard definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Black Herringbone Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / Standard definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Black Traditional Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / Standard definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Brown Traditional Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Refractory Sold Separately / Standard definition log set, requires GR-ODCOUG to complete / 36" Courtyard Outdoor Fireplace, Gray Traditional Refractory |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Traditional Stacked Concrete / High definition log set, requires GR-ODCOUG to complete / Not required |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
| Version | Traditional Stacked Concrete / Standard definition log set, requires GR-ODCOUG to complete / Not required |
|---|---|
| Width (in) | 36 |
| Total BTU | 55000 |
Specifications and manuals
- Architect GuideOpens in a new window.
- Install ManualOpens in a new window.
- Owners ManualOpens in a new window.
- Accessory ManualOpens in a new window.
- Accessory ManualOpens in a new window.
- Service Part ListOpens in a new window.
- Accessory ManualOpens in a new window.
- Accessory ManualOpens in a new window.
- BrochureOpens in a new window.
