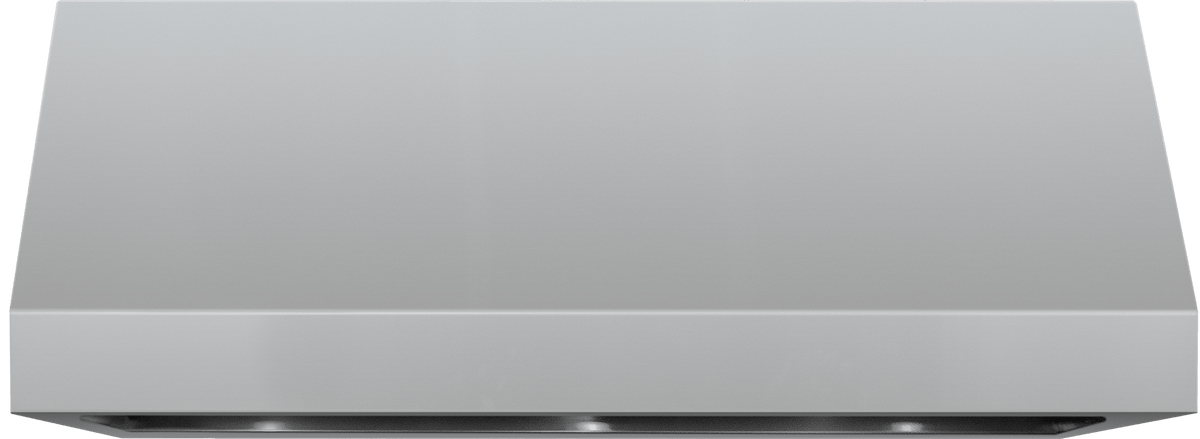

The Summerset VH48-3 pulls smoke, heat, and cooking odors up and out of a covered outdoor kitchen, keeping the space under your pergola, pavilion, or patio roof clear and comfortable to cook in. Dual internal motors move 2,000 CFM through cleanable commercial-grade baffle filters, while double-lined #304 stainless steel construction stands up to year-round outdoor exposure. Four LED lights and four-speed control put the right amount of light and airflow over the grill at the touch of a button.
- 2,000 CFM dual-motor blower clears smoke and odors quickly, even over a high-BTU grill running wide open.

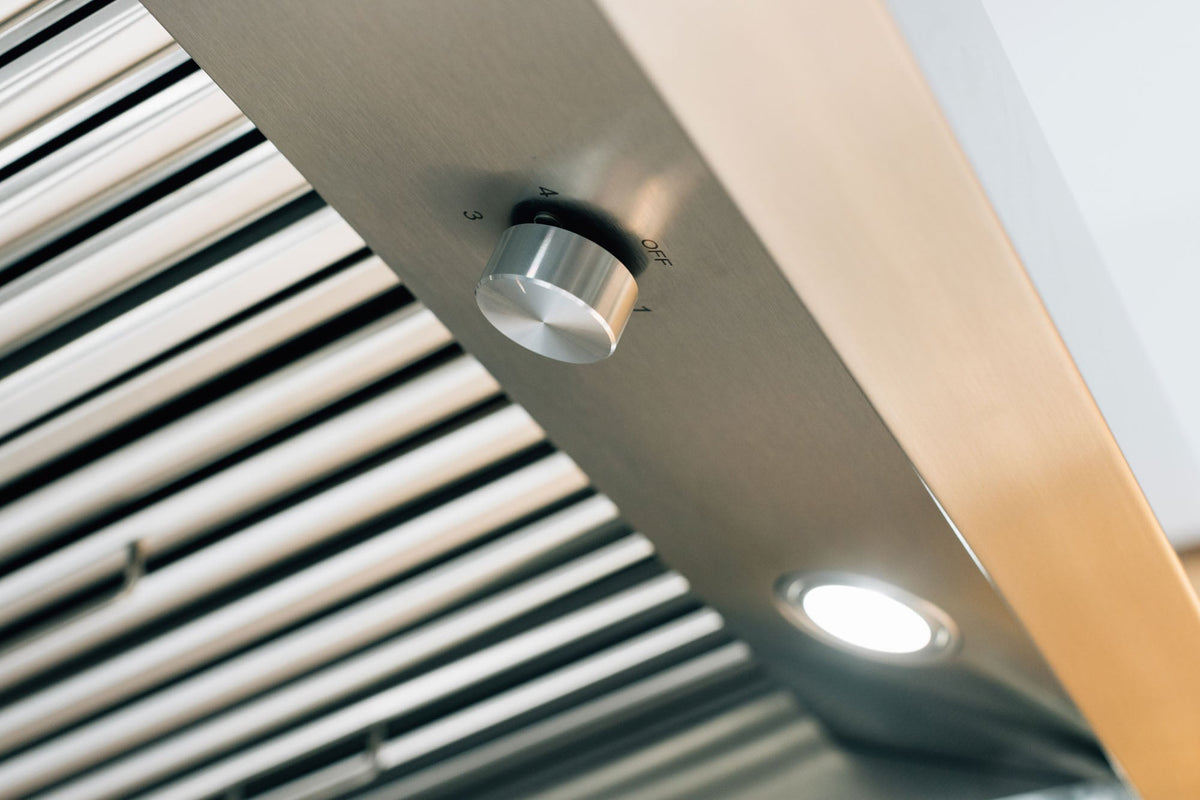

- Four-speed adjustable control matches airflow to the cook, from a low setting for slow smoking to full power for searing.
- Quiet 62 dB operation keeps conversation comfortable while the hood is running.

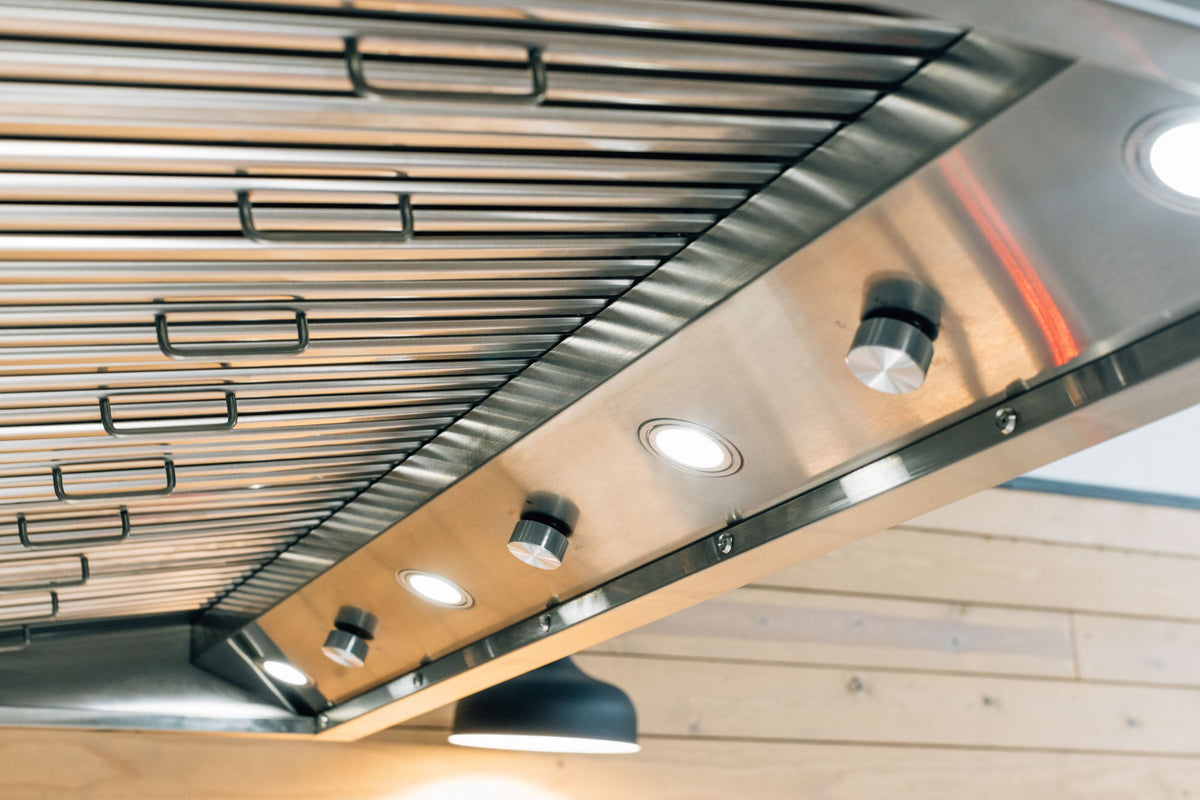

- Four LED lights deliver bright, even illumination across the entire cooking surface after dark.
- Double-lined #304 stainless steel resists rust and discoloration through coastal salt air and freeze-thaw winters.

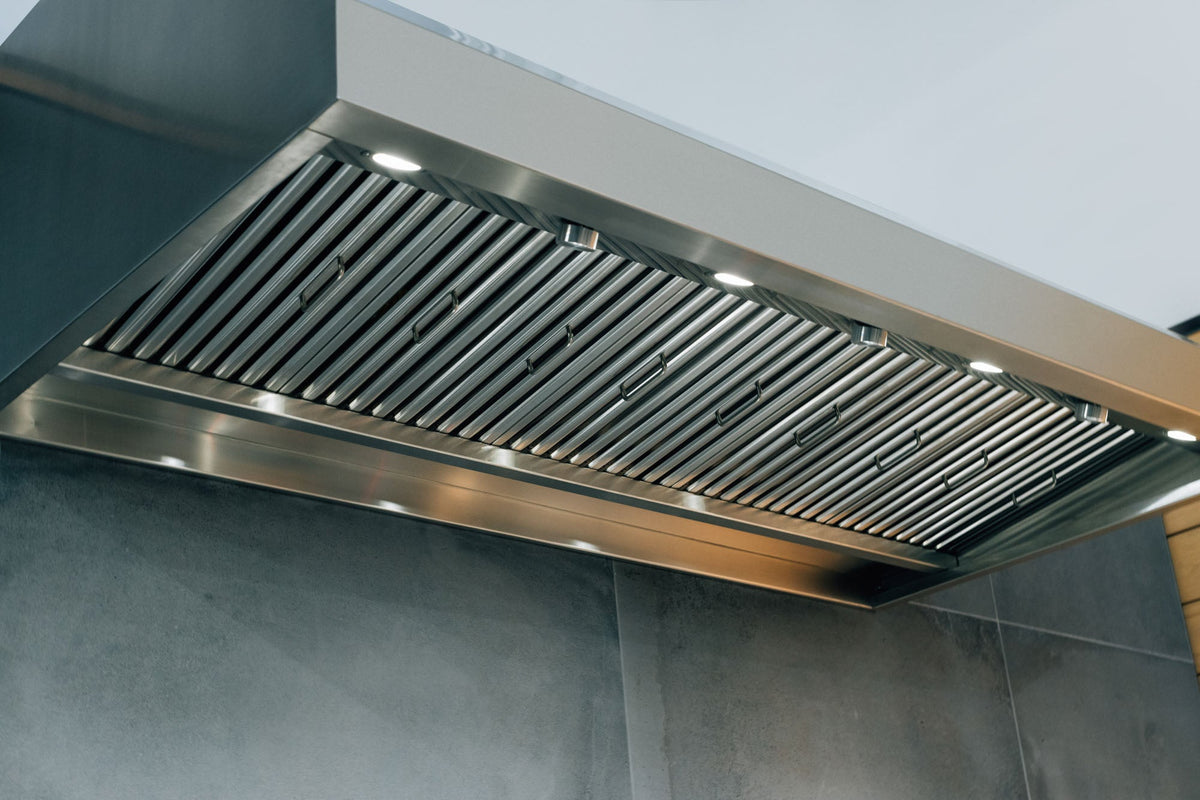

- Cleanable commercial-grade baffle filters lift out for washing, so there are no disposable filters to replace.
Specifications
| Model | VH48-3 |
| Overall Width | 48 inches |
| Overall Depth | 30 inches |
| Overall Height | 18 inches |
| Airflow | 2,000 CFM |

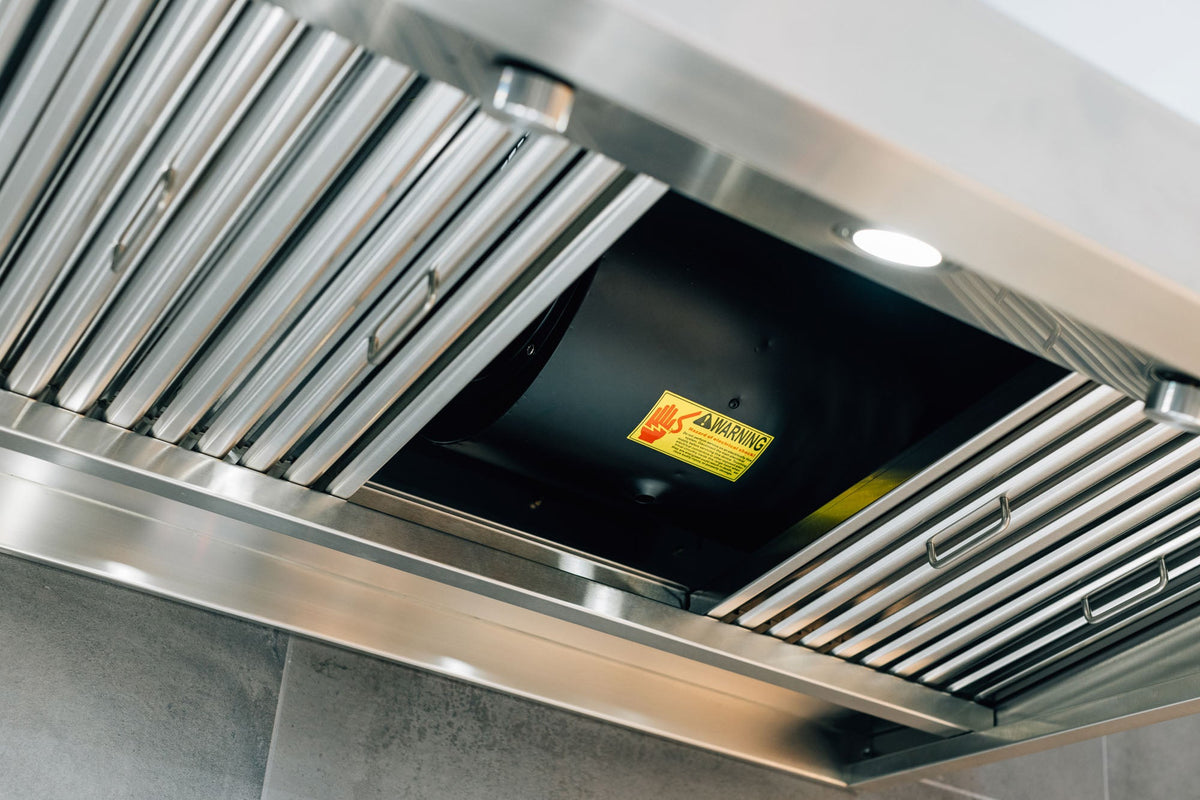

| Blower | Internal dual centrifugal motors |
| Speed Settings | 4-speed adjustable |
| Sound Level | 62 dB |
| Lighting | 4 LED lights with dimmer |
| Filters | Cleanable commercial-grade stainless steel baffle filters |
| Ducting | Two 8-inch round ducts; top or rear venting |
| Electrical | 120V / 60Hz (dedicated 15-amp circuit recommended) |
| Material | Double-lined #304 stainless steel |
| Mounting | Wall-mounted canopy with adjustable 1/2-inch mounting bracket |
| Recommended Mounting Height | 32 to 36 inches above the cooking surface |
| Warranty | Gold Standard Lifetime |
What's Included
- 48-inch outdoor rated vent hood
- Adjustable 1/2-inch mounting bracket
- Commercial-grade stainless steel baffle filters
- Owner's manual
- 4-inch or 8-inch spacer bracket, if selected above
Documents
Owner's Manual | Spacer Installation Guide | Duct Cover Installation Guide
Warranty: Summerset backs this vent hood with the Gold Standard Lifetime Warranty, covering the stainless steel construction for life against manufacturing defects. Motors, lighting, and wiring are covered for three years. Product registration must be completed with Summerset to validate coverage.
